HR-R 8-1

Near-field probe up to 40 GHz B-field

  • Short description
  • Technical parameters
Send enquiry Datasheet
  • HR-R 8-1, Near-field probe up to 40 GHz B-field

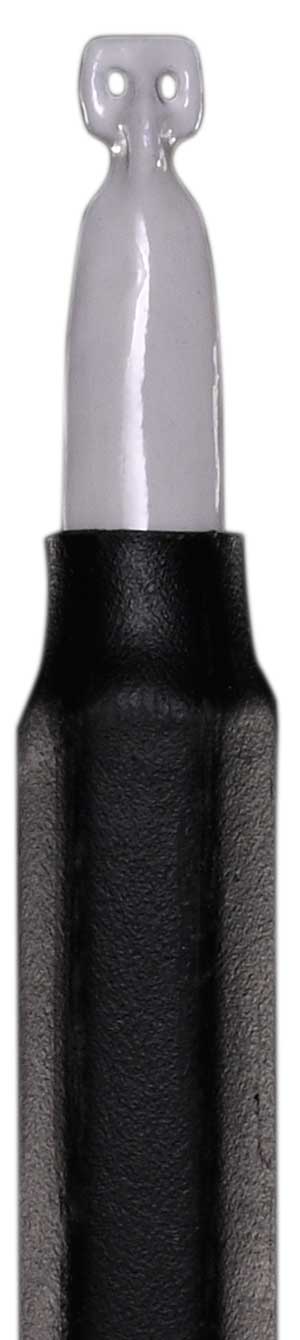

  • HR-R 8-1 B-Field probe head
    HR-R 8-1 B-Field probe head

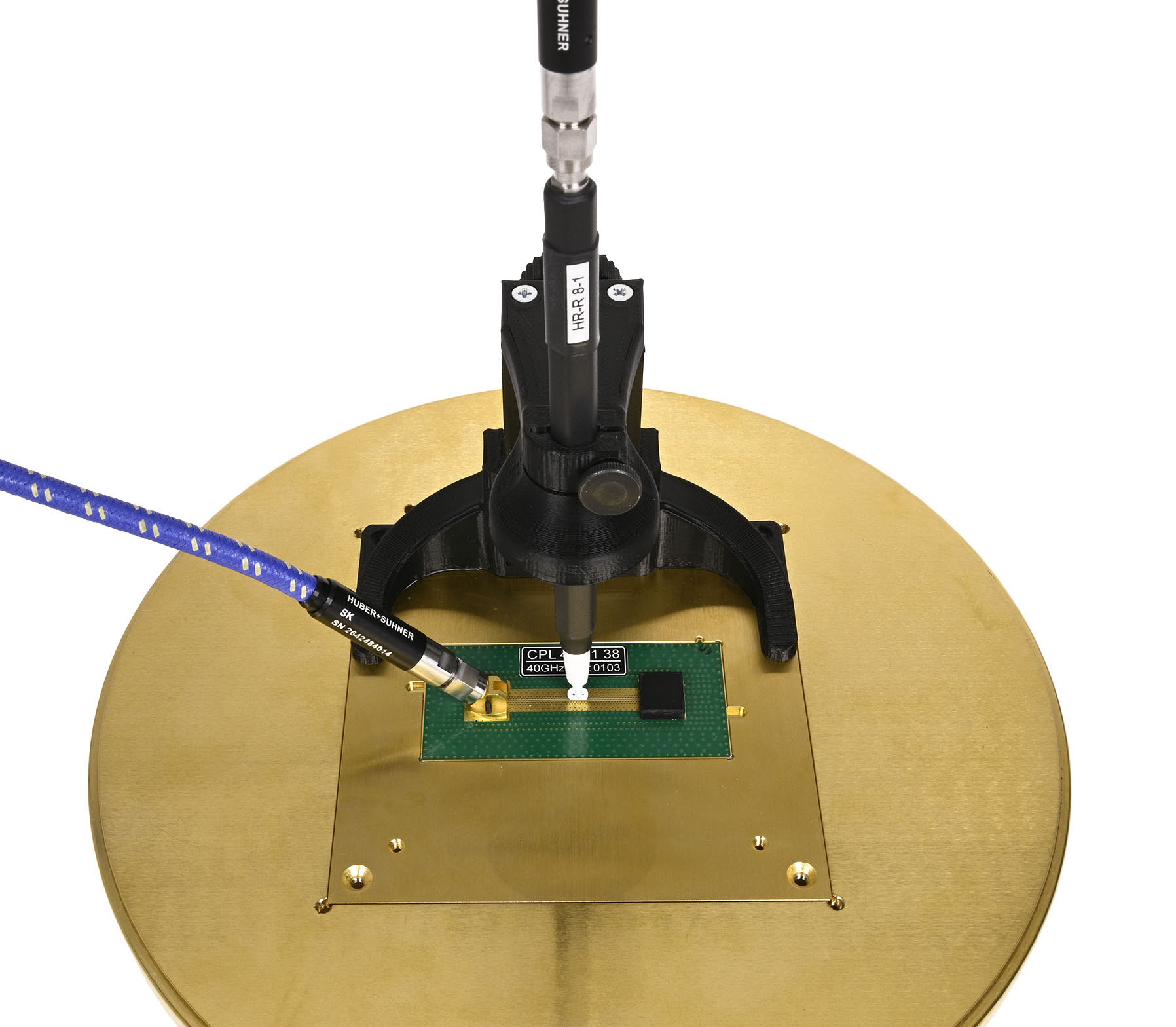

  • HR-R 8-1 B-Field probe with Probe Holder SH 02 over coplanar line CPL 40-01 38 in a test set up
    HR-R 8-1 B-Field probe with Probe Holder SH 02 over coplanar line CPL 40-01 38 in a test set up
HR-R 8-1, Near-field probe up to 40 GHz B-field HR-R 8-1 B-Field probe head HR-R 8-1 B-Field probe with Probe Holder SH 02 over coplanar line CPL 40-01 38 in a test set up
  • HR-R 8-1, Near-field probe up to 40 GHz B-field
  • HR-R 8-1 B-Field probe head
  • HR-R 8-1 B-Field probe with Probe Holder SH 02 over coplanar line CPL 40-01 38 in a test set up
Short description

The HR-R 8-1 is a passive near-field probe for measuring magnetic fields up to 40 GHz.
The measuring tip is decoupled from the cable shield by special damping systems. In addition, the probe contains a current attenuator. The probe has a internal matching network to 50 ohm.

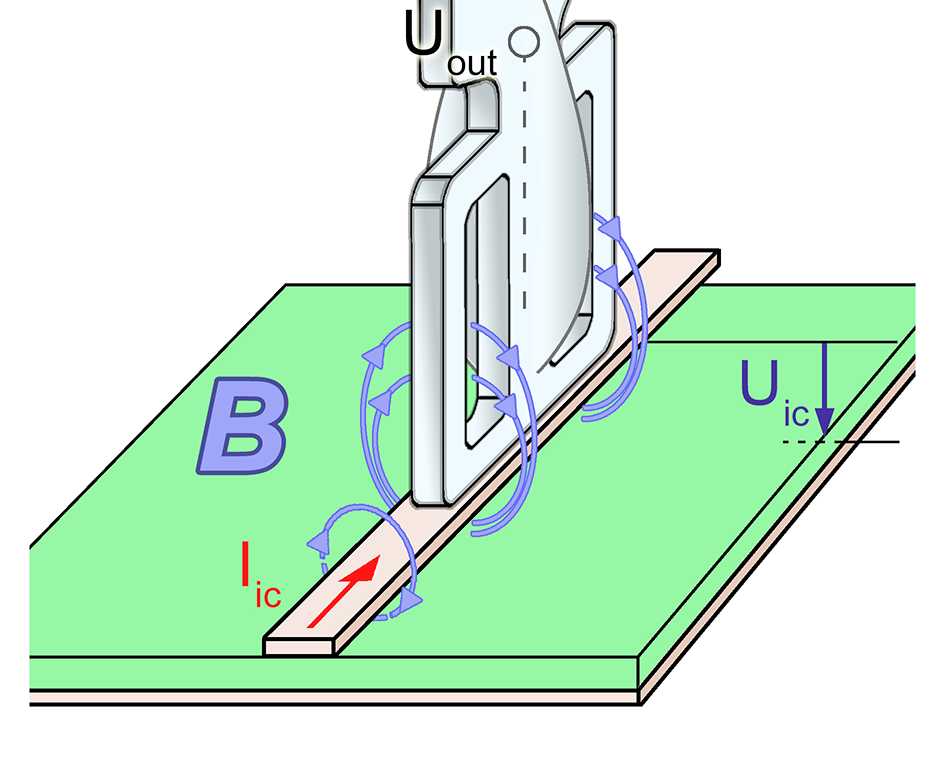

The special probe head of the HR near-field probe enables magnetic field measurements to be taken directly on IC pins or individual conductor tracks to localize B-field sources.

Technical parameters
upper cut-off frequency 40 GHz
Output resistance 50 Ω
Connector - output 2.92 mm (K), female, jack
Weight 19 g
Sizes (L x W x H) (147 x 9 x 9) mm
Frequency response Frequency response Frequency response
Correction curve Correction curve Correction curve
Measuring principles Measuring principles Measuring principles
