With the PCB measuring stations you can measure electric or magnetic fields of the ESD generator directly and without any side effects.
-

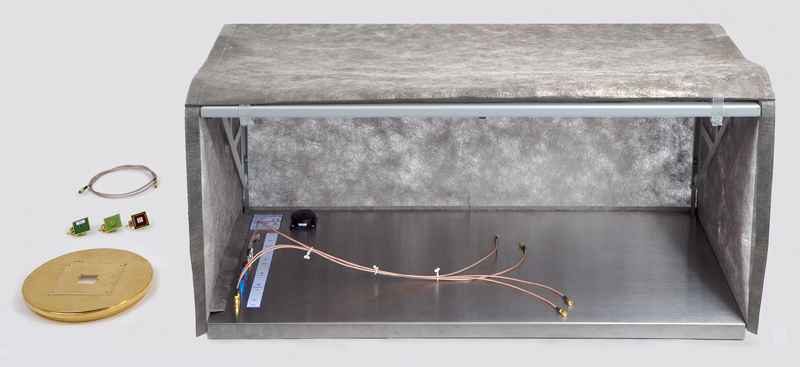

MP ESD Field set
Measurement of ESD Generator Fields
The MP ESD measuring field set is used to measure electric and magnetic fields of an ESD generator. In addition to the testing pulse, the ESD generators also emit electric and magnetic interference fields. Additionally to the test pulse these interference fields influence the device under test. Thes…
-

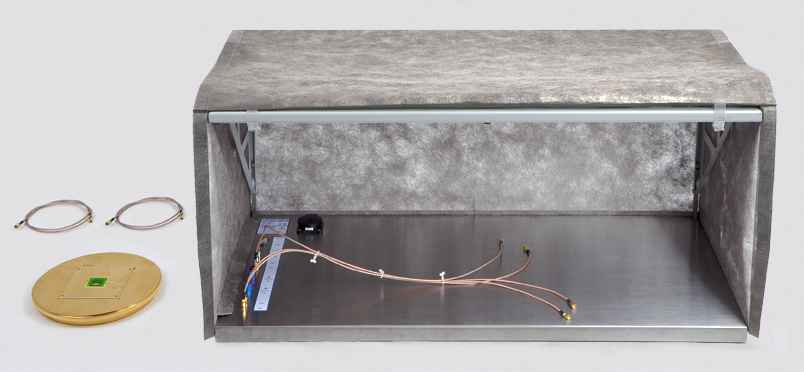

MP ESD Generator Calibration set
Measurement of the Discharge Current Waveform
The MP ESD generator calibration set measuring station measures the curve shape of an ESD generator discharge current. Furthermore, transient processes in the discharge current curve shape can be measured and visualized in the frequency range up to 3 GHz. During testings, these transient processes h…
-

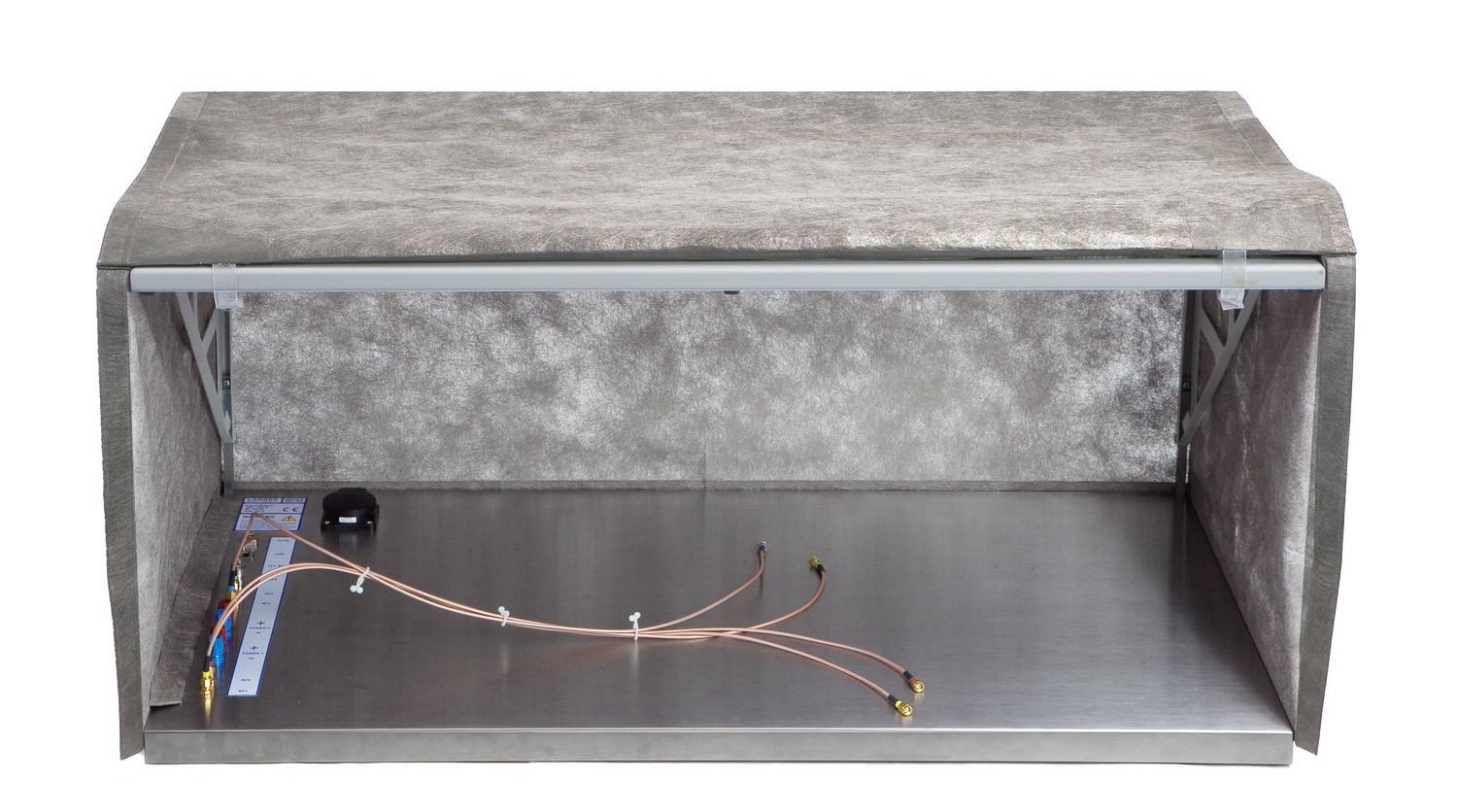

MP Scope set
EMC Measurement with an Oscilloscope
The MP Scope measuring station is a mobile shielded room (shielded tent) for sensitive measuring devices during Burst-/EFT- or RF testings at the work place of a developer. The measuring device (oscilloscope, spectrum analyzer) is put into the shielded tent. The connection to the disturbed environm…
