HR-E 40-1 set
Near-Field Probe Set up to 40 GHz E-field

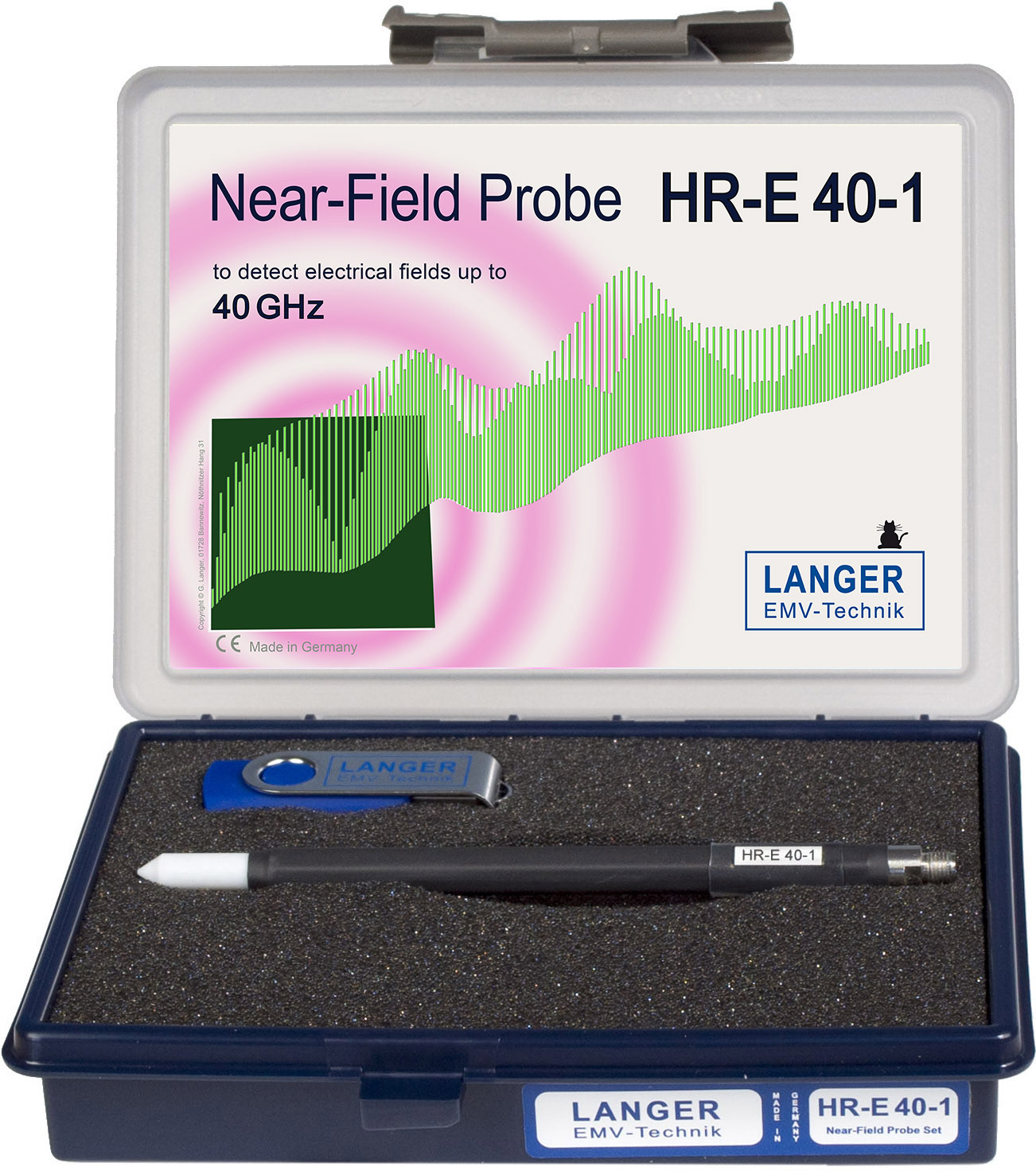

![HR-E 40-1 set, Near-Field Probe Set up to 40 GHz E-field](/fileadmin/Bilder300/2022.09.13-HR-E-40-1-case_web.jpg?v=1721026804401)

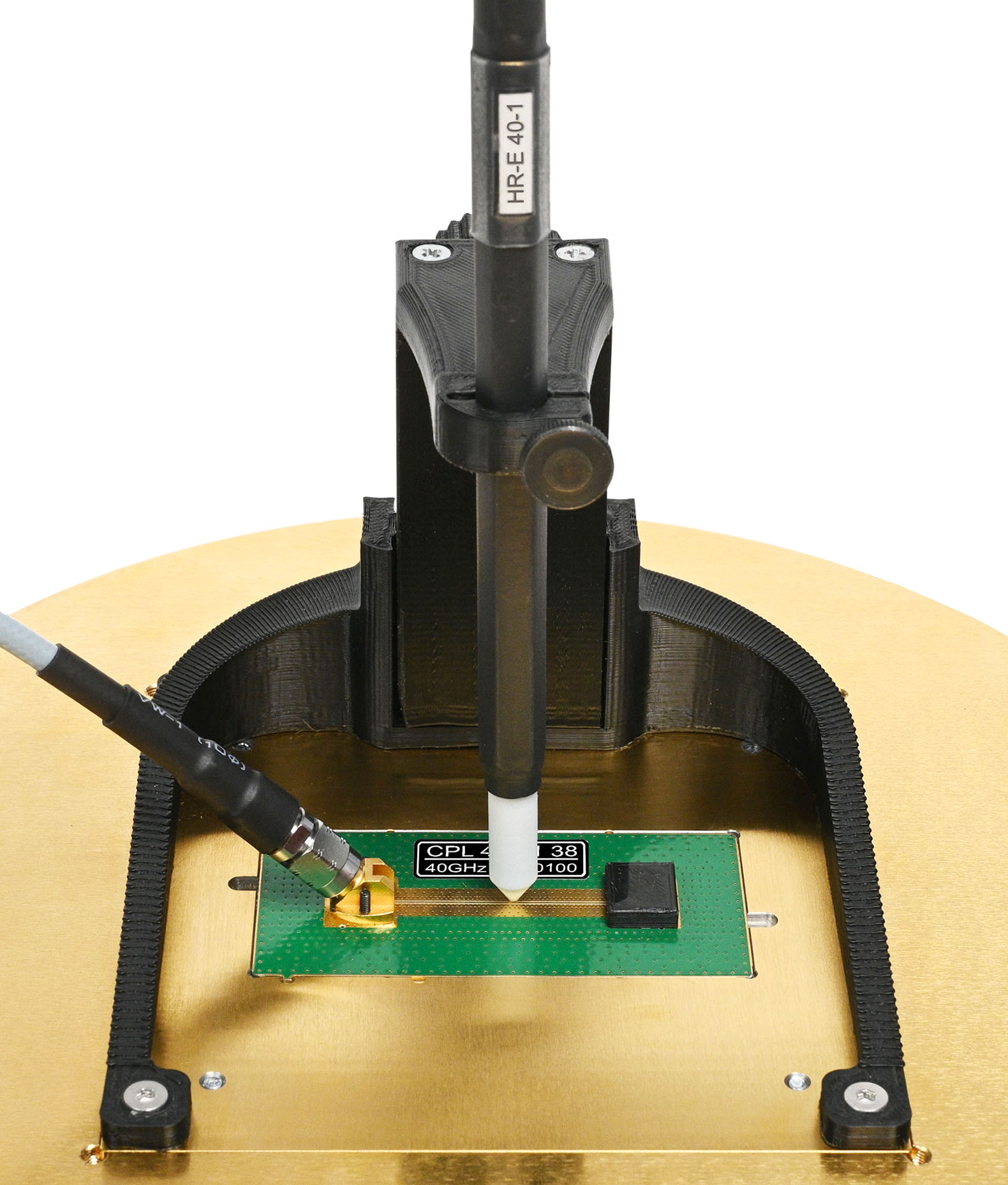

![Measurement setup E-field probe HR-E 40-1 on 40 GHz coplanar line](/fileadmin/Bilder300/2022.03.16 HR-E 40-1_CPL 40-01 38_Messaufbau_Ausschnitt_6021.jpg?v=1721026806847)
Short description
The HR-E 40-1 set contains the HR-E 40-1 E-field probe. With this field probe measurements up to 40 GHz can be performed.

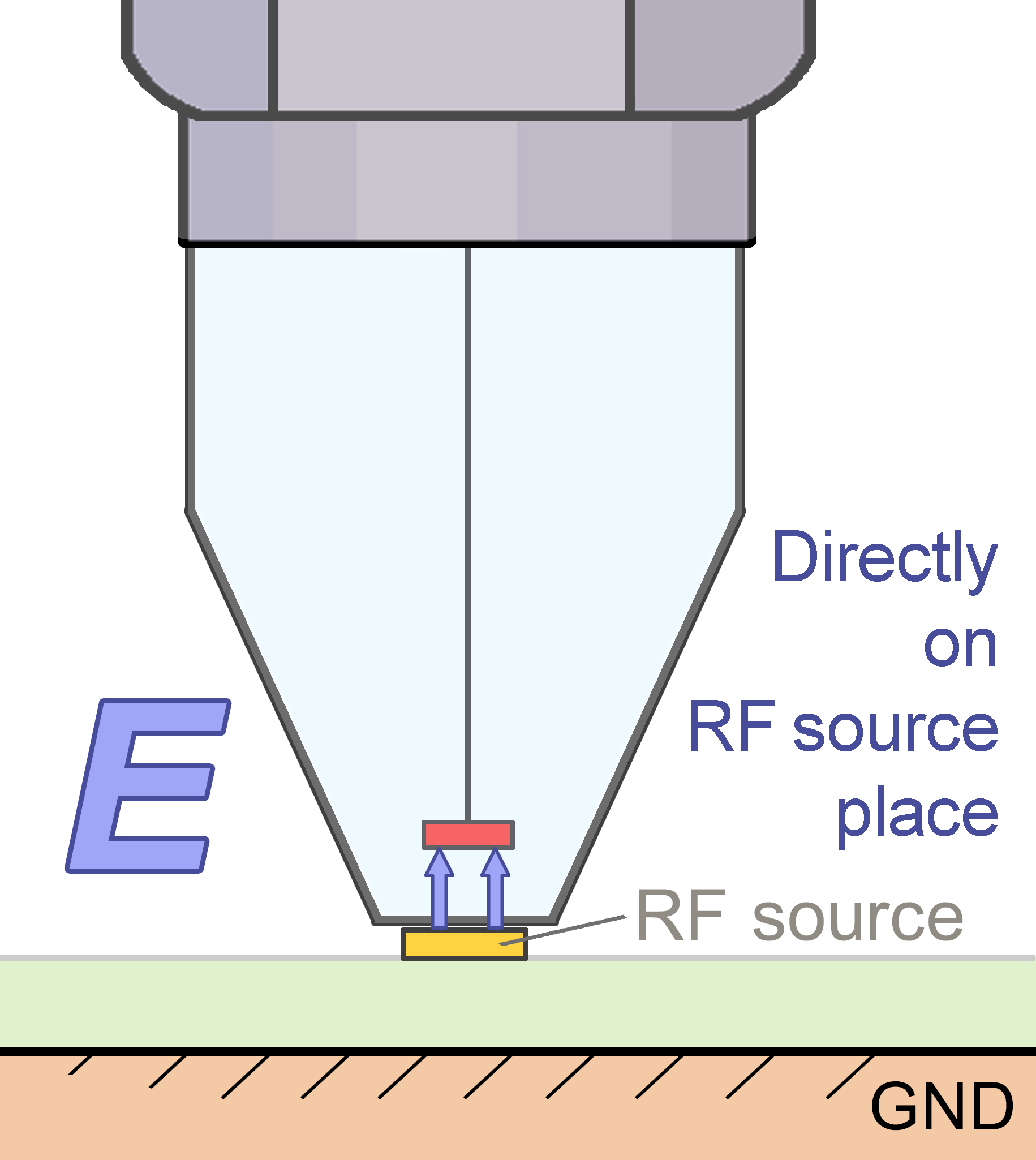

The special probe head of the HR near-field probe enables measurements to be taken directly on individual conductor tracks to localize E-field sources.
Scope of delivery
- 1x HR-E 40-1, E-Field Probe up to 40 GHz
- 1x CS-ESA Viewer, ChipScan-ESA Viewer Software / USB
- 1x HR-E char, HR-E 40-1 Characteristic
- 1x HR-E 40-1 m, User manual
- 1x Case 4, System Case Near-Field Probes
Recommended products
Technical parameters
upper cut-off frequency | 40 GHz |
Resolution | 0.2 mm |
Connector - output | 2.92 mm (K), female, jack |
