HR-R 8-1

Send enquiry Datasheet
  • HR-R 8-1
  • HR-R 8-1 B-Field probe head

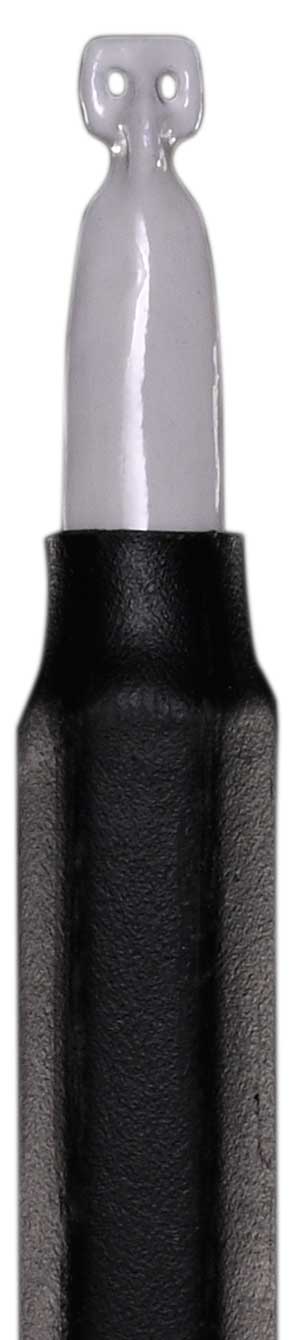

    HR-R 8-1 B-Field probe head
  • HR-R 8-1 B-Field probe with Probe Holder SH 02 over coplanar line CPL 40-01 38 in a test set up

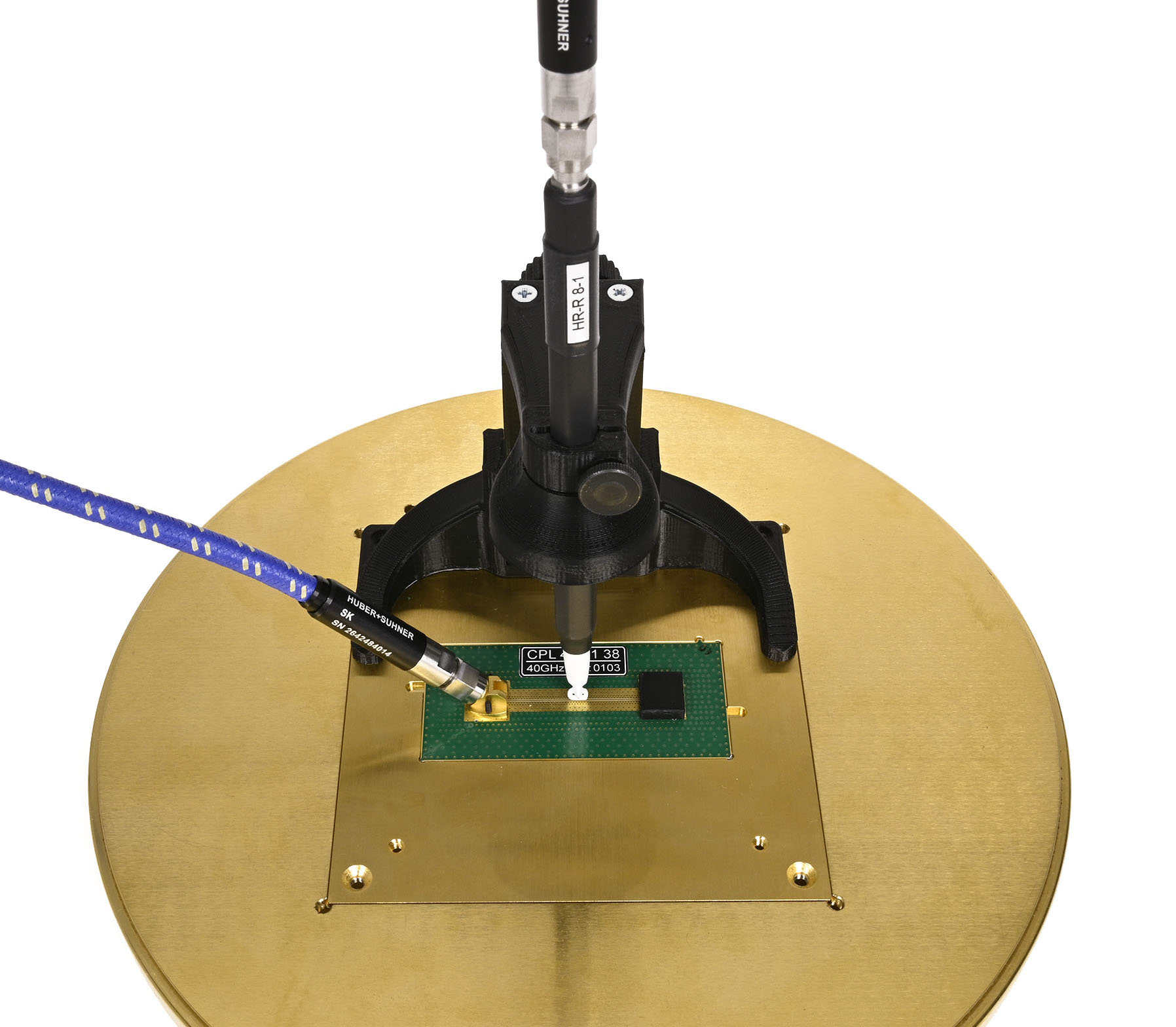

    HR-R 8-1 B-Field probe with Probe Holder SH 02 over coplanar line CPL 40-01 38 in a test set up
HR-R 8-1 HR-R 8-1 B-Field probe head HR-R 8-1 B-Field probe with Probe Holder SH 02 over coplanar line CPL 40-01 38 in a test set up
  • HR-R 8-1
  • HR-R 8-1 B-Field probe head
  • HR-R 8-1 B-Field probe with Probe Holder SH 02 over coplanar line CPL 40-01 38 in a test set up

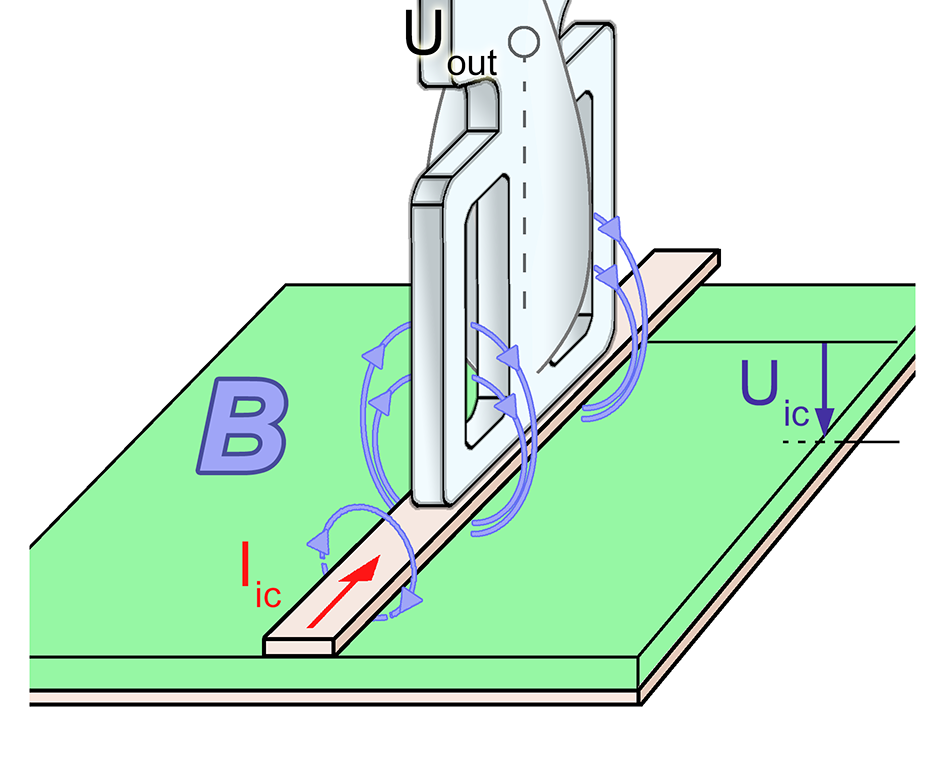

The special probe head of the HR near-field probe enables magnetic field measurements to be taken directly on IC pins or individual conductor tracks to localize B-field sources.

Technical parameters

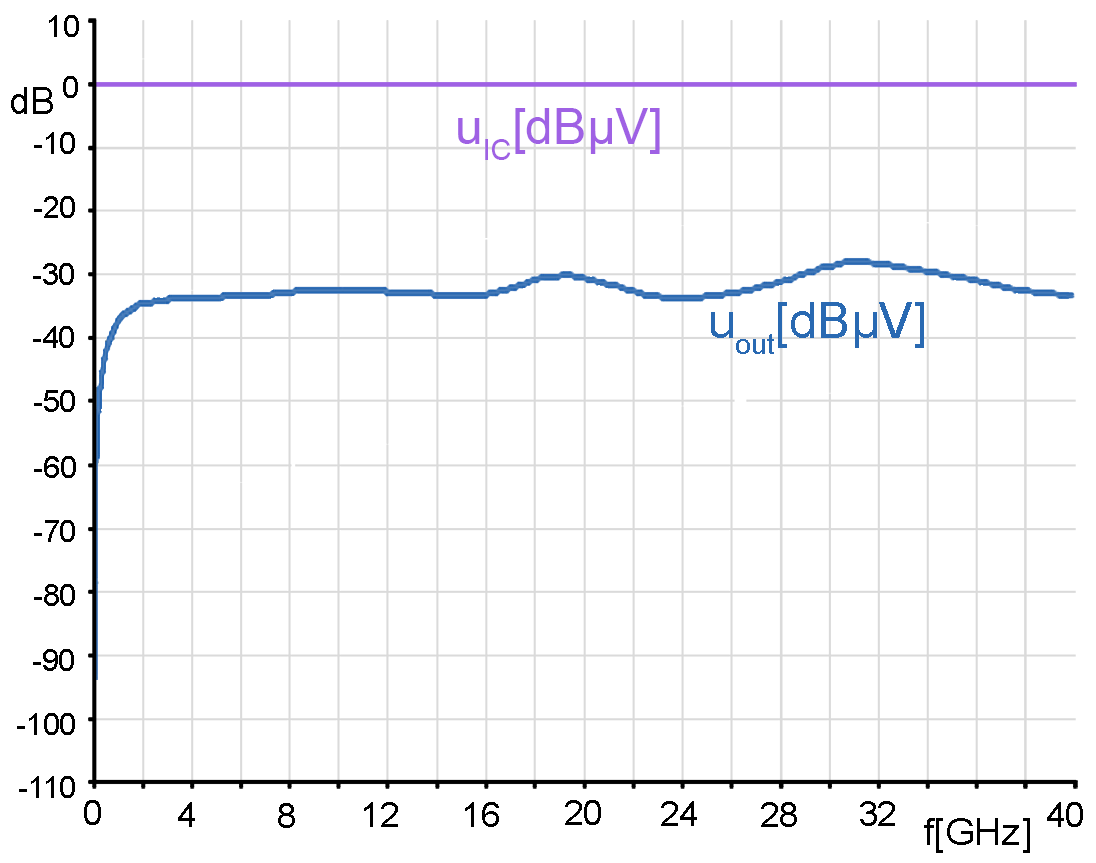

频率特性 校正曲线
upper cut-off frequency 40 GHz
输出电阻 50 Ω
输出接口 2.92 mm (K), female, jack
重量 19 g
尺寸 (L x W x H) (147 x 9 x 9) mm
频率特性 频率特性

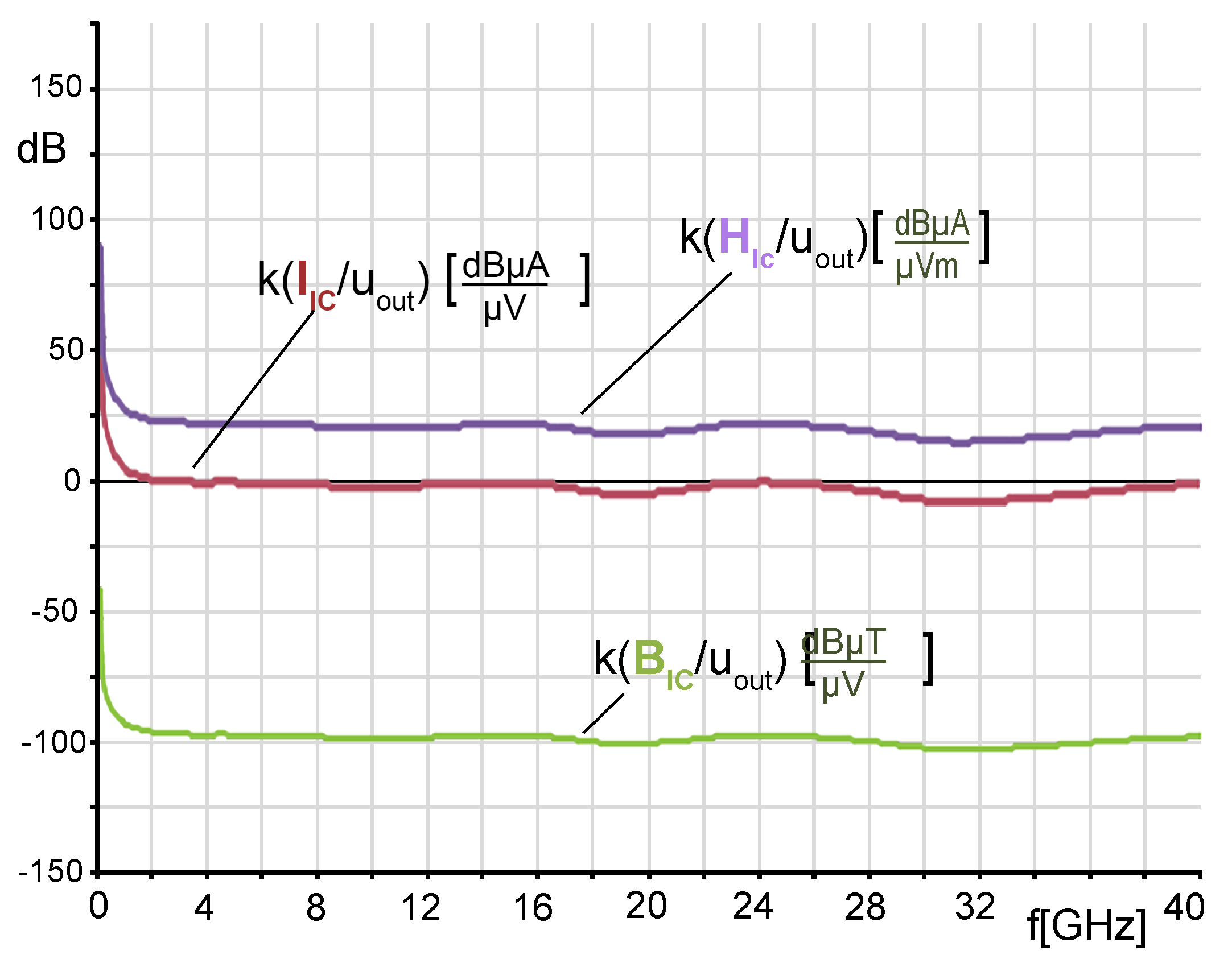

校正曲线 校正曲线
