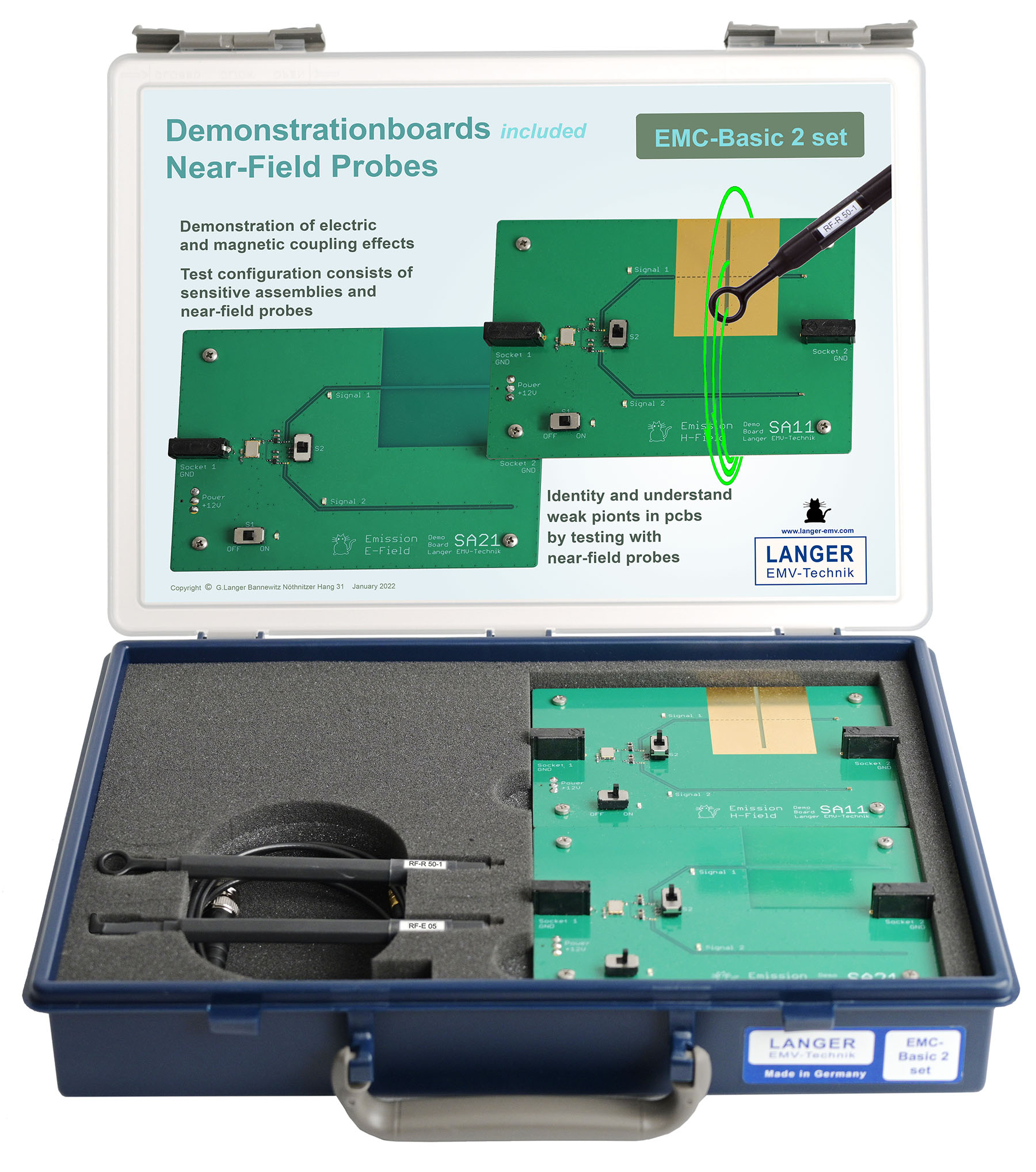

EMC-Basic 2 set
-
-

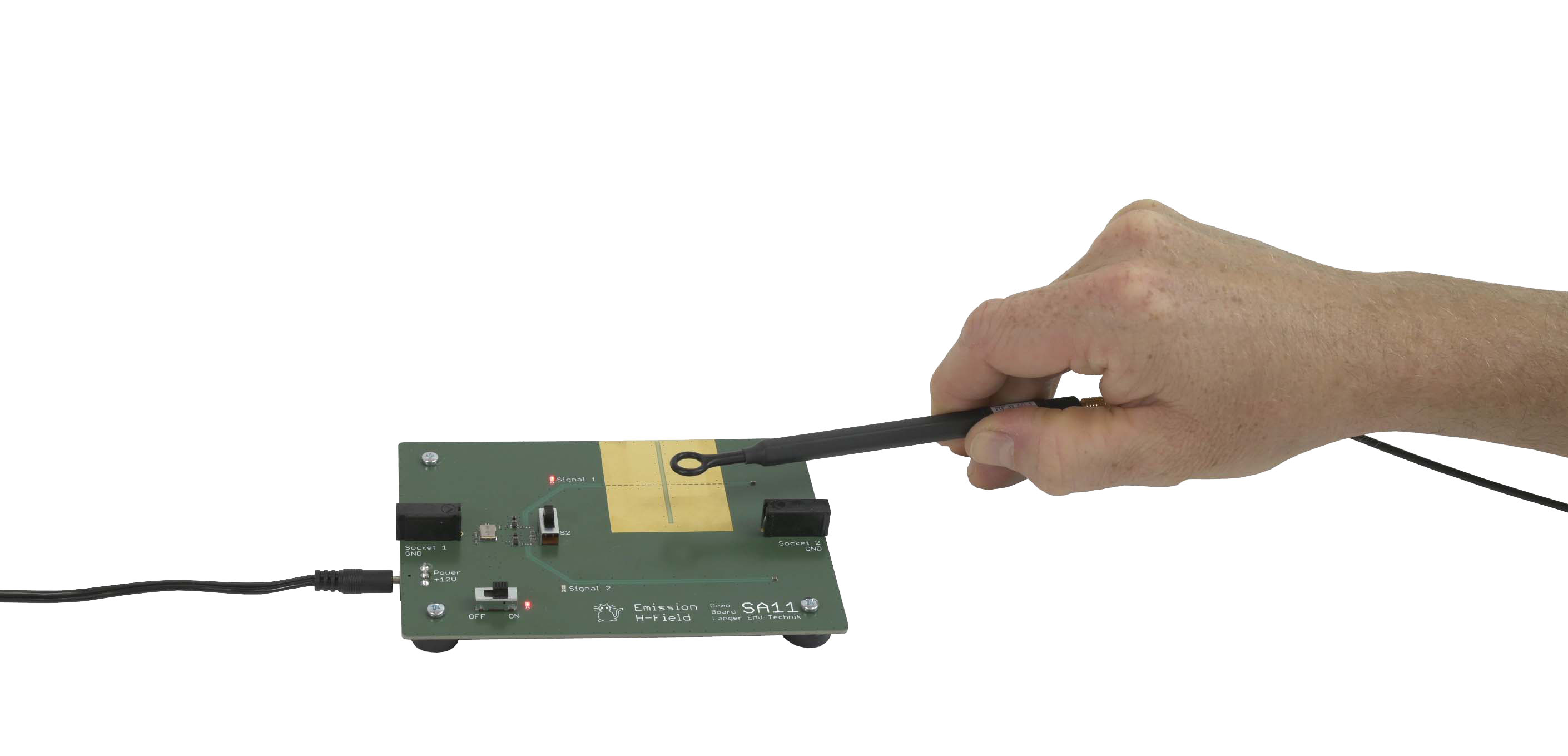

Detection of emitted interference - RF-R 50-1 magnetic field probe via SA 11 demonstration board -
Detection of emitted interference - RF-E 05 E-field probe via demonstration board SA 21 -

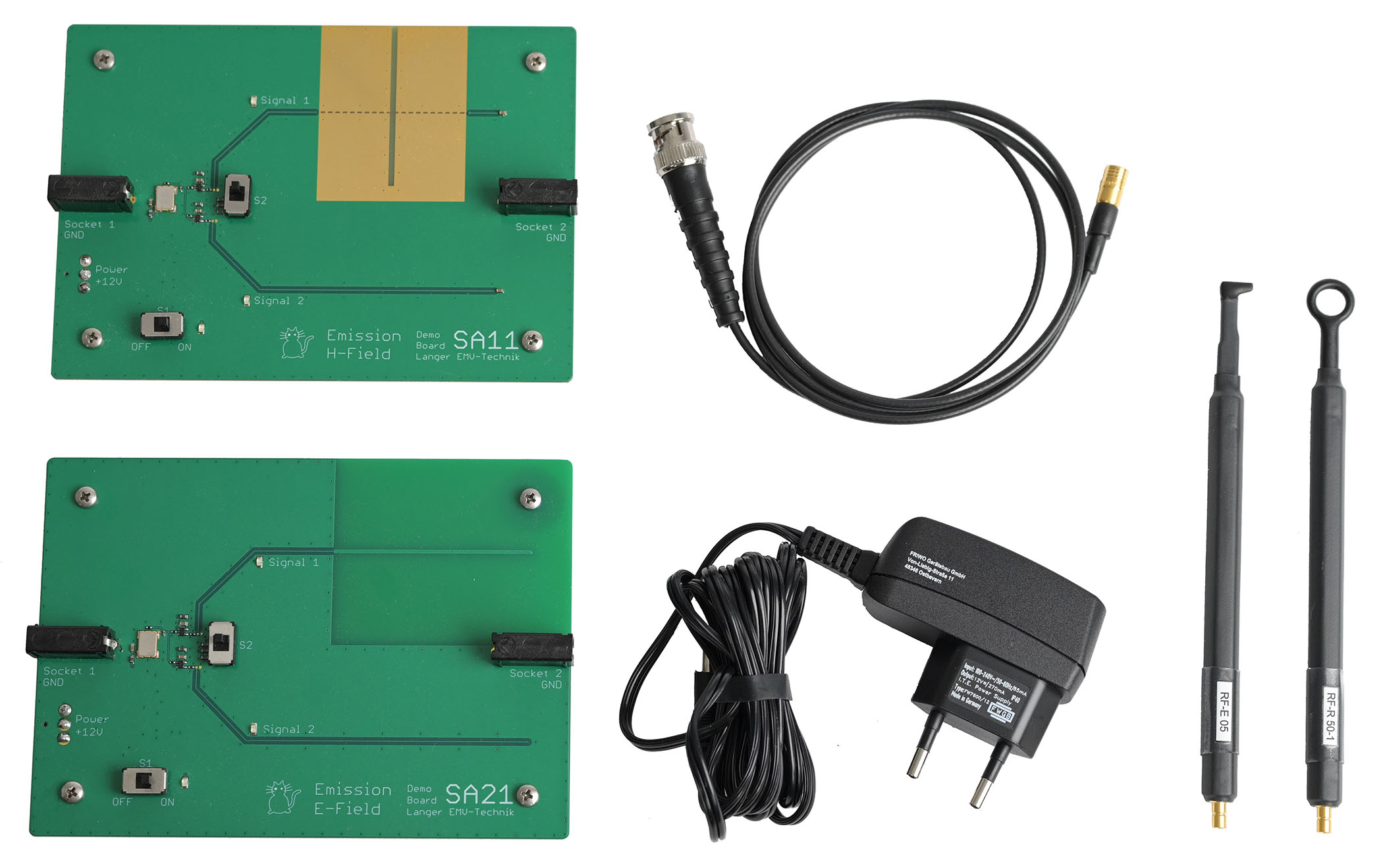

Scope of Delivery EMC-Basic 2 set -
![EMC-Basic 2 set](/fileadmin/Bilder300/2022.01.25 EMC-Basic 2 set_Case_DSC_0723.jpg?v=1729062004308)
![Detection of emitted interference - RF-R 50-1 magnetic field probe via SA 11 demonstration board](/fileadmin/Bilder300/SA11 mit RF R50.jpg?v=1729062006819)
![Detection of emitted interference - RF-E 05 E-field probe via demonstration board SA 21](/fileadmin/Bilder300/SA21 mit RF-E 05.jpg?v=1729062006819)
![Scope of Delivery EMC-Basic 2 set](/fileadmin/Bilder300/2022.01.25 EMC-Basic 2 set_LU_DSC_0638.jpg?v=1729062006819)
Delivery content
- 1x SA 11
- 1x SA 21
- 1x RF-R 50-1, 磁场探头(30MHz-3GHz)
- 1x RF-E 05, 电场探头(30MHz-3GHz)
- 1x SMB-BNC 1 m, SMB-BNC 测量电缆
- 1x NT FRI EU
- 1x LK 25 cm rt, LK 25cm rt 测试引线
- 1x LK 25 cm bl, LK 25cm bl测试引线
- 1x A4 case
Recommended products
Delivery content details
-
SA 11
-
SA 21
-
RF-R 50-1
磁场探头(30MHz-3GHz)
RF-R 50-1型磁场探头适于在约3cm距离以内测量模块、设备或电缆。这种磁场探头能够识别出大型元器件是否为潜在的干扰源。
-
RF-E 05
电场探头(30MHz-3GHz)
RF-E 05探头顶端的电极仅有0.5mm宽,可以非常准确地定位主频线、IC引脚或者较小元件产生的电场。
