RF4-E set
Near-Field Probes E-field 30 MHz up to 3 GHz
-
-
Application RF-E05 -

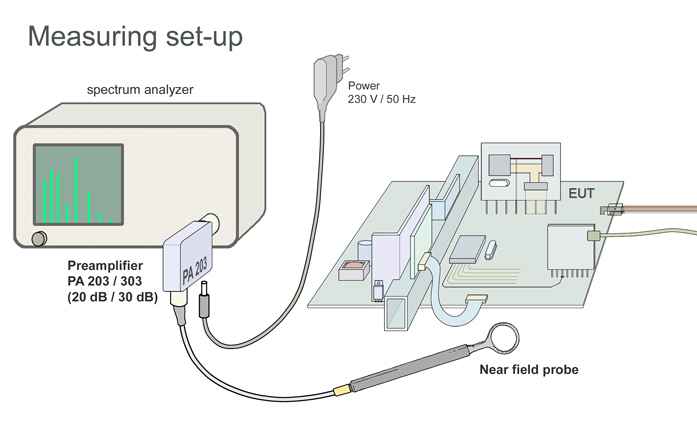

Measurement set-up near-field probes
Short description
The RF4-E probe set contains two passive E field probes to measure electrical fields with a frequency range from 30 MHz up to 3 GHz for comparison purposes.
The probes are designed for the analysis of E field distributions, detection of coupling mechanisms on modules and evaluation of switching edges on signal leads and RF voltages of the supply system.
The near-field probes are small and handy. They have a current attenuating sheath and, therefore, are electrically shielded. The near-field probes can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. They do not have an internal terminating resistance.
Scope of delivery

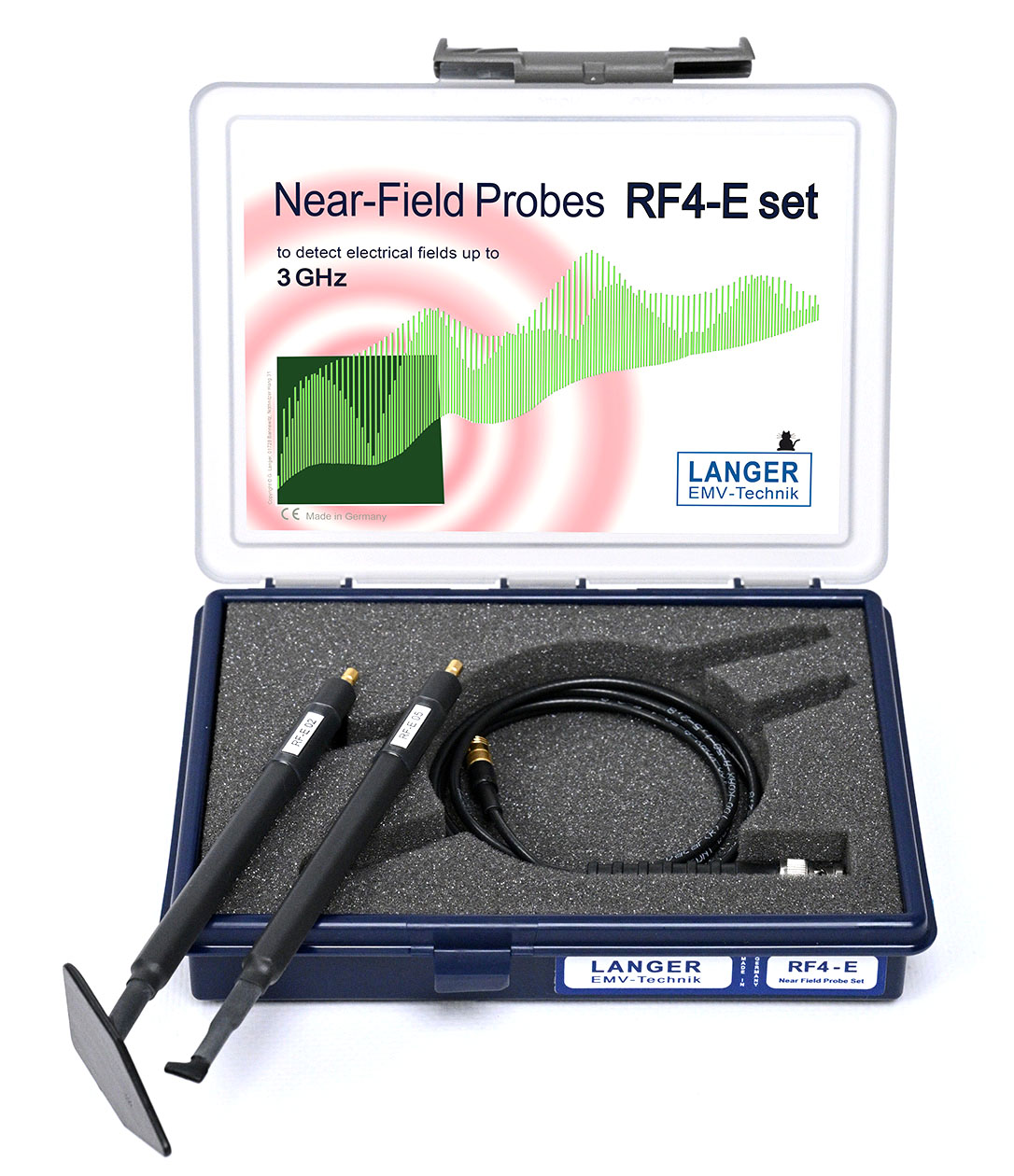

- 1x RF-E 02, E-Field Probe 30 MHz up to 1.5 GHz
- 1x RF-E 05, E-Field Probe 30 MHz up to 3 GHz
- 1x SMB-BNC 1 m, SMB-BNC Measurement Cable
- 1x Case 2, System Case Near Field Probes for 2 Probes
Recommended products
Technical parameters
| Frequency range | 30 MHz ... 3 GHz |
| Connector | SMB, male, jack |
Scope of delivery details
-
RF-E 02
E-Field Probe 30 MHz up to 1.5 GHz
The RF-E 02 near-field probe detects electrical fields that are decoupled from bus structures, larger components or supply surfaces. The electrode surface on the underside of the probe tip is approx. 2 cm x 5 cm. The probe functions best within distances of 1 cm - 2 cm from the component.
-
RF-E 05
E-Field Probe 30 MHz up to 3 GHz

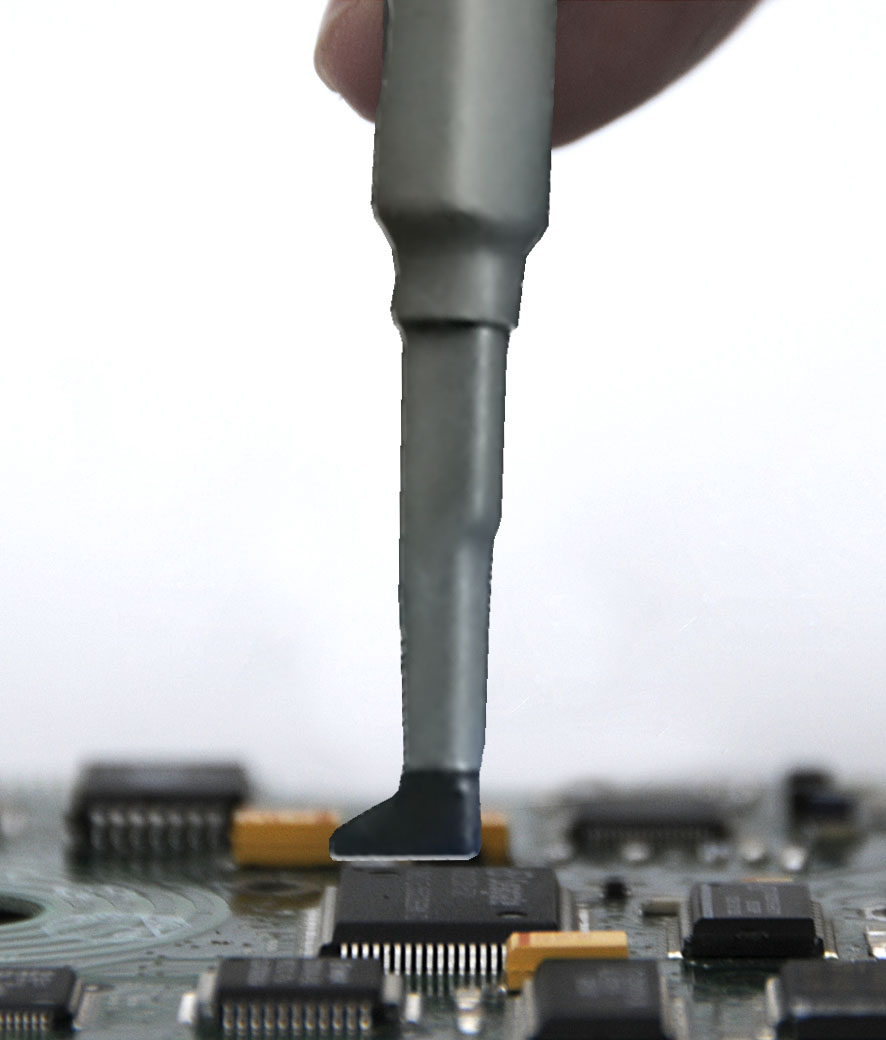

The electrode at the underside of the probe head of the RF-E 05 has a width of approx. 0.5 mm. The E-fields of clocked lines, IC pins, and smaller components are precisely located. The RF-E 05 probe was developed for Langer scanner.
-
SMB-BNC 1 m
SMB-BNC Measurement Cable

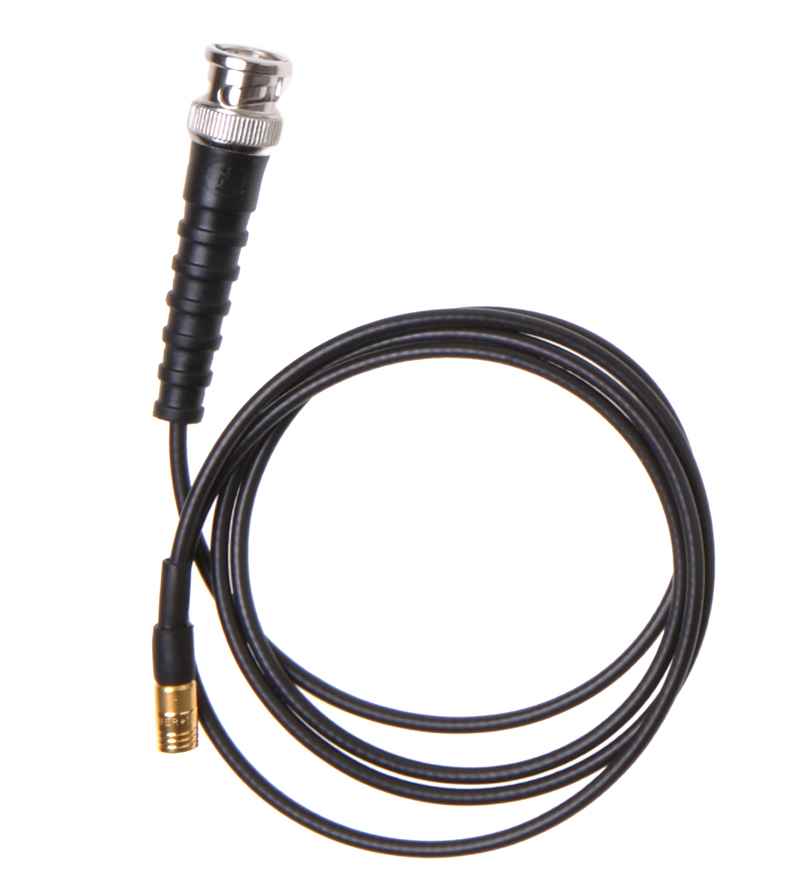

The "SMB-BNC 1 m" measuring cable is a RG174 RF cable with coaxial construction. The wave impedance is 50 ohm. The measuring cable is highly flexible and therefore specially suitable for measurements with near-field probes.
