HR-R 8-1 set
Near-Field Probe Set up to 40 GHz B-field

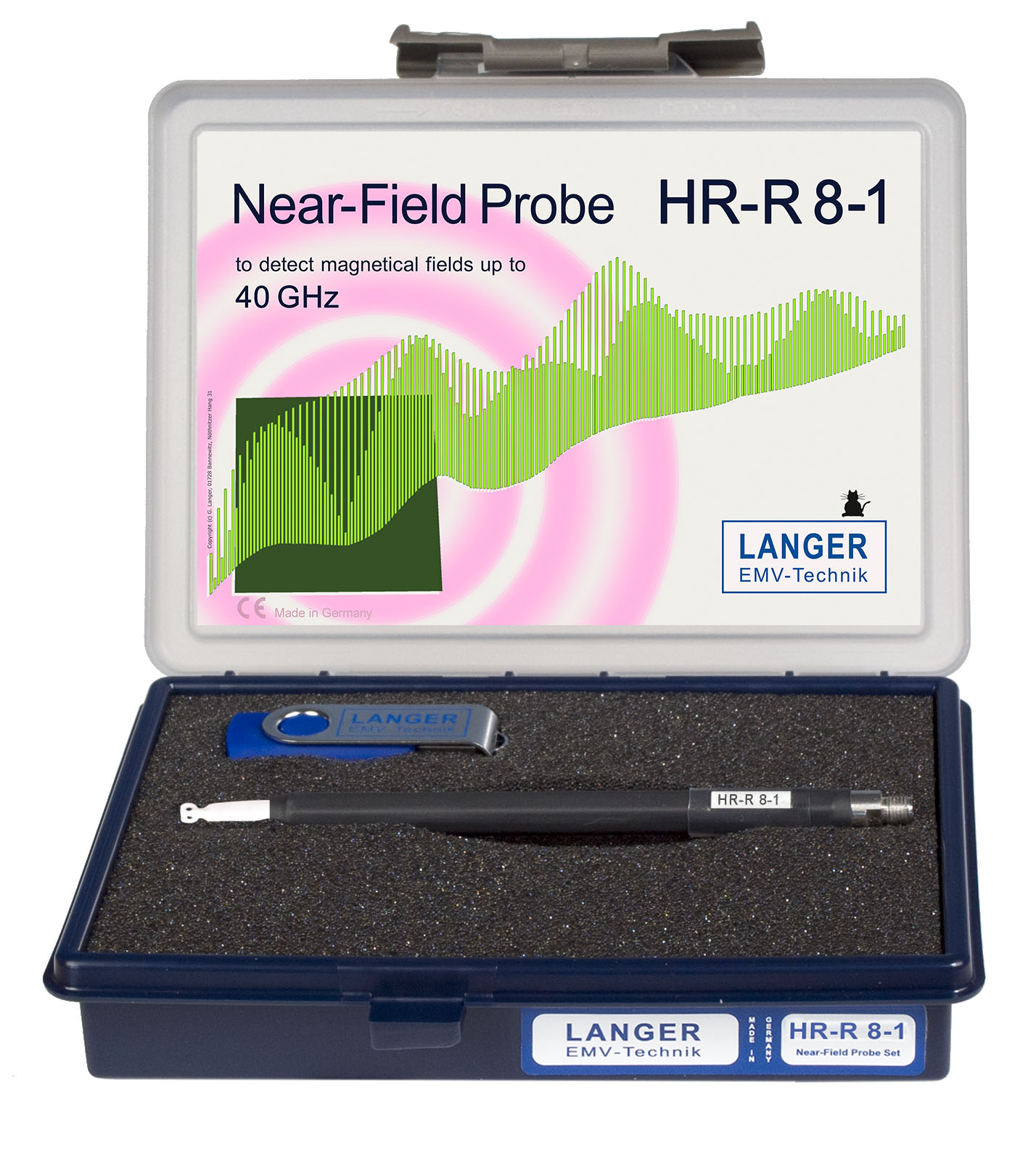

![HR-R 8-1 set, Near-Field Probe Set up to 40 GHz B-field](/fileadmin/Bilder300/2022.06.09 HR-R 8-1 Koffer_02281436_S011.jpg?v=1725087604442)

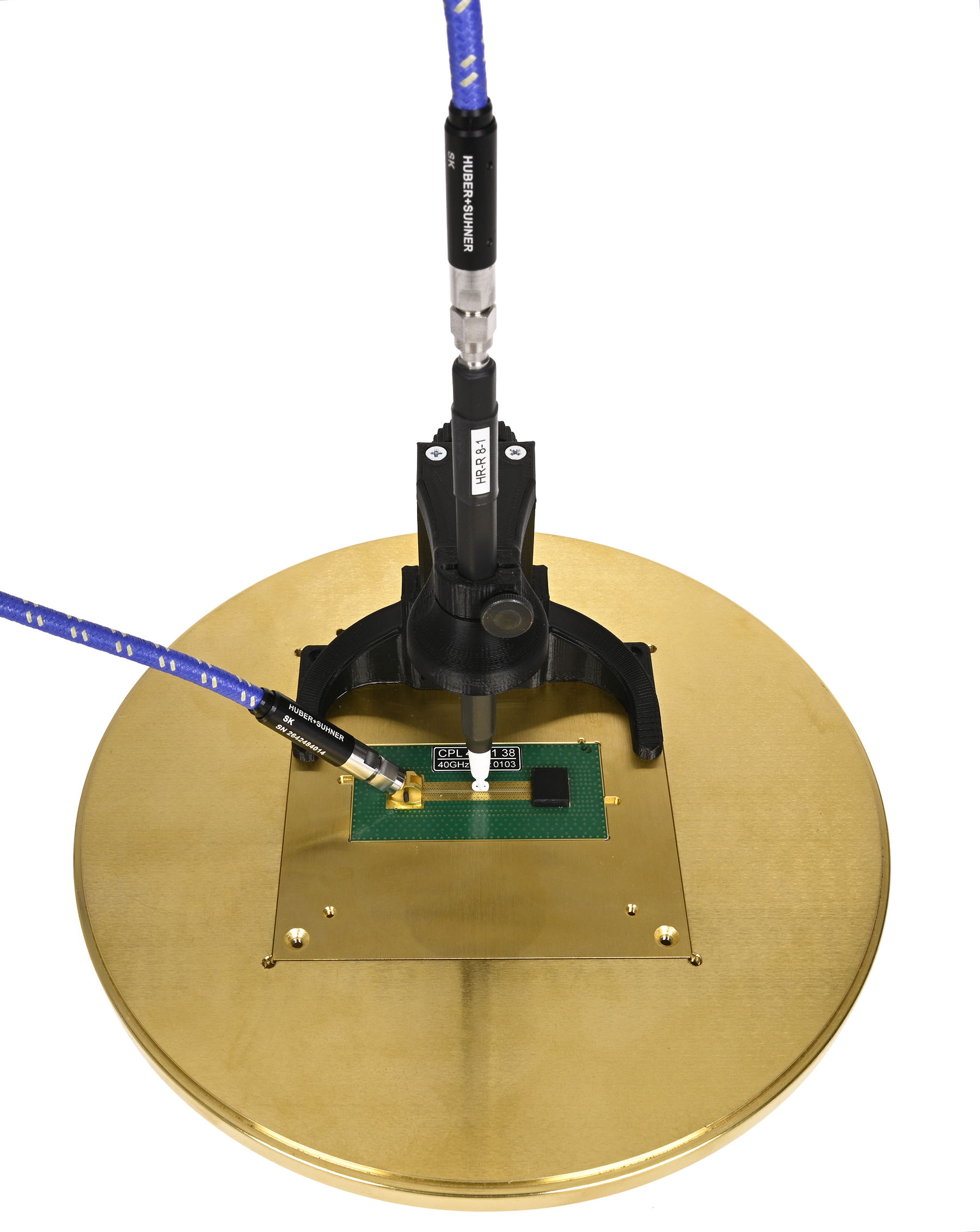

![Measurement setup B-field probe HR-R 8-1 over 40 GHz coplanar line](/fileadmin/Bilder300/2022.11.24 HR-R 8-1_with Probe Holder SH 02 and Coplanar line CPL 40-01 38 in a test set up with GND 25_DSC1855.jpg?v=1725087606944)
Short description
The HR-R 8-1 set contains the HR-R 8-1 B field probe. With this probe magnetic field measurements up to 40 GHz can be performed. The special probe head of the HR-R 8-1 allows measurements on IC’s, circuit board structures and components for the localization of high frequency magnetic fields.
Scope of delivery
- 1x HR-R 8-1, Near-field probe up to 40 GHz B-field
- 1x CS-ESA Viewer, ChipScan-ESA Viewer Software / USB
- 1x HR-R char, HR-R 8-1 Characteristic
- 1x HR-R 8-1 m, User manual
- 1x Case 4, System Case Near-Field Probes
Recommended products
Technical parameters
upper cut-off frequency | 40 GHz |
Connector - output | 2.92 mm (K), female, jack |
