P250 set
EFT/Burst Injection up to 6 kV
-
-

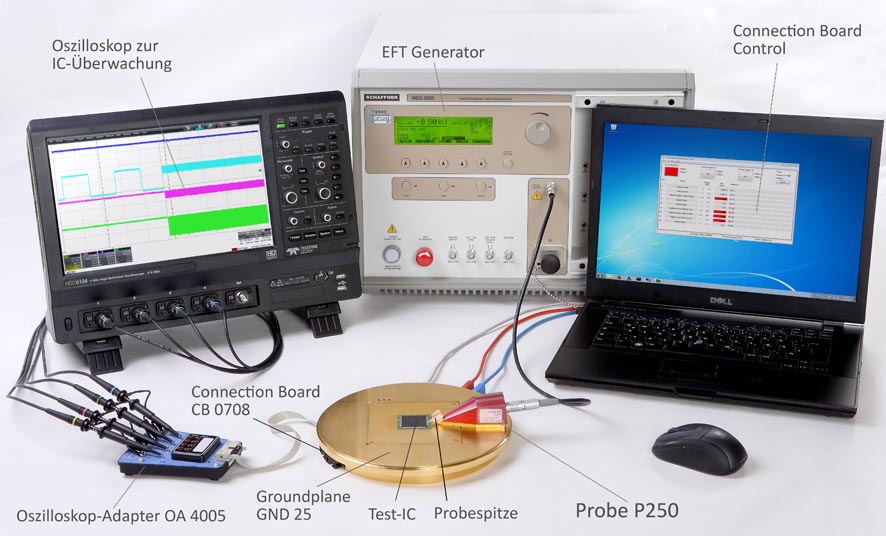

Measurment set-up with P250 -

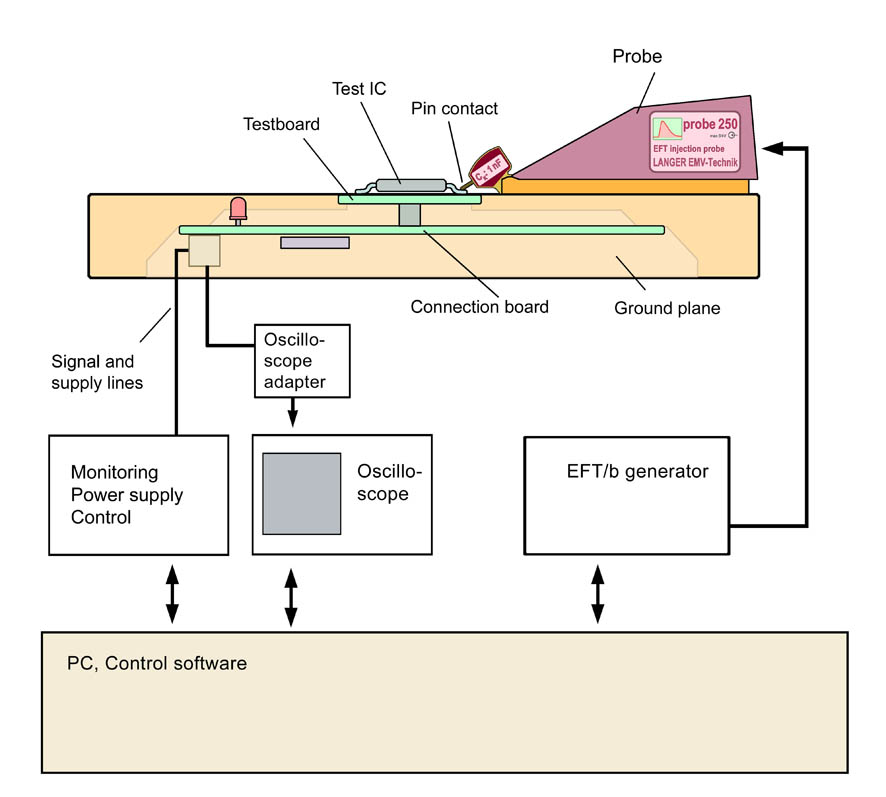

Scheme measurement set-up -
Scope of delivery Set 250
Short description
The P250 probe is used for direct-contact measurements of impulse immunity in IC pins, according to IEC 62215-3 and IEC 61000-4-4. Knowledge of impulse immunity parameters through use of the P250 probe makes optimization of the IC and definition of application requirements possible. The probe P250 has interchangeable heads, which allows for coupling capacity to be changed.
The included power cable is terminated with a Fischer-connector. Alternatively, the connecting cable can be ordered with an SHV connector instead of the Fischer connector.

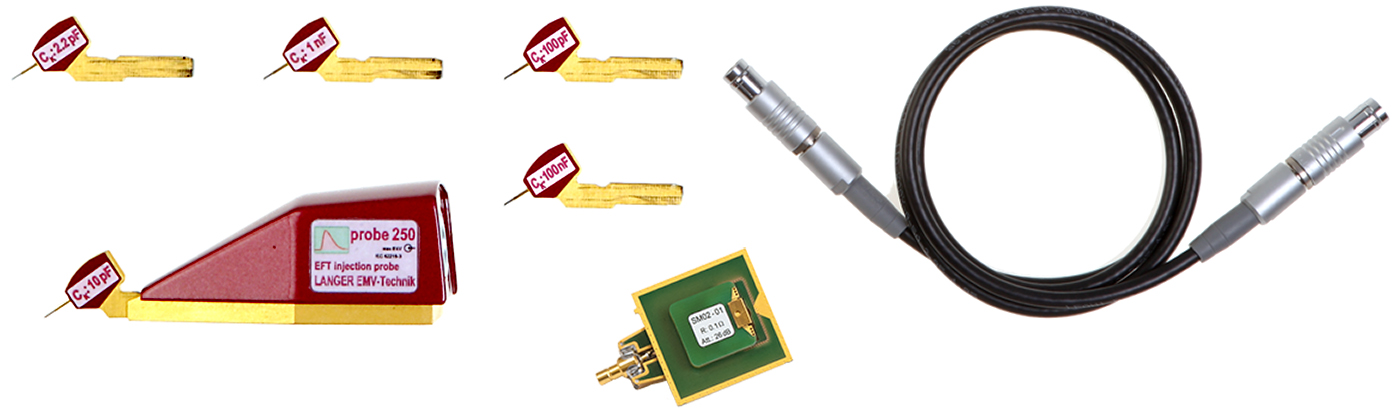

Scope of delivery
- 1x P250, EFT Coupling Network
- 1x TS 250-2.2p, Probe Tip 2.2 pF
- 1x TS 250-10p, Probe Tip 10 pF
- 1x TS 250-1n, Probe Tip 1 n
- 1x TS 250-100p, Probe Tip 100 pF
- 1x TS 250-100n, Probe Tip 100 nF
- 1x HV FI-FI 1 m, High-Voltage Cable, Fischer-Fischer

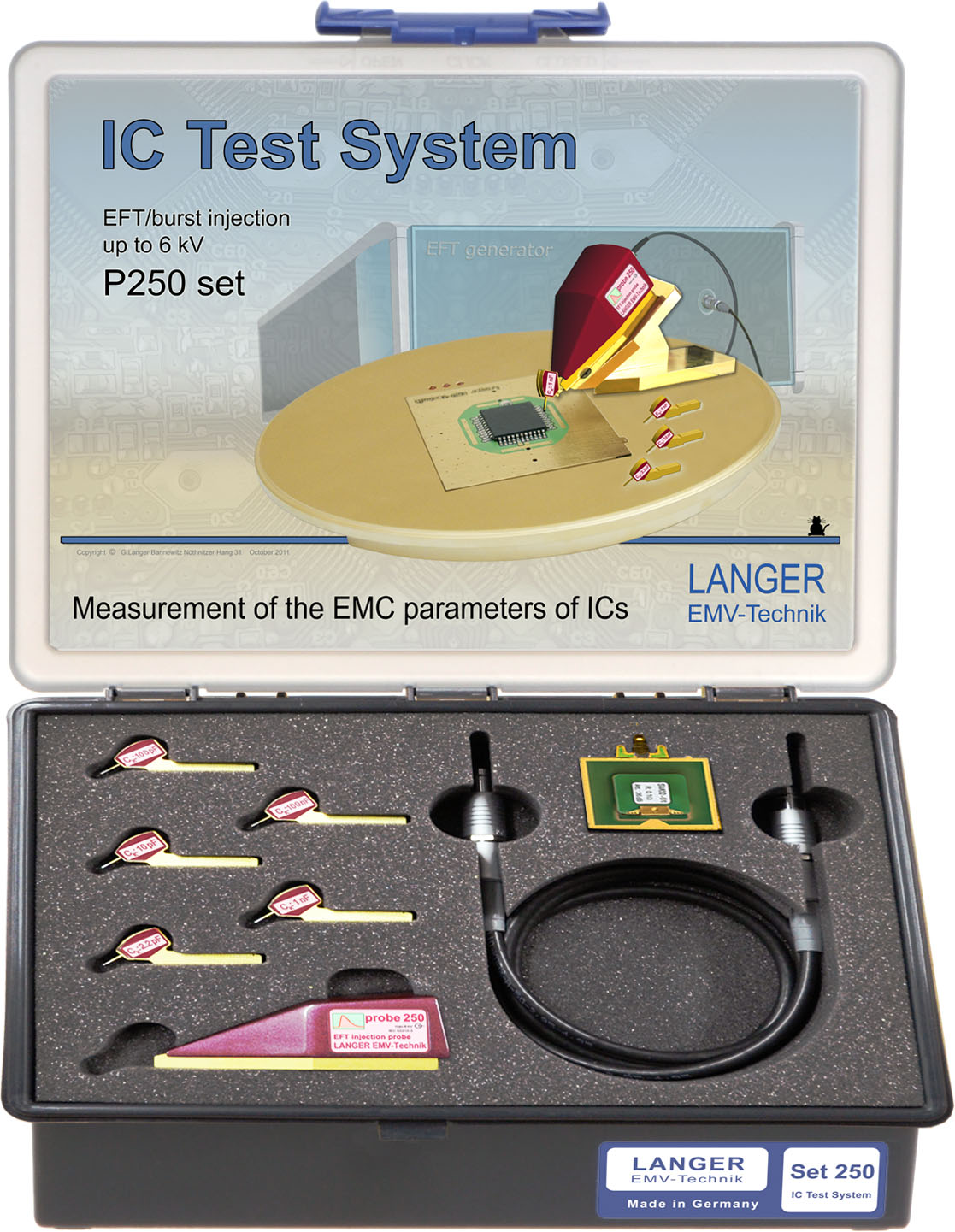

- 1x P250 case, System Case
- 1x P250 m, P250 Set User manual
Recommended products
Scope of delivery details
-

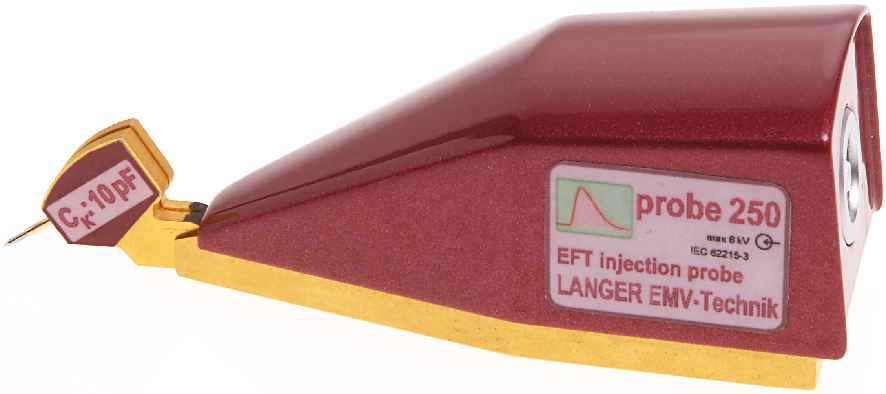

P250
EFT Coupling Network
The EFT coupling network P250 is used for the coupling of burst pulses to ICs according to IEC 62215-3. The probe P250 is connected to an EFT / Burstgenerator (IEC 61000-4-4). The probe P250 has interchangeable heads, which allows for coupling capacity to be changed. This means that the IC can be te…
-

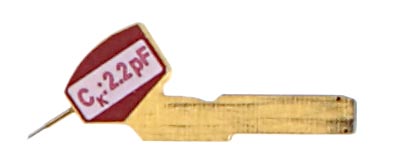

TS 250-2.2p
Probe Tip 2.2 pF
The TS 250-2.2p probe tip is an interchangeable coupling capacitor for the P250 EFT coupling probe and allows a high flexibility for disturbance coupling into IC pins. The probe tip is inserted into the front opening of the P250 probe.
-

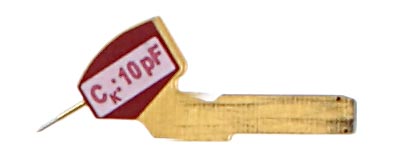

TS 250-10p
Probe Tip 10 pF
The TS 250-10p probe tip is an interchangeable coupling capacitor for the P250 EFT coupling probe and allows a high flexibility for disturbance coupling into IC pins. The probe tip is inserted into the front opening of the P250 probe.
-

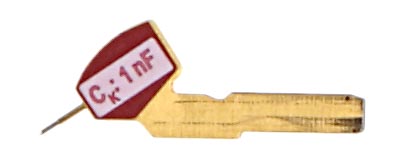

TS 250-1n
Probe Tip 1 n
The TS 250-1n probe tip is an interchangeable coupling capacitor for the P250 EFT coupling probe and allows a high flexibility for disturbance coupling into IC pins. The probe tip is inserted into the front opening of the P250 probe.
-
TS 250-100p
Probe Tip 100 pF
The TS 250-100p probe tip is an interchangeable coupling capacitor for the P250 EFT coupling probe and allows a high flexibility for disturbance coupling into IC pins. The probe tip is inserted into the front opening of the P250 probe.
-
TS 250-100n
Probe Tip 100 nF
The TS 250-100n probe tip is an interchangeable coupling capacitor for the P250 EFT coupling probe and allows a high flexibility for disturbance coupling into IC pins. The probe tip is inserted into the front opening of the P250 probe.
