P250
EFT Coupling Network
-
-
Application with P250
Short description
The EFT coupling network P250 is used for the coupling of burst pulses to ICs according to IEC 62215-3. The probe P250 is connected to an EFT / Burstgenerator (IEC 61000-4-4). The probe P250 has interchangeable heads, which allows for coupling capacity to be changed. This means that the IC can be tested in shorter period of time.
Technical parameters
| Input impedance | 50 Ω |
| Pulse parameter | |
| Shape | 5 / 50 ns |
| Max. input voltage RF | ± 6 kV |
| Connector - input | 50 Ω Fischer (D103A023) |

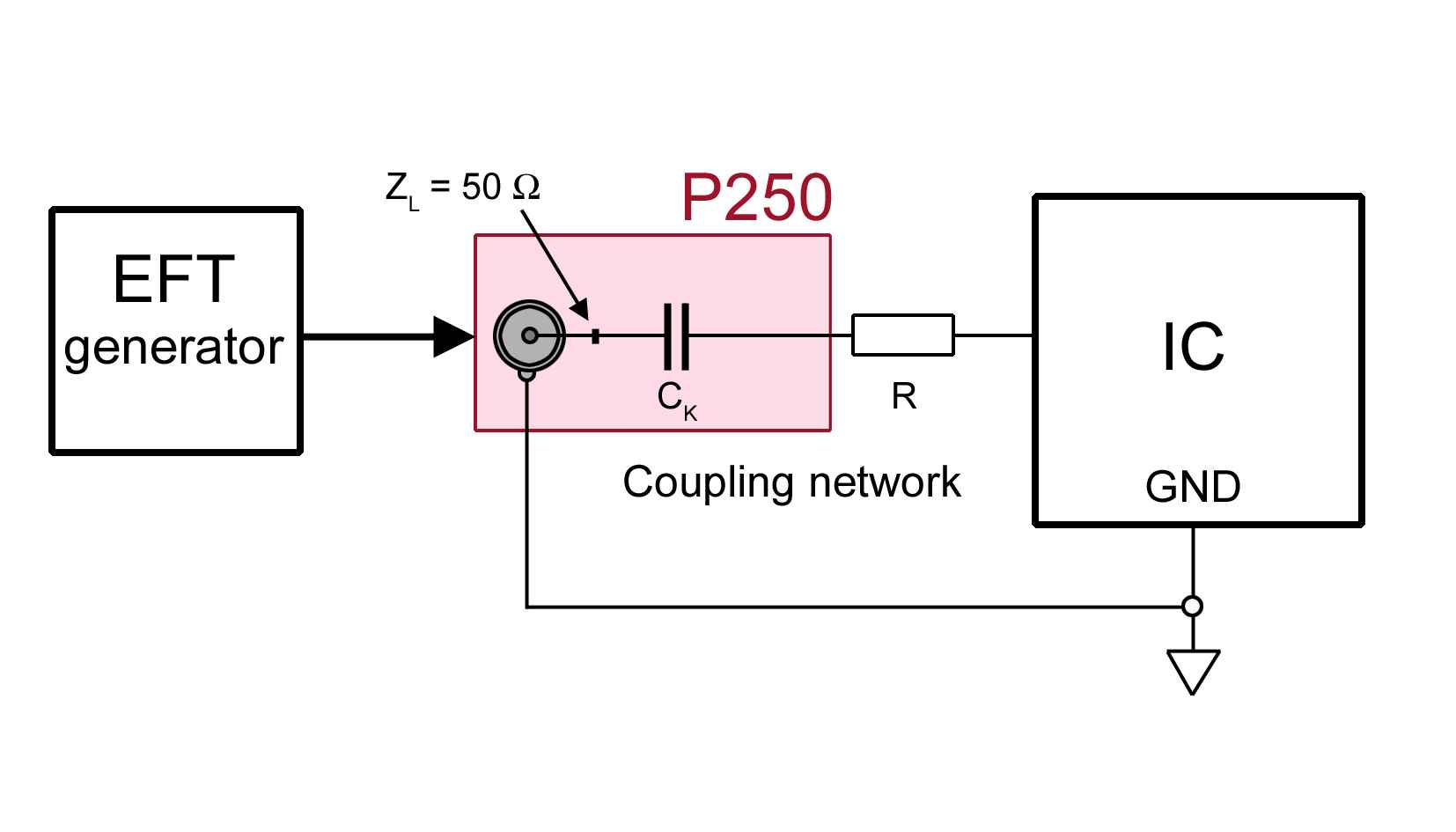

| Equivalent circuit |
|

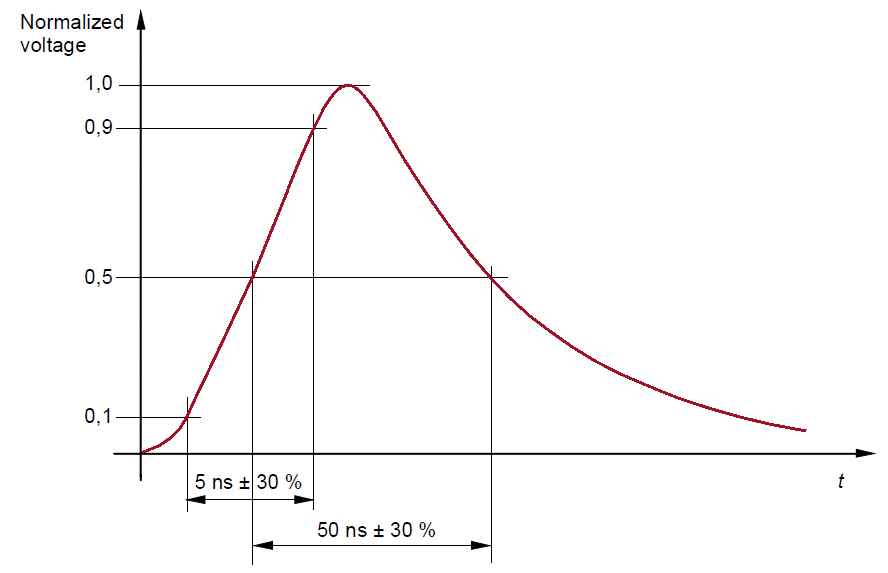

| Pulse shape (standard) |
|

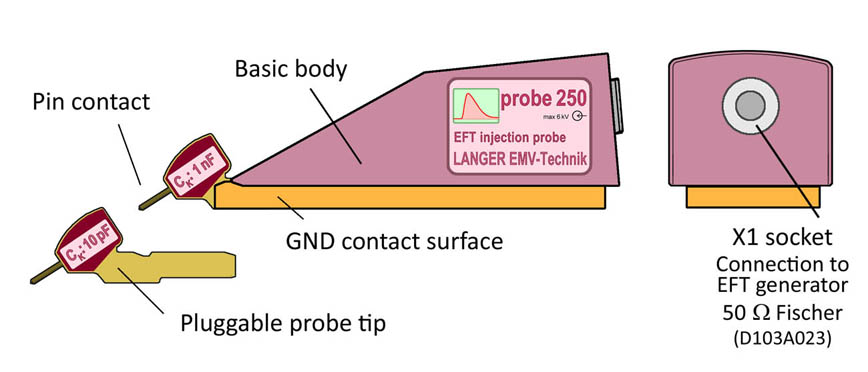

| Design, view 1 |
|
