Opto-Box 100 manualLIN 100 manual
CAN 100 manual
Opto-Box 100 LIN and CAN
The Opto-Box 100 converts electrical CAN or LIN signals into optical signals.

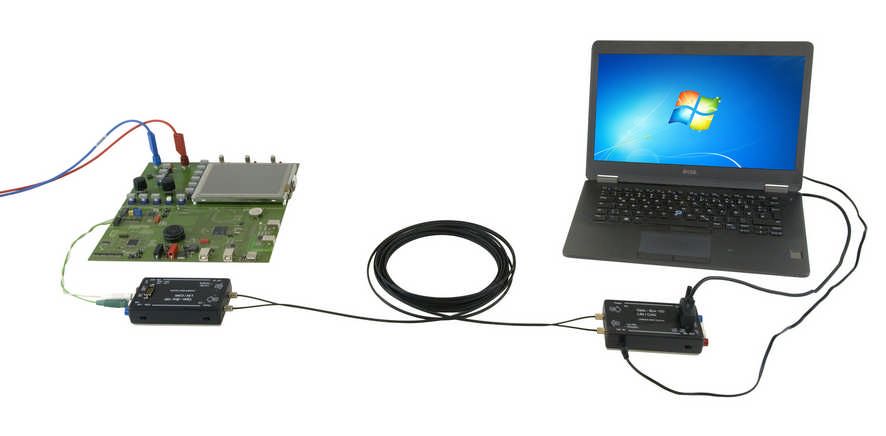

By using two Opto-Box 100, it is easy to split up an existing cable connection and replace a section of the cable with a fiber optic connection.
By combining the OB 100 with a LIN 100 or CAN 100 sensor, a very high disturbance immunity of the respective signal connection can be achieved.
Operating time with charged internal batteries | up to 1 week (depending on operating mode) |
Supply voltage | 12 V (max. 25 V) |
max. current input at 12 V | 250 mA (while charging internal battery) 45 mA (without charging internal battery) |
Optical fibre connector | 2 x 2.2 mm Ø |
Optical fibre length | 20 m (6 m at 1 Mbit/s CAN) |

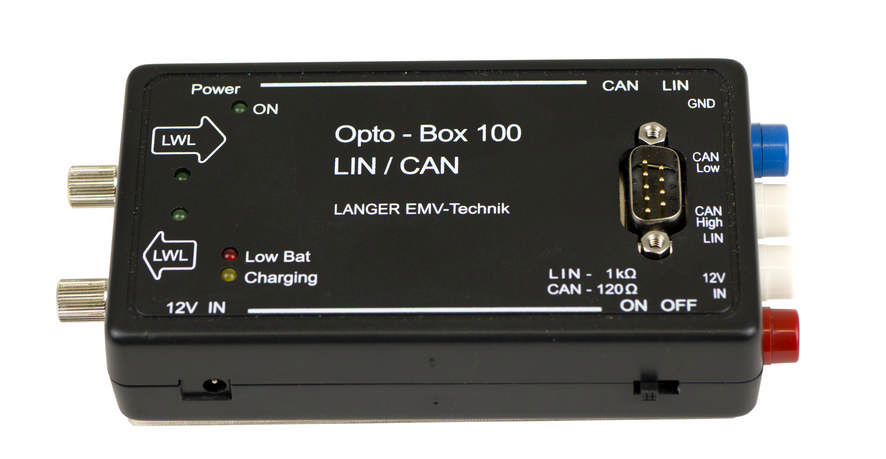

Opto-Box 100
The OB 100 Opto Box is used for optical signal transmission according to CAN- and LIN-standard (change-over switch). Via fibre optical cable the optical signals are transmitted to the distant station (either LIN 100 or CAN 100 probe head or a second Opto-Box). The LIN- or CAN-signals can be injected…
Optical Fiber Probe

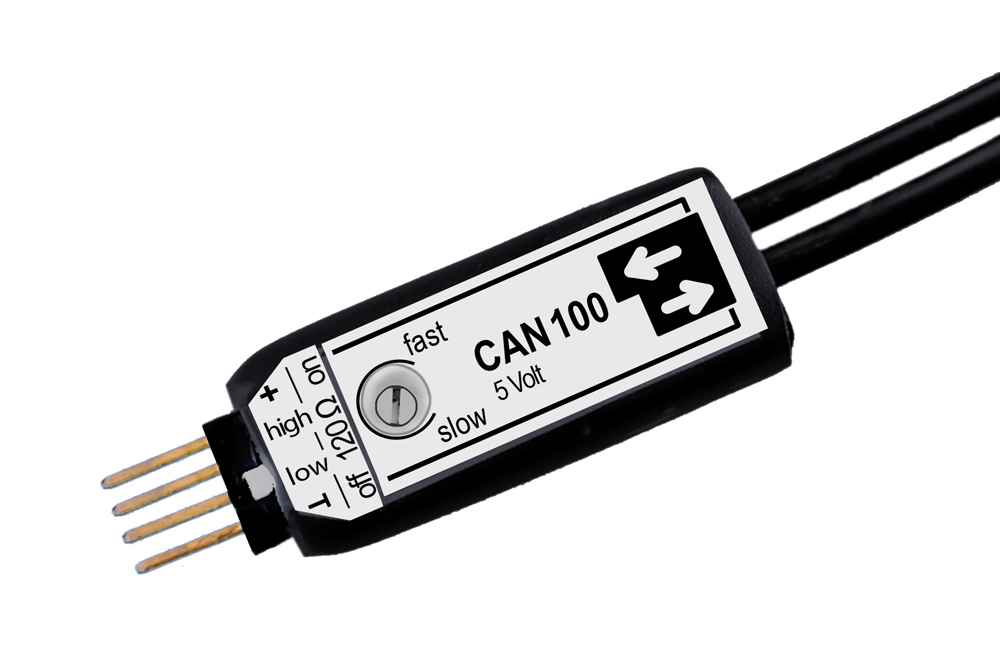

The CAN 100 optical fiber probe facilitates potential free signal transmission according to CAN standards. The very small probe head is installed directly into the assembly. The bidirectional optical transmission path achieved through the double-plastic optical fiber cable is suitable for the signal…
Optical Fiber Probe
The LIN 100 optical fiber field bus allows for potential free signal transmission according to LIN standards. The very small probe head is installed directly in the assembly. The bidirectional optical transmission path achieved through a double-plastic optical fibre cable is suitable for the signal …

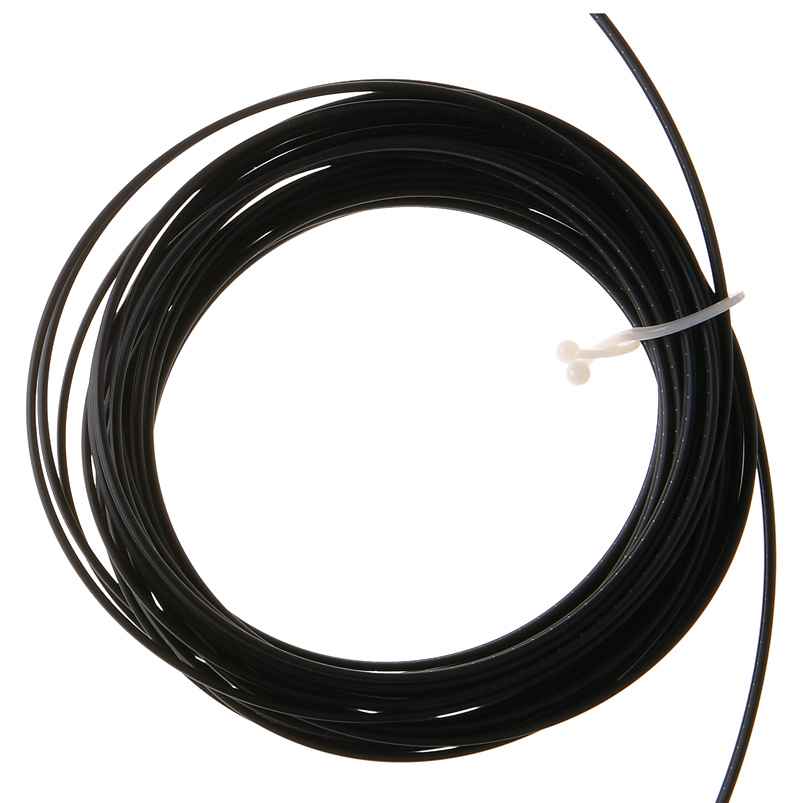

Optical Fiber, Double 10 m
The LWL Ø 2.2 mm 10 m is a double channel flexible fiber cable for optical signal transmission.
