CAN 100 set
Bus System
Short description

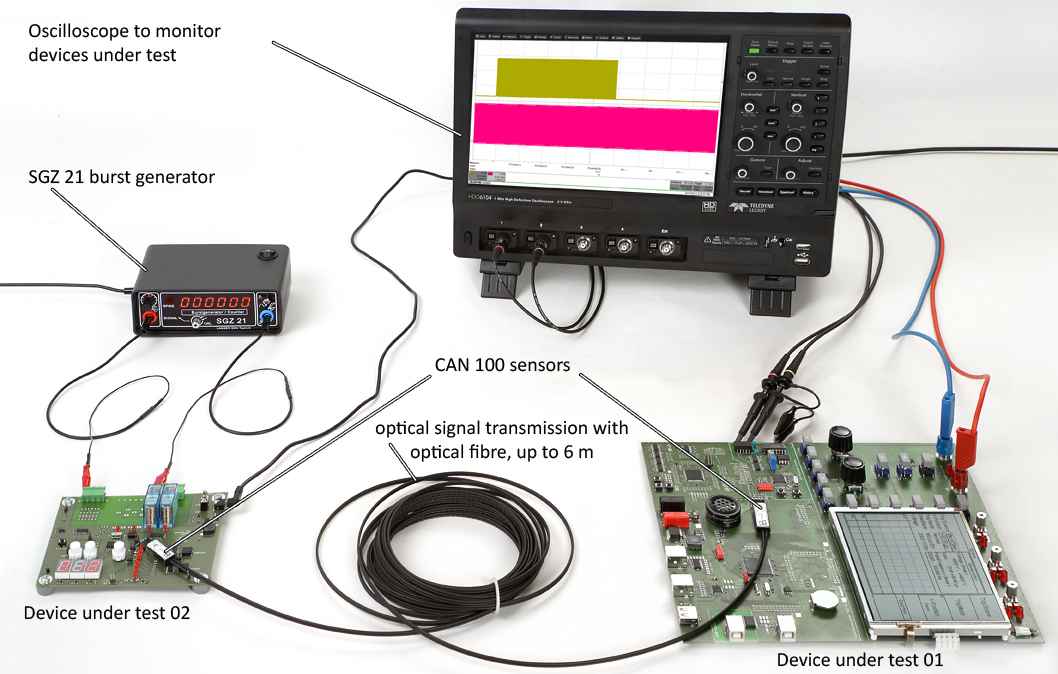

The CAN 100 set allows for the transmission of high speed CAN signals via optical fiber cables during EMC tests or when there are great potential differences (high voltage). The set consists of 2 small CAN probes.

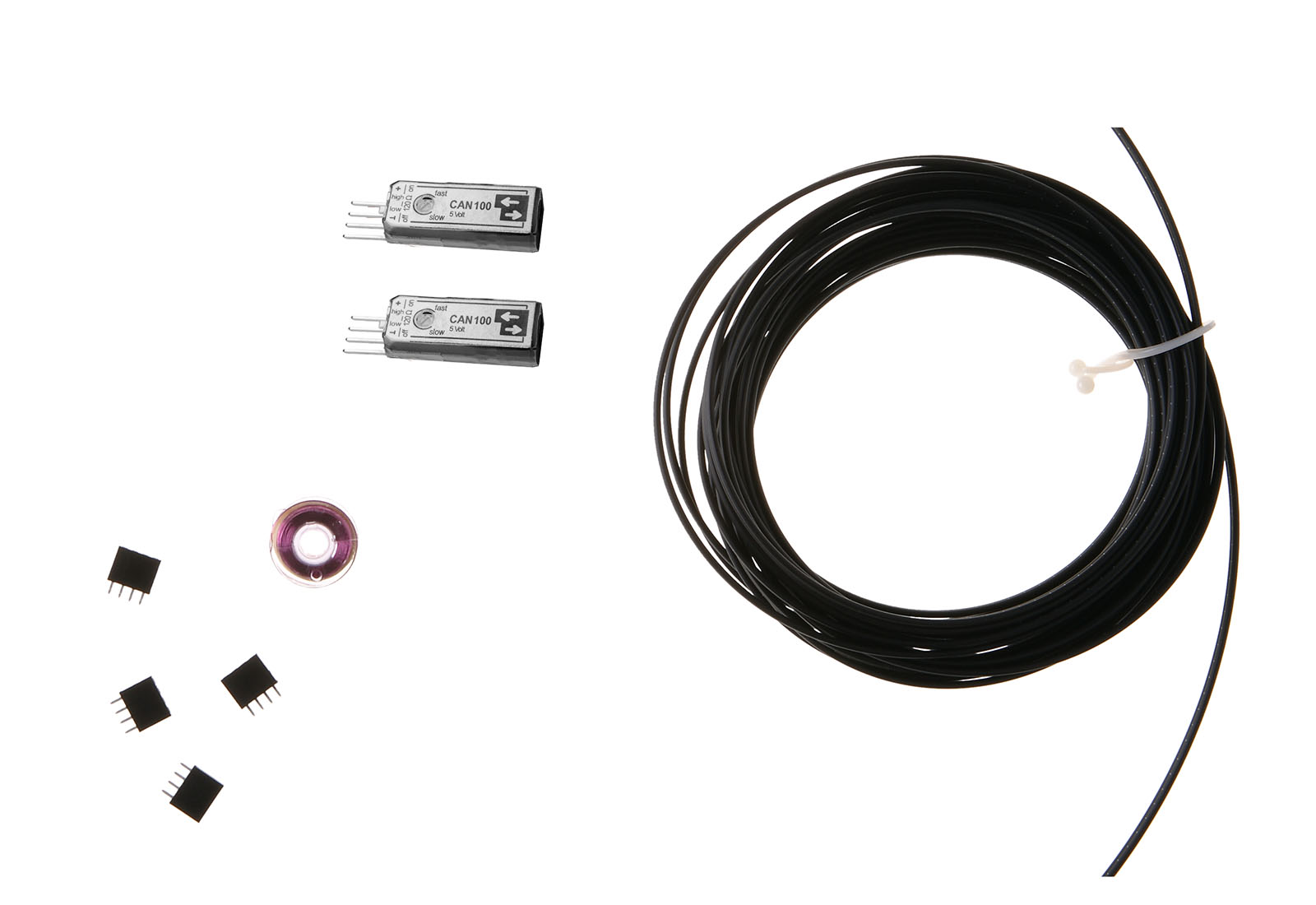

Scope of delivery
- 2x CAN 100, Optical Fiber Probe
- 1x LWL double 10 m, Optical Fiber, Double 10 m
- 1x CAN 100 acc, Accessories
- 1x A5 case, System case
- 1x CAN 100 m, CAN 100 Set User Manual
Recommended products
Technical parameters

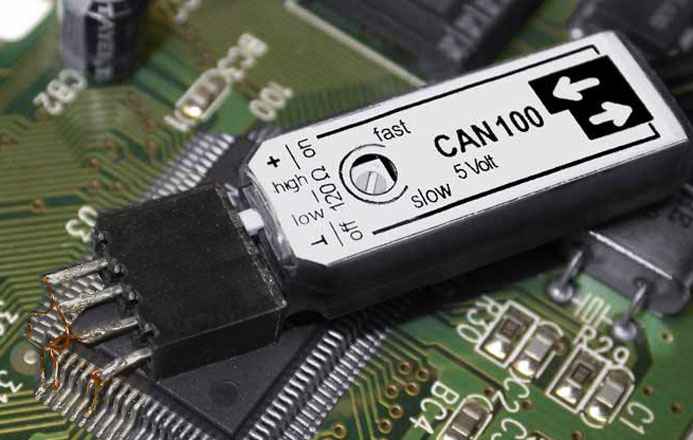

CAN 100 Optical Fibre Probe | |
Transmission range | 0 ... 1 Mbit/s |
Optical fibre connector | 2 x Ø 2.2 mm |
CAN transceiver | SN65HVD251 |
Supply voltage | 5 V |
Current input | max. 80 mA |
Optical fibre length | max. 10 m (max. 6 m at 1 Mbit/s) |
