XF-E 10

E-Field Probe 30 MHz up to 6 GHz

Send enquiry Datasheet
  • XF-E 10, E-Field Probe 30 MHz up to 6 GHz
  • Probe head
    Probe head

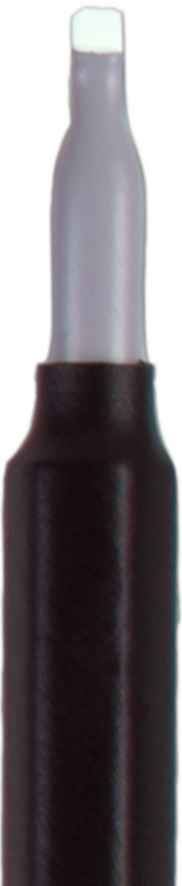

XF-E 10, E-Field Probe 30 MHz up to 6 GHz Probe head
  • XF-E 10, E-Field Probe 30 MHz up to 6 GHz
  • Probe head
Short description

The electrode in the probe head of the XF-E 10 has a width of approx. 0.2 mm. With the probe even smallest E-field sources can be located, e.g. conducting paths with a width of 0.1 mm or single pins on multi pinned ICs. To measure, the E-field probe is positioned onto the object.

The XF-E 10 probe is a passive near-field probe. In principle it has the same structure as the XF-E 04 and XF-E 09 probes. The resolution of XF-E 10, however, is significantly higher. Normally the probe head is positioned directly onto the measured object (high electric field strength). It is not suitable for measurements from greater distances, which can be done using the XF-E 04 or XF-E 09. The near-field probe is small and handy. It has a current attenuating sheath and, therefore, is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. The H-field probe has an internal terminating resistance.

Technical parameters
Frequency response [dBµV] / [dBµV/mm] E- field correction curve [dBµV/mm] / [dBµV] Measuring principles
Frequency range 30 MHz ... 6 GHz
Resolution ≈ 0.2 mm
Probe head dimensions: ≈ (0.5 x 2) mm
Connector - output SMA, female, jack
Weight 15 g

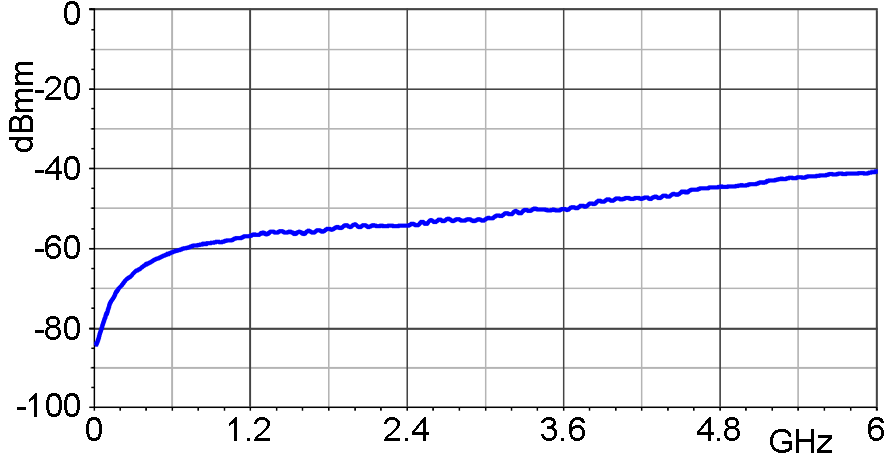

Frequency response [dBµV] / [dBµV/mm] Frequency response [dBµV] / [dBµV/mm]

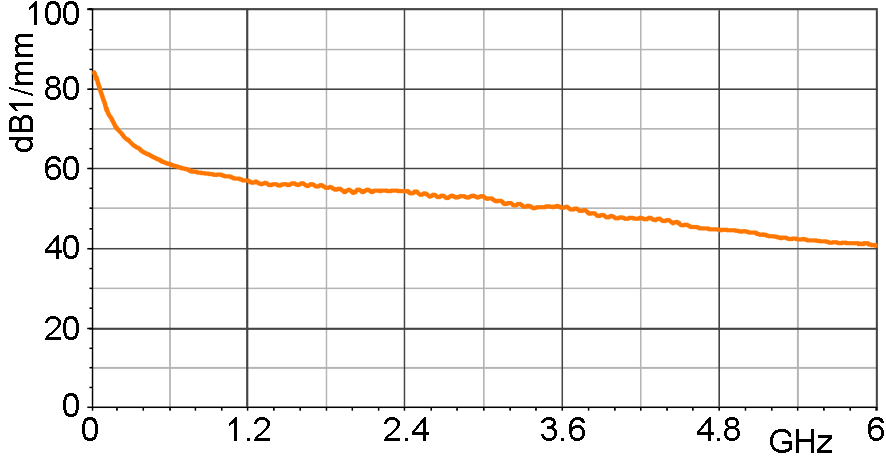

E- field correction curve [dBµV/mm] / [dBµV] E- field correction curve [dBµV/mm] / [dBµV]

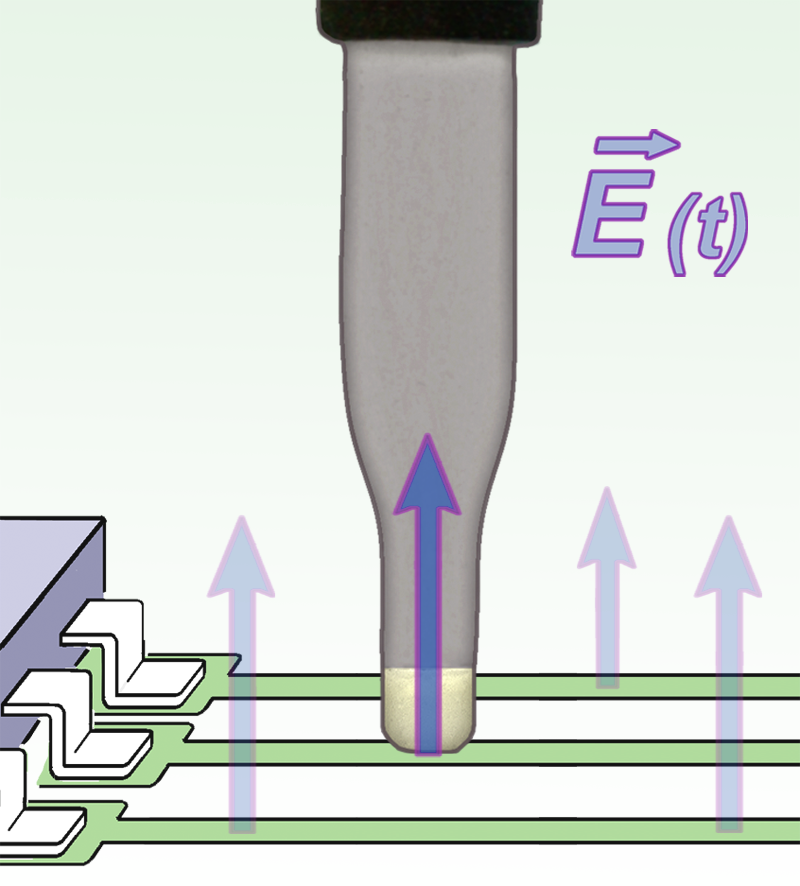

Measuring principles Measuring principles
