MFA-R 0.2-75

Near-Field Micro Probe 1 MHz up to 1 GHz

  • Short description
  • Technical parameters
Send enquiry Datasheet
  • MFA-R 0.2-75, Near-Field Micro Probe 1 MHz up to 1 GHz

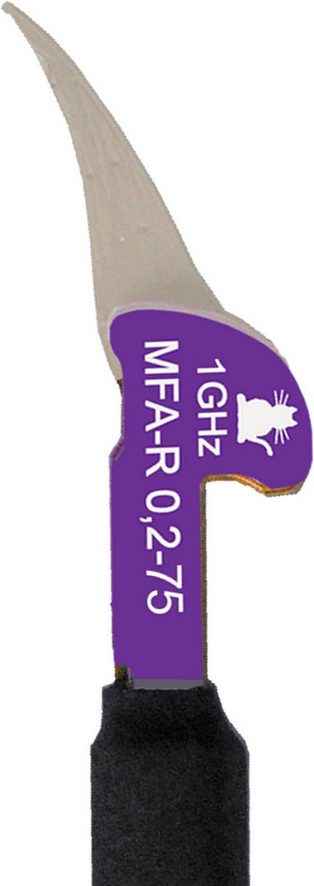

  • Probe head
    Probe head
  • Application
    Application
MFA-R 0.2-75, Near-Field Micro Probe 1 MHz up to 1 GHz Probe head Application
  • MFA-R 0.2-75, Near-Field Micro Probe 1 MHz up to 1 GHz
  • Probe head
  • Application
Short description

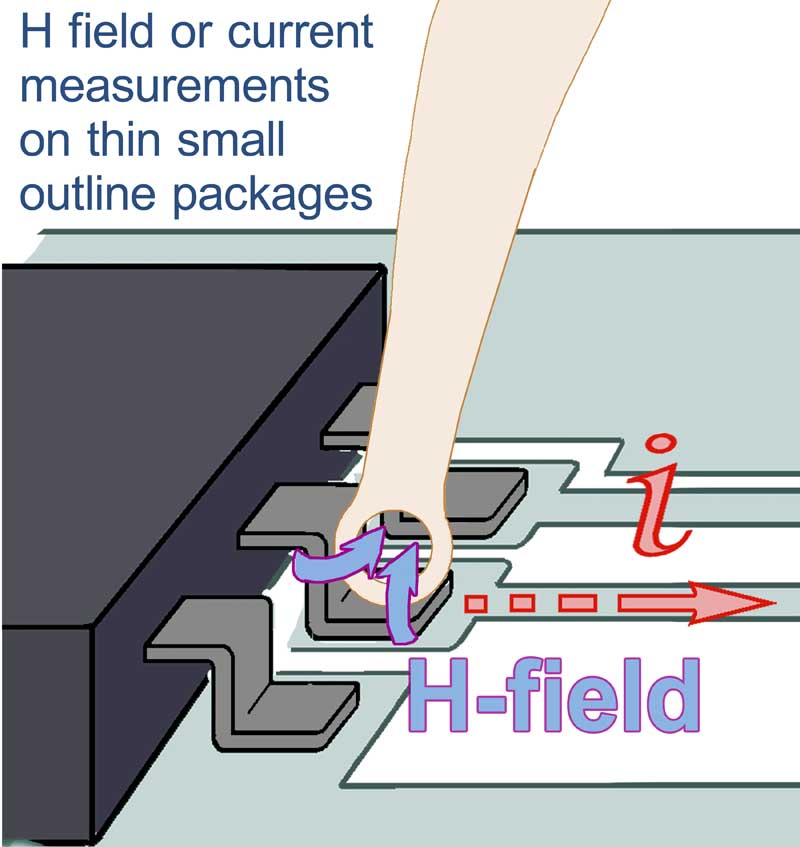

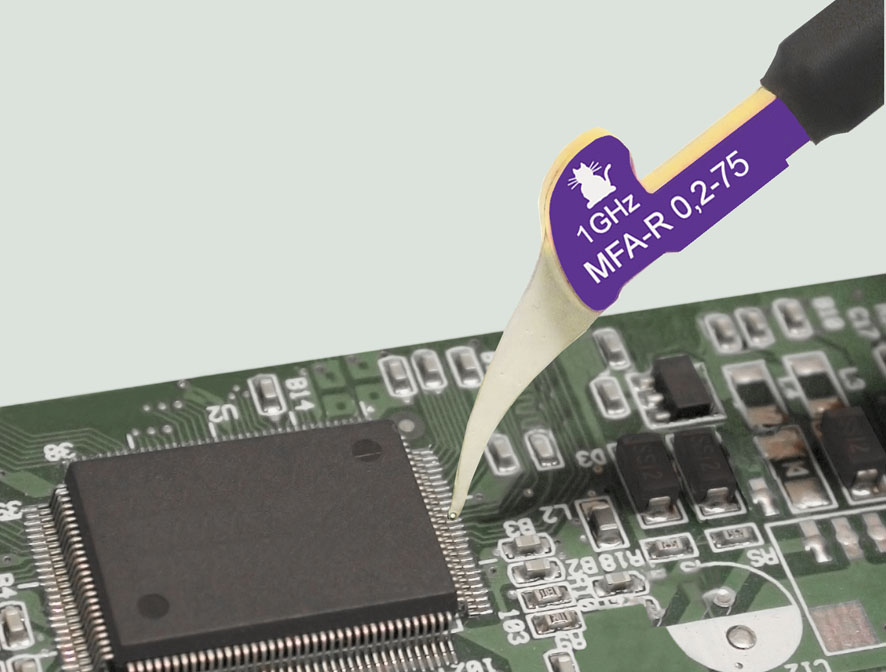

The MFA-R 0.2-75 near-field micro probe has an extremely small and high resolution probe head. It is suitable for measuring RF magnetic fields up to 1 GHz on components, e.g. close to IC pins, finest conducting paths or smallest SMD components (0603-0201).

The MFA-R 0.2-75 is an active magnetic field micro probe that requires the BT 706 bias tee to operate. In principle, it has the same structure as the MFA-K 0.2-6, differing only in its frequency response.
The coil opening at the probe head is laterally marked with black dots. The near-field micro probe is small and handy. It has a current attenuating sheath and is electrically shielded.
An amplifier stage is integrated into the probe head. The amplifier stage (9 V, 100 mA) is powered via the bias tee. It has an impedance of 50 Ω. The near-field micro probe is connected to a spectrum analyzer or oscilloscope with a 50 Ω input via the BT 706 bias tee. A power supply unit and the bias tee are included in the scope of delivery.
With the help of the correction lines, the probe’s output voltage is converted into either the respective magnetic field or the current running through the conductor.

Technical parameters
Frequency range 1 MHz ... 1 GHz
Resolution 300 µm
Connector - output SMA, female, jack
Frequency response [dBµV] / [dBµA/m] Frequency response [dBµV] / [dBµA/m] Frequency response [dBµV] / [dBµA/m]
H-field correction curve [dBµA/m] / [dBµV] H-field correction curve [dBµA/m] / [dBµV] H-field correction curve [dBµA/m] / [dBµV]
Current correction curve [dBµA] / [dBµV] Current correction curve [dBµA] / [dBµV] Current correction curve [dBµA] / [dBµV]
Measuring principles Measuring principles Measuring principles
