LF-R 400

H-Field Probe 100 kHz up to 50 MHz

  • Short description
  • Recommended products
  • Technical parameters
Send enquiry Datasheet
  • LF-R 400, H-Field Probe 100 kHz up to 50 MHz

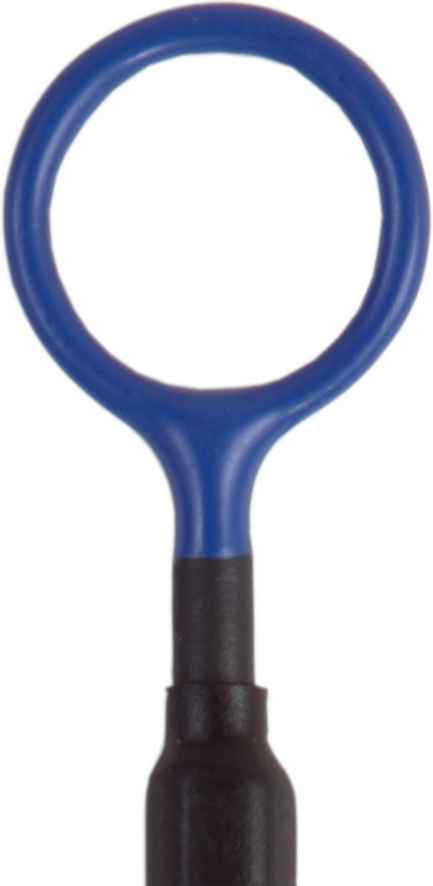

  • Probe head
    Probe head
LF-R 400, H-Field Probe 100 kHz up to 50 MHz Probe head
  • LF-R 400, H-Field Probe 100 kHz up to 50 MHz
  • Probe head
Short description

The LF-R 400 H-field probe has a large diameter (25 mm), which makes it highly sensitive and suitable for measurements within ranges up to 10 cm around assemblies and devices.

The LF-R 400 is a passive near-field probe. With its large tip diameter (25 mm), it is more sensitive and thus is able to detect a greater area of the magnetic field than the LF-R 50 (10 mm) or LF-R 3 (3 mm) near-field probes, which both have higher resolutions than the LF-R 400. This probe is small and handy. It has a current attenuating sheath and, therefore, is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. The H-field probe does not have an internal terminating resistance of 50 Ω.

Technical parameters
Frequency range 100 kHz ... 50 MHz
Probe head dimensions: Ø 25 mm
Connector - output SMB, male, jack
Weight 15 g
Frequency response [dBµV] / [dBµA/m] Frequency response [dBµV] / [dBµA/m] Frequency response [dBµV] / [dBµA/m]
H-field correction curve [dBµA/m] / [dBµV] H-field correction curve [dBµA/m] / [dBµV] H-field correction curve [dBµA/m] / [dBµV]
Current correction curve [dBµA] / [dBµV] Current correction curve [dBµA] / [dBµV] Current correction curve [dBµA] / [dBµV]

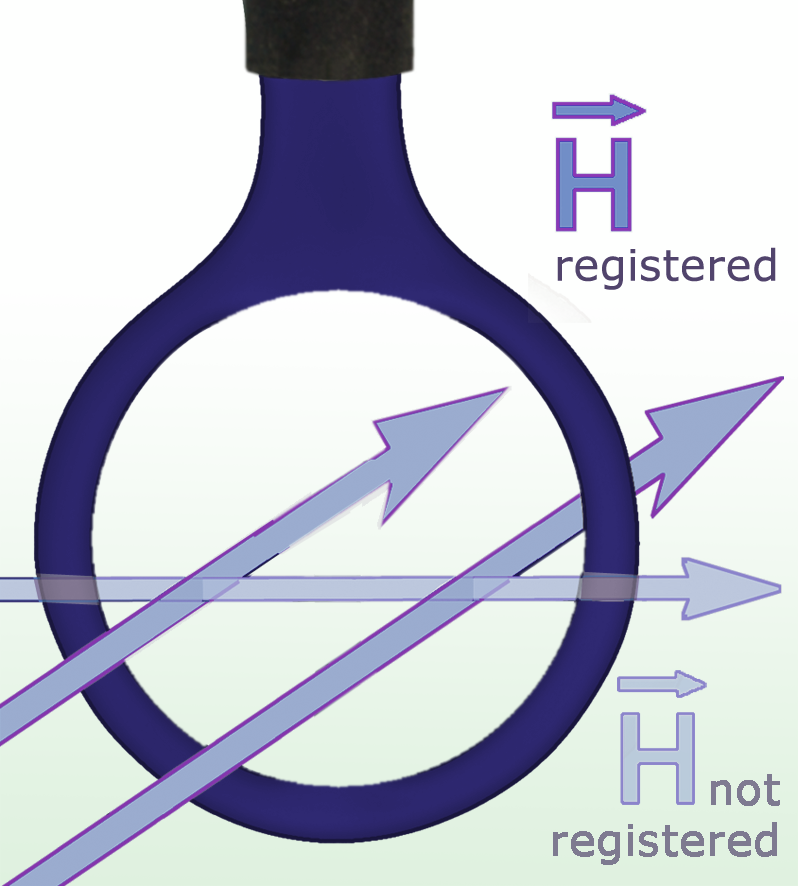

Measuring principles Measuring principles Measuring principles
