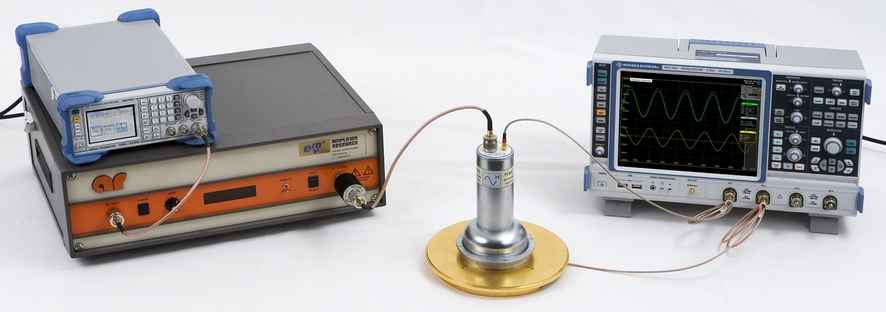

MP Field Sources Calibration set
Measurement of Field Sources
-
-

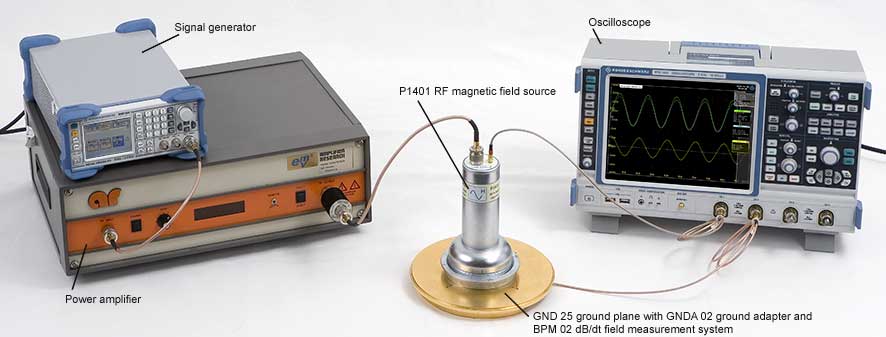

Application with designation
Short description
The MP field source calibration set is used to measure electric or magnetic fields in a frequency range up to 3 GHz.
RF fields or transient fields can be measured. The MP field source calibration set is used to check fields of the Langer EMV-Technik GmbH field sources, fields of TEM cells and IC striplines.
Scope of delivery
- 1x GND 25, Ground Plane
- 1x GNDA 02, Ground Adapter 32.9 mm x 32.9 mm
- 1x EPM 02, dE/dt Field Meter
- 1x BPM 02, dB/dt Field Meter
- 2x SMA-SMB 1 m ds, SMA-SMB Double-Shielded Measurement Cable
- 1x SMA-SMA 1 m ds, SMA-SMA Double-Shielded Measurement Cable
- 1x MP field sources calibration case, System Case
- 1x MP Field Sources Calibration m, MP Field Sources Calibration Set User Manual
Scope of delivery details
-
GND 25
Ground Plane
The GND 25 ground plane ensures the RF-compatible contacting of the probe during an EMC measurement at a test IC. The GND 25 consists of steel with a gold plated surface. The recess (103 mm x 103 mm) is designed for the placement of GNDA ground adapters (GNDA 01-04) and TEM cell prints (100 mm x 100 mm).
-

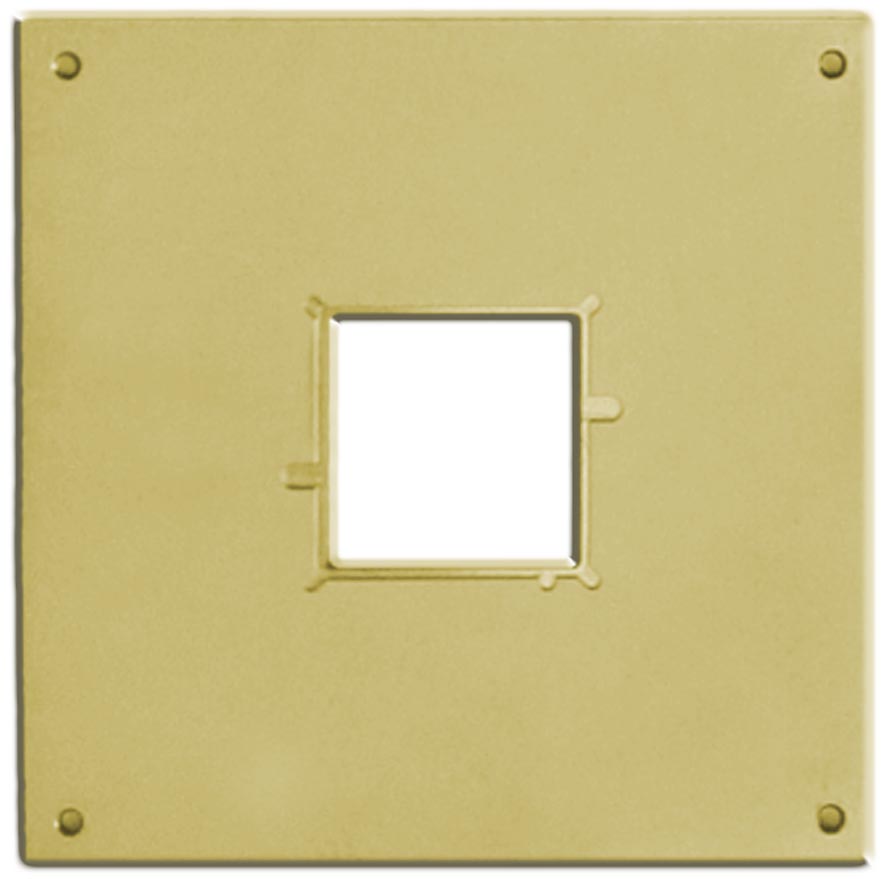

GNDA 02
Ground Adapter 32.9 mm x 32.9 mm
The GNDA ground adapter is designed for the adaption of the test board to the (100 x 100) mm recess of the GND 25 ground plane. The test board is placed into the recess of the ground adapter. According to the size of the test board there are four ground adapters to choose from (GNDA 01-04).
-

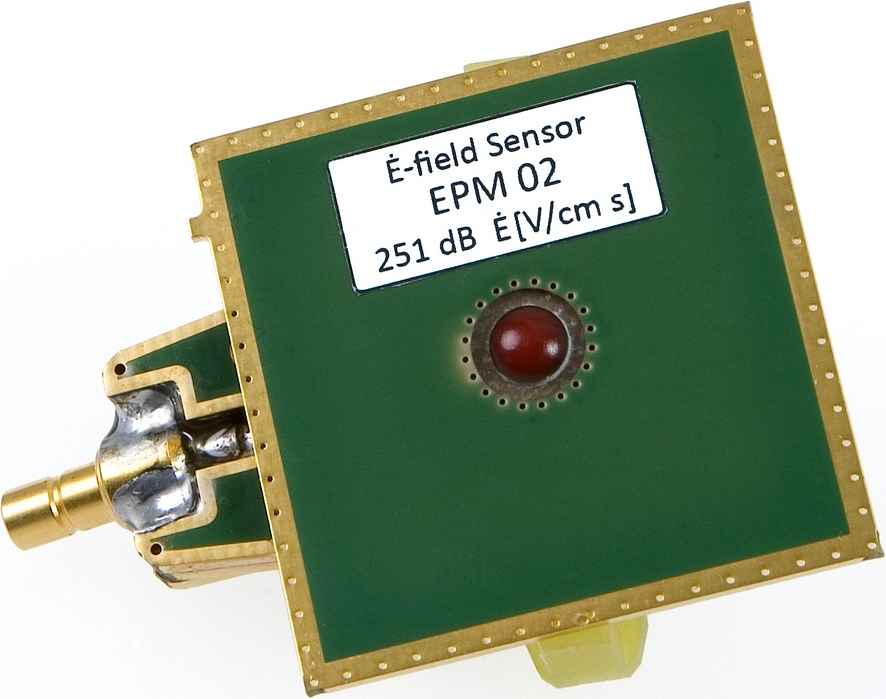

EPM 02
dE/dt Field Meter
The EPM 02 is suitable for the measurement of fast transients with a bandwidth up to 3 GHz. The dE/dt field meter doesn't have a lower limit frequency. Depending on the noise limit of the used measuring device the usage of the EPM 02 is limited in the lower frequency range. For example, at a noise …
-

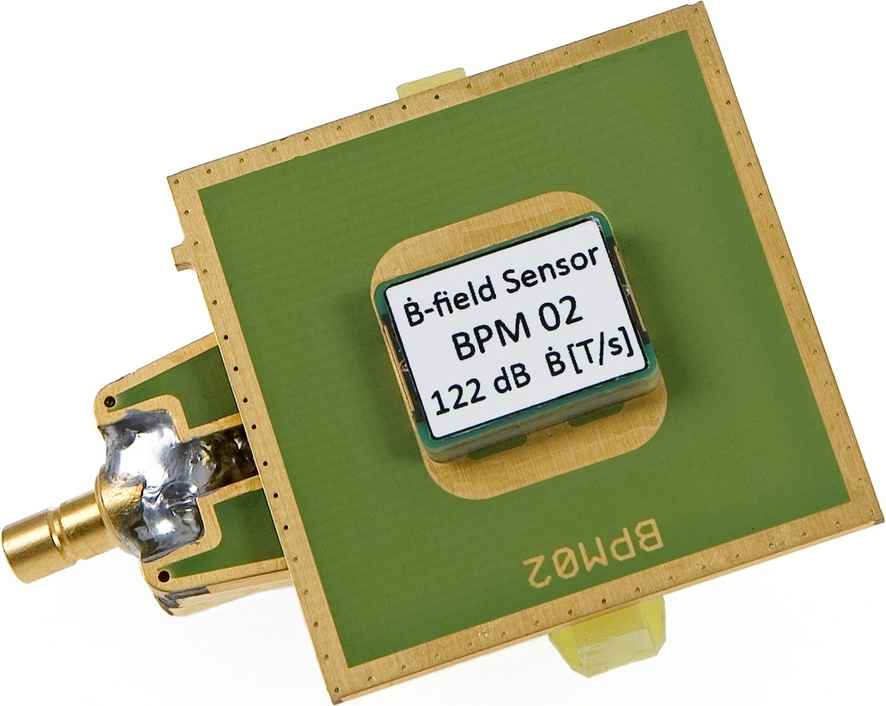

BPM 02
dB/dt Field Meter
The BPM 02 is a dB/dt field meter and it is used to measure the temporal change of the magnetic field strength characteristics dB/dt up to 3 GHz. The lower limit frequency depends on the measurement set-up.
