HR-E 40-1

E-Field Probe up to 40 GHz

Send enquiry Datasheet
  • HR-E 40-1, E-Field Probe up to 40 GHz

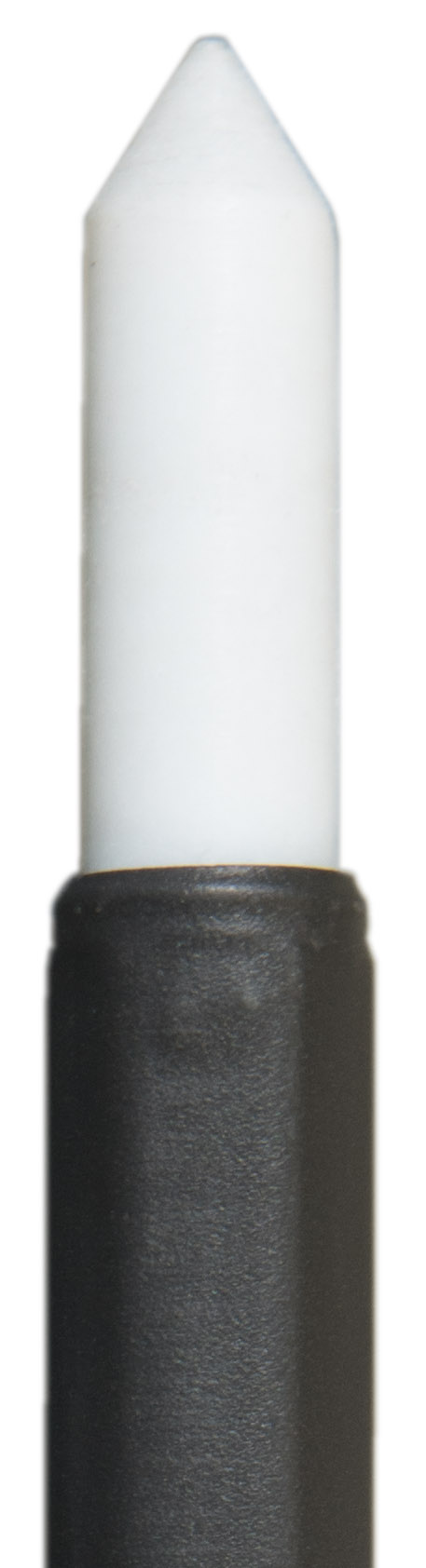

  • HR-E 40-1 E-field probe head
    HR-E 40-1 E-field probe head

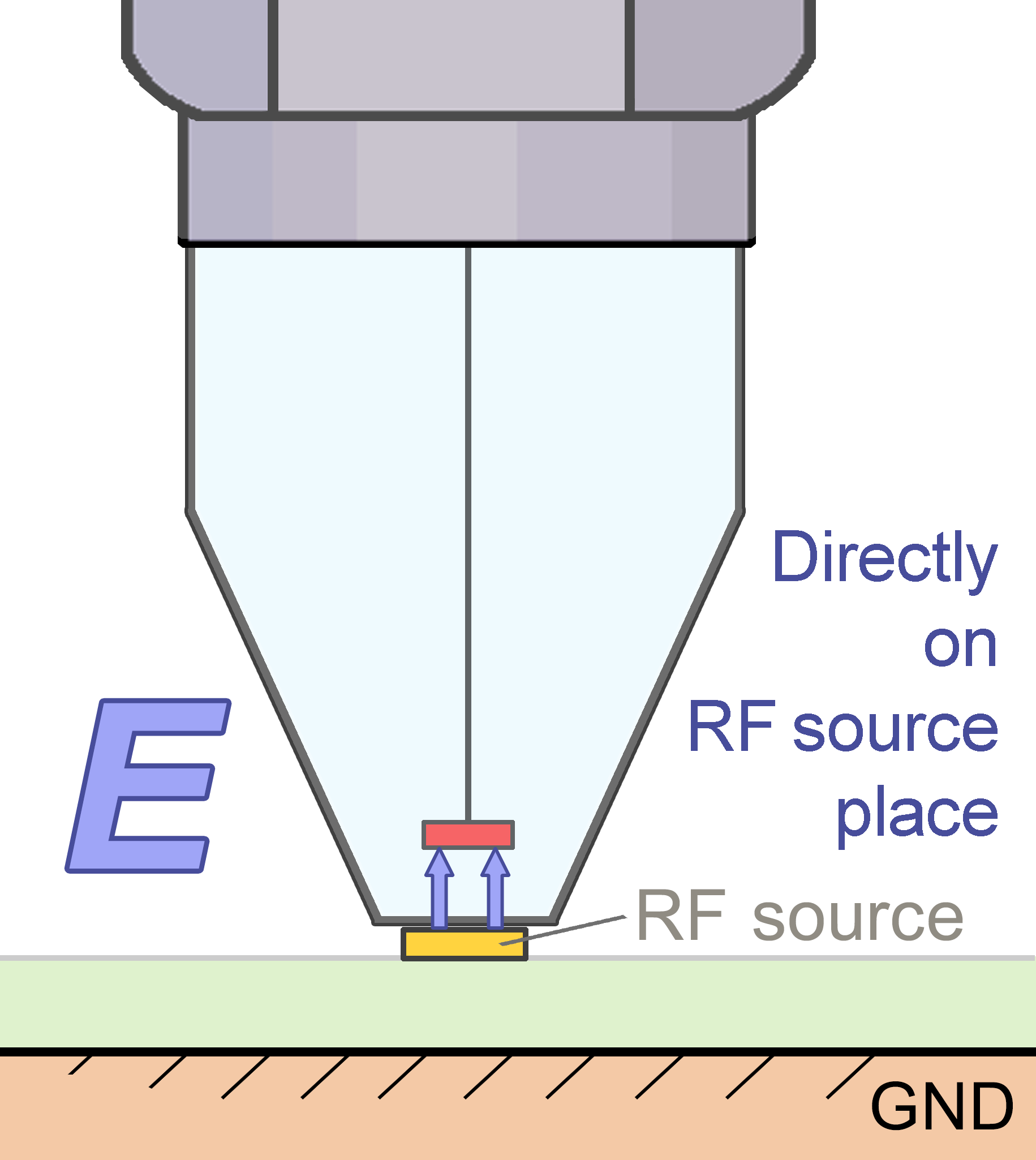

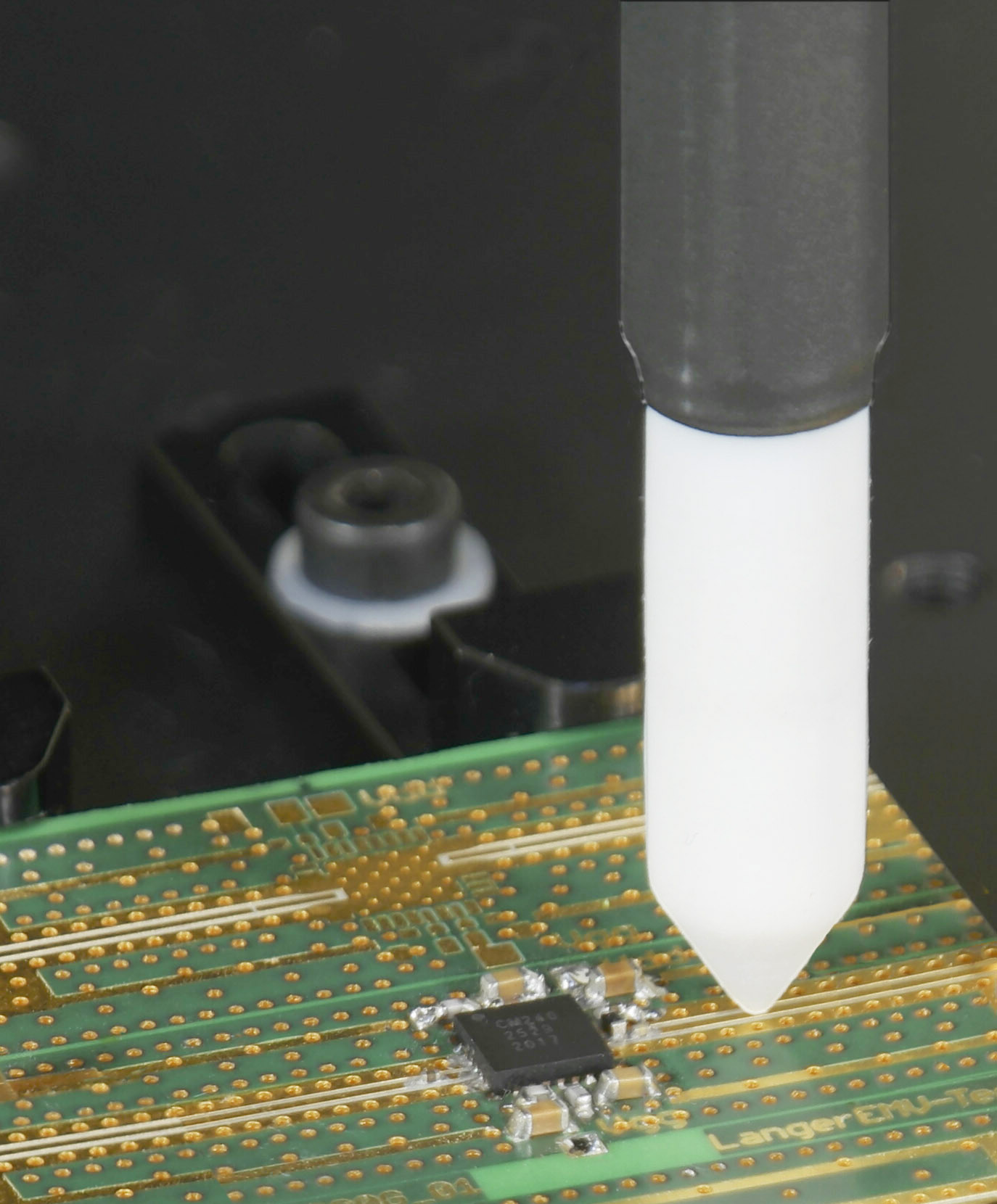

  • HR-E 40-1 E-field probe in application
    HR-E 40-1 E-field probe in application
HR-E 40-1, E-Field Probe up to 40 GHz HR-E 40-1 E-field probe head HR-E 40-1 E-field probe in application
  • HR-E 40-1, E-Field Probe up to 40 GHz
  • HR-E 40-1 E-field probe head
  • HR-E 40-1 E-field probe in application
Short description

The HR-E 40-1 is a passive near-field probe for measuring electric fields up to 40 GHz.
The measuring tip is decoupled from the cable shield by special damping systems. In addition, the probe contains a shield surface current suppressor.

Technical parameters
Frequency response Correction curve Measuring principles
upper cut-off frequency 40 GHz
lower cut-off frequency depending on measuring device
Resolution 0.2 mm
Inner distance of the measuring electrode to the measuring tip 0.5 mm
Output resistance 50 Ω
Connector - output 2.92 mm (K), female, jack
Weight 19 g
Sizes (L x W x H) (145 x 9 x 9) mm
Frequency response Frequency response
Correction curve Correction curve
Measuring principles Measuring principles
