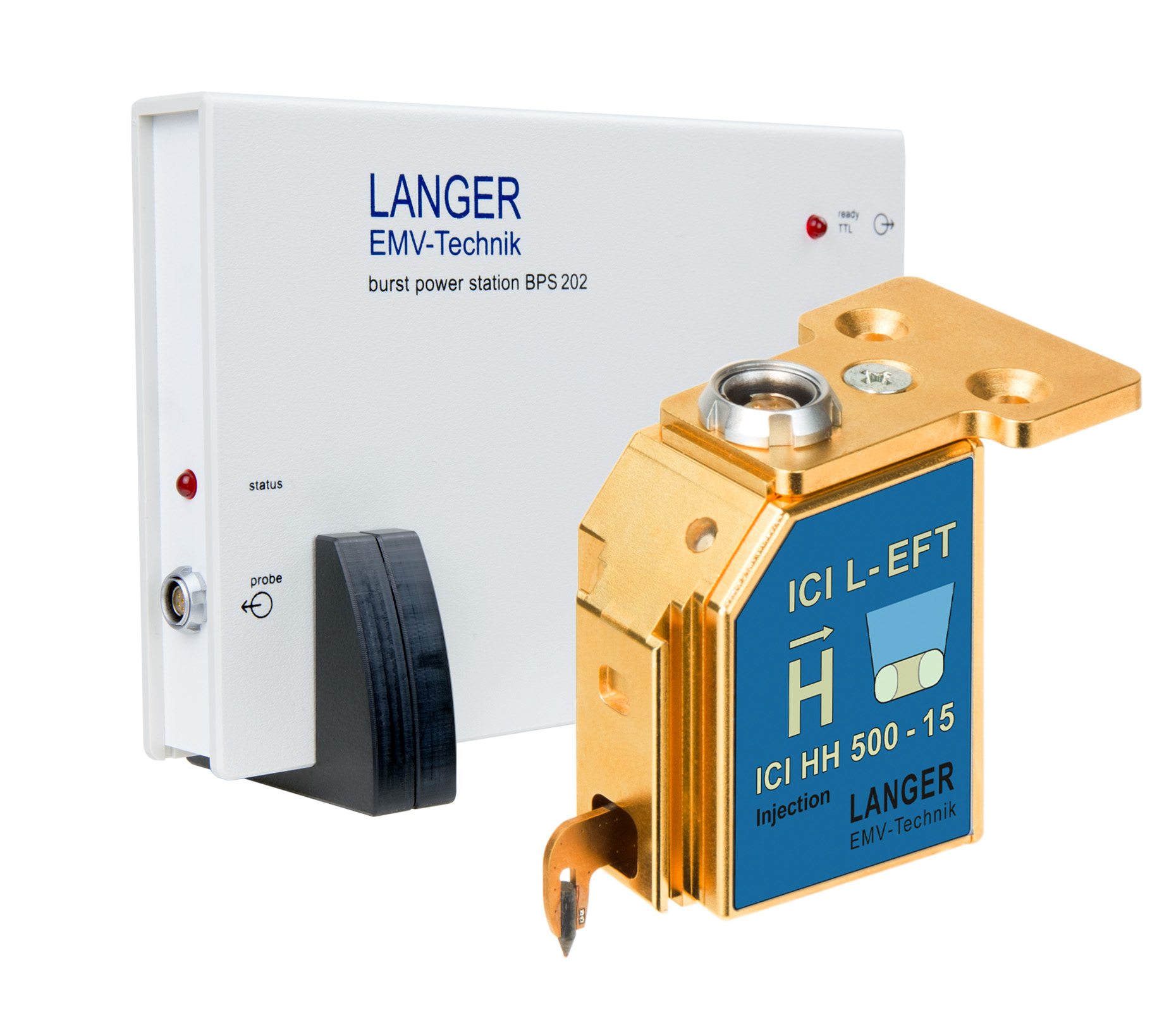

  • ICI HH500-15 L-EFT set, Pulse Magnetic Field Source set

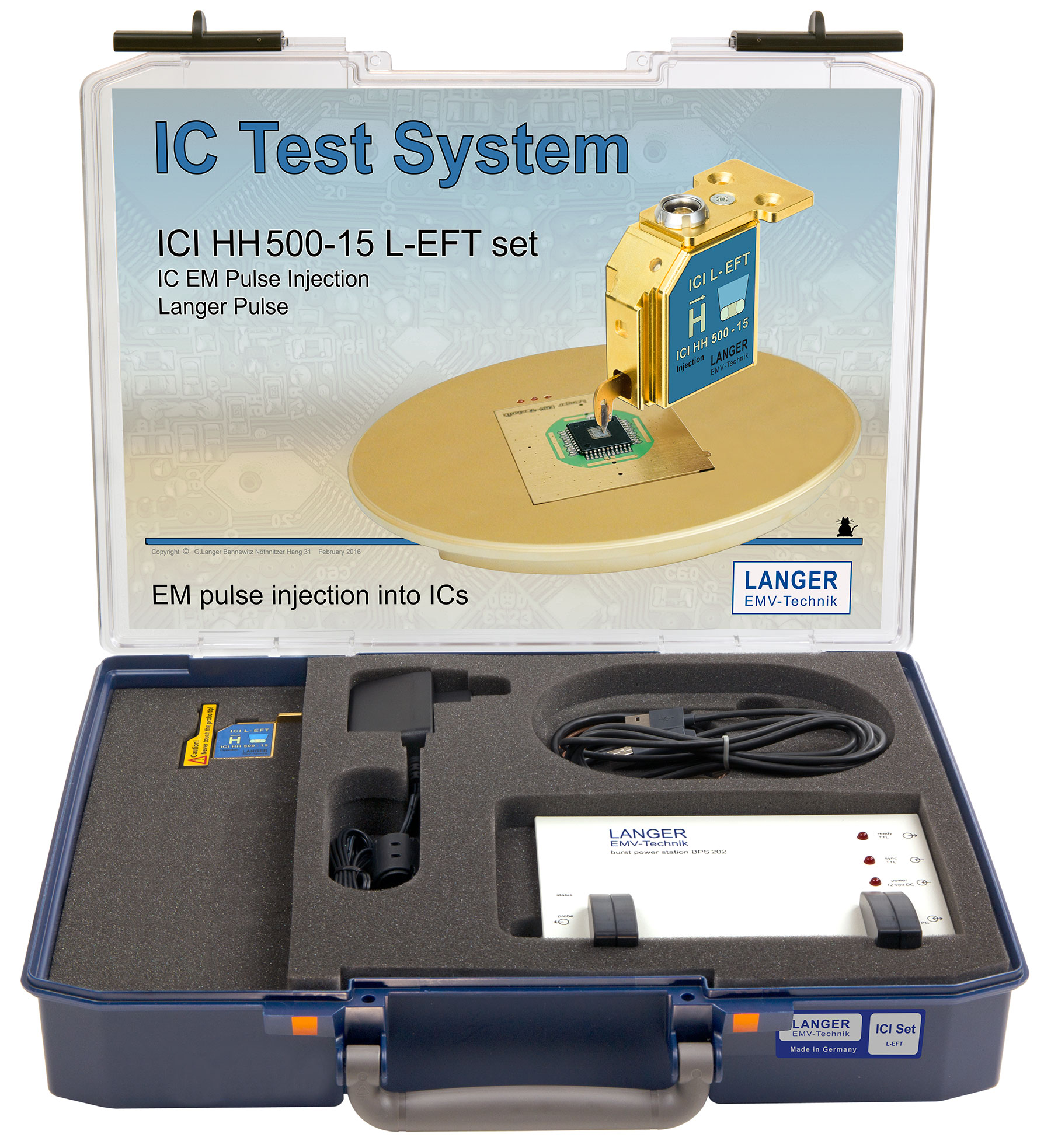

  • Contents of the case ICI HH500-15-L-EFT-set
    Contents of the case ICI HH500-15-L-EFT-set

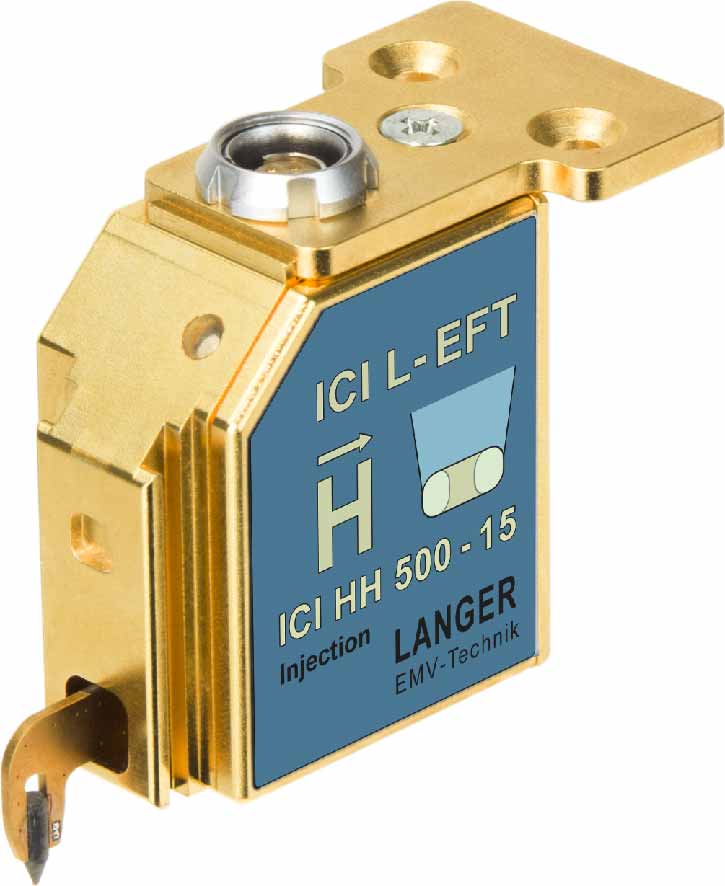

  • Application of ICI HH500-15 L-EFT pulse magnetic field source
    Application of ICI HH500-15 L-EFT pulse magnetic field source

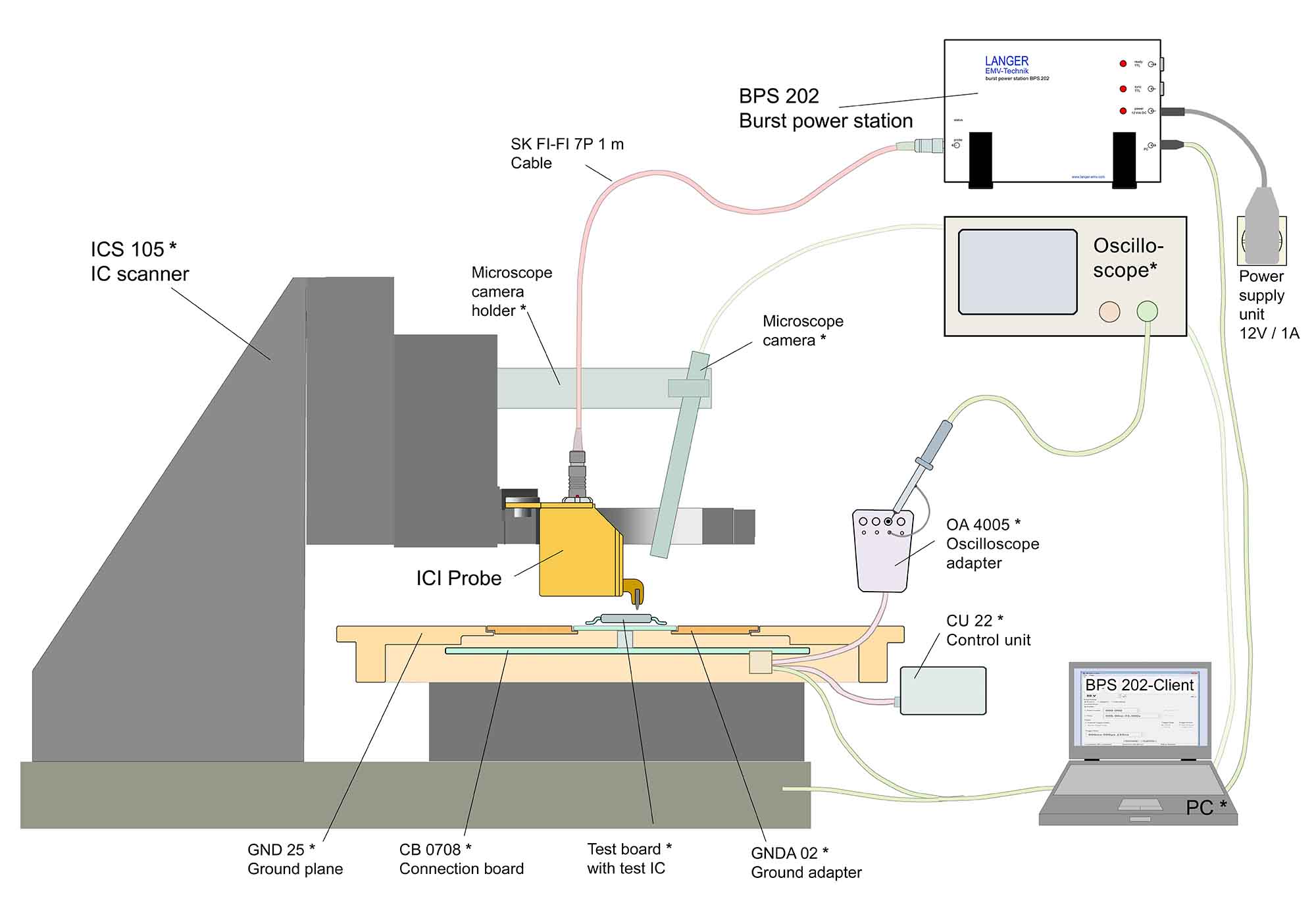

  • Schematic set-up with mover
    Schematic set-up with mover

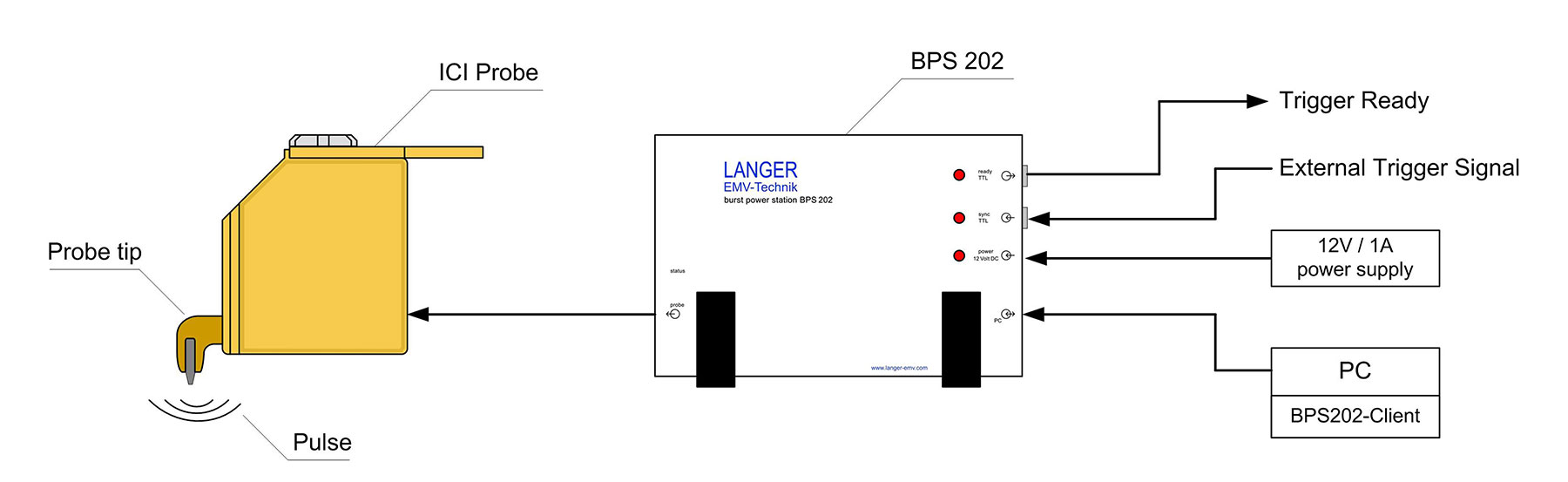

  • Schema of measurement set-up
    Schema of measurement set-up
ICI HH500-15 L-EFT set, Pulse Magnetic Field Source set Contents of the case ICI HH500-15-L-EFT-set Application of ICI HH500-15 L-EFT pulse magnetic field source Schematic set-up with mover Schema of measurement set-up
  • ICI HH500-15 L-EFT set, Pulse Magnetic Field Source set
  • Contents of the case ICI HH500-15-L-EFT-set
  • Application of ICI HH500-15 L-EFT pulse magnetic field source
  • Schematic set-up with mover
  • Schema of measurement set-up
Short description

The ICI HH500-15 L-EFT set contains a pulse magnetic field source, which couples fast transient magnetic field pulses into test ICs.
With this set electromagnetic fault injection (EMFI) attacks can be performed. In addition, the immunity of individual areas of a test IC can be investigated.

Scope of delivery
Technical parameters
Pulse parameter
Rise time < 2 ns
Repetition frequency 0.1 Hz - 20 kHz
Polarity (set by software) + / - / alternating
Trigger-pulse delay (Bypass Mode - Delay Line)
min. Trigger-pulse delay (typ.) 100 ns (probe-specific)
max. Trigger-pulse delay (typ.) 450 ns
max. Jitter (typ.) ± 1 ns
Supply voltage BPS 202
Software BPS 202-Client / DLL (32 Bit / 64 Bit)
Win XP SP3 or higher
Scope of delivery details
