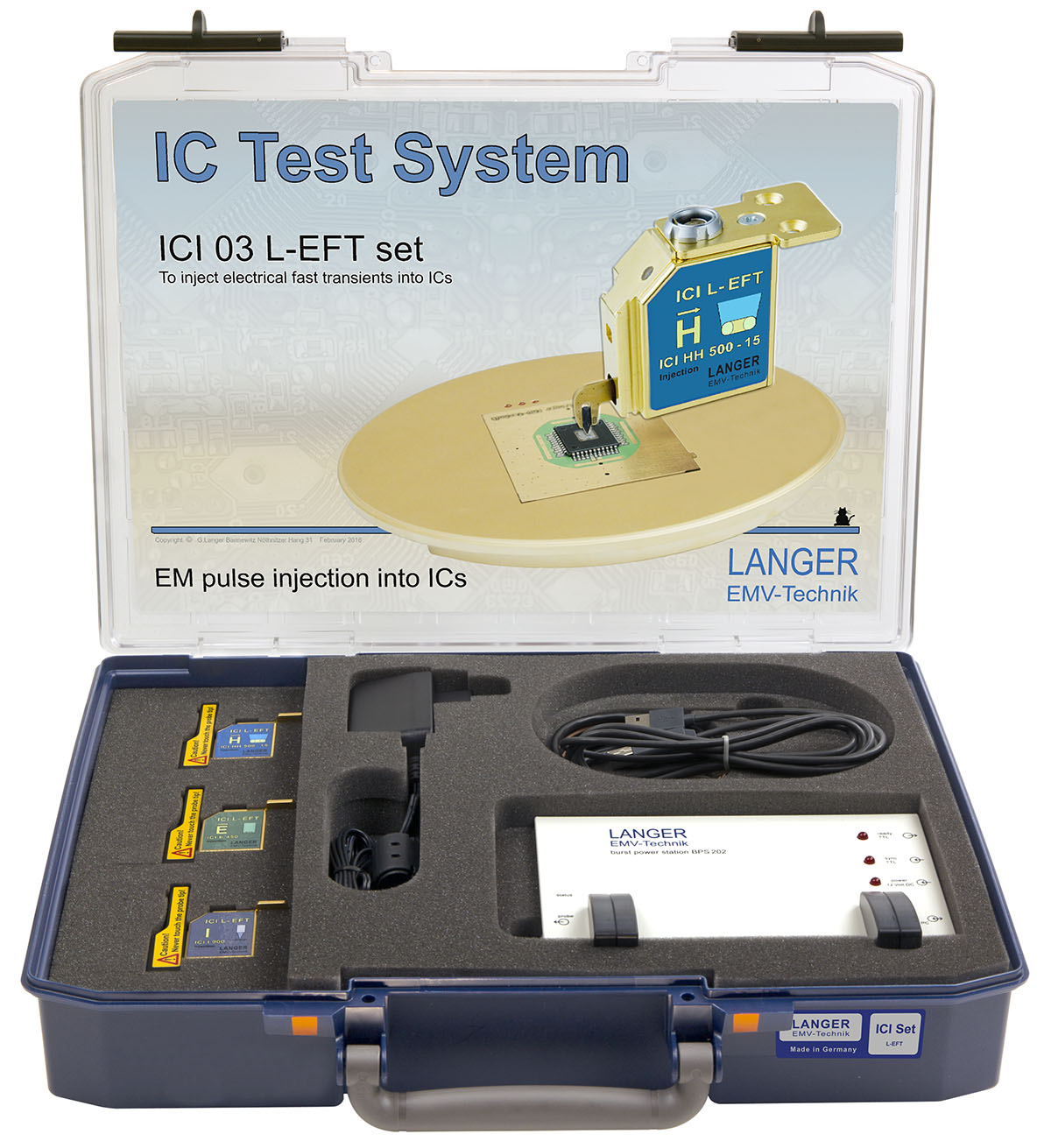

ICI 03 L-EFT set

IC EM Pulse Injection Langer Pulse

Send enquiry Datasheet
  • ICI 03 L-EFT set, IC EM Pulse Injection Langer Pulse

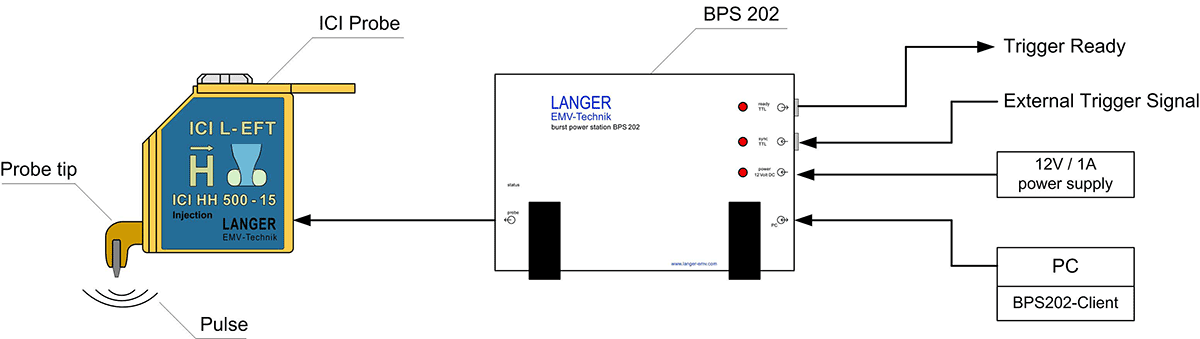

  • Schematic set-up with mover
    Schematic set-up with mover

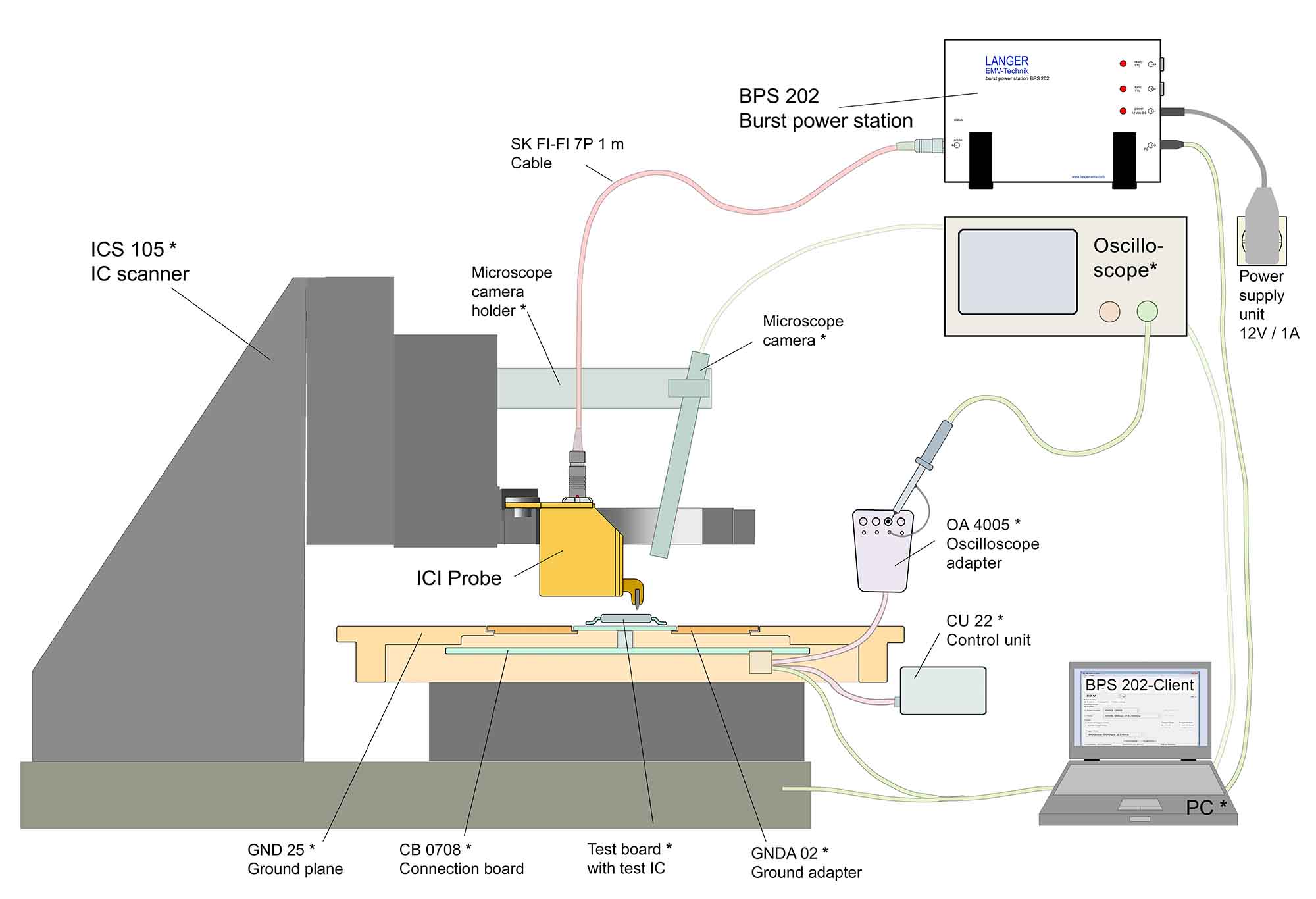

  • Schema of measurement set-up
    Schema of measurement set-up

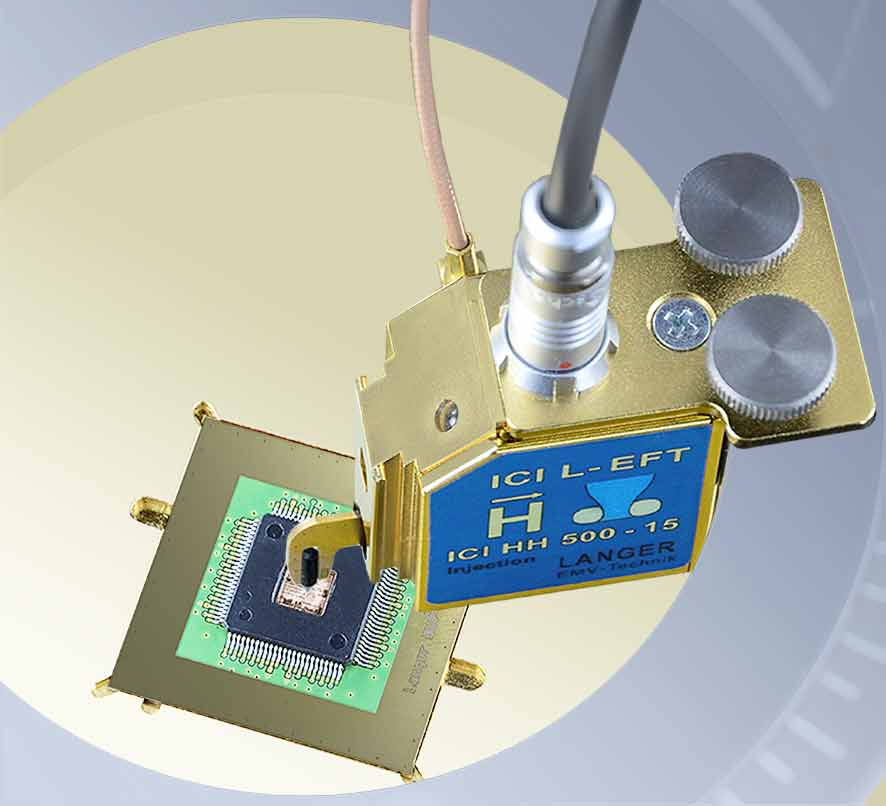

  • ICI probe in application
    ICI probe in application
ICI 03 L-EFT set, IC EM Pulse Injection Langer Pulse Schematic set-up with mover Schema of measurement set-up ICI probe in application
  • ICI 03 L-EFT set, IC EM Pulse Injection Langer Pulse
  • Schematic set-up with mover
  • Schema of measurement set-up
  • ICI probe in application
Short description

The ICI 03 L-EFT set consists of three different ICI sources emitting electric, magnetic field and current pulses. This allows high precision and very high resolution IC analysis and body bias injection. These sources allow side channel analysis e.g. to test security-critical circuits. Special features include very high resolution probe tips (allowing for the testing of extremely small areas) and a very low trigger to pulse jitter (allowing for the disruption of very specific points in the program sequence).

Scope of delivery
Technical parameters
Pulse parameter
Rise time < 2 ns
Repetition frequency 0.1 Hz - 20 kHz
Polarity (set by software) + / - / alternating
Trigger-pulse delay (Bypass Mode - Delay Line)
min. Trigger-pulse delay (typ.) 100 ns
max. Trigger-pulse delay (typ.) 450 ns
max. Jitter (typ.) ± 1 ns
Trigger-pulse delay (Timer Mode)
min. Trigger-pulse delay (typ.) 200 ns
max. Trigger-pulse delay (typ.) 100 ms
max. Jitter (typ.) ± 15 ns
Trigger delay, min. increment 10 ns
Supply voltage BPS 202
Software BPS 202-Client / DLL (32 Bit / 64 Bit)
Win XP SP3 or higher
Scope of delivery details
