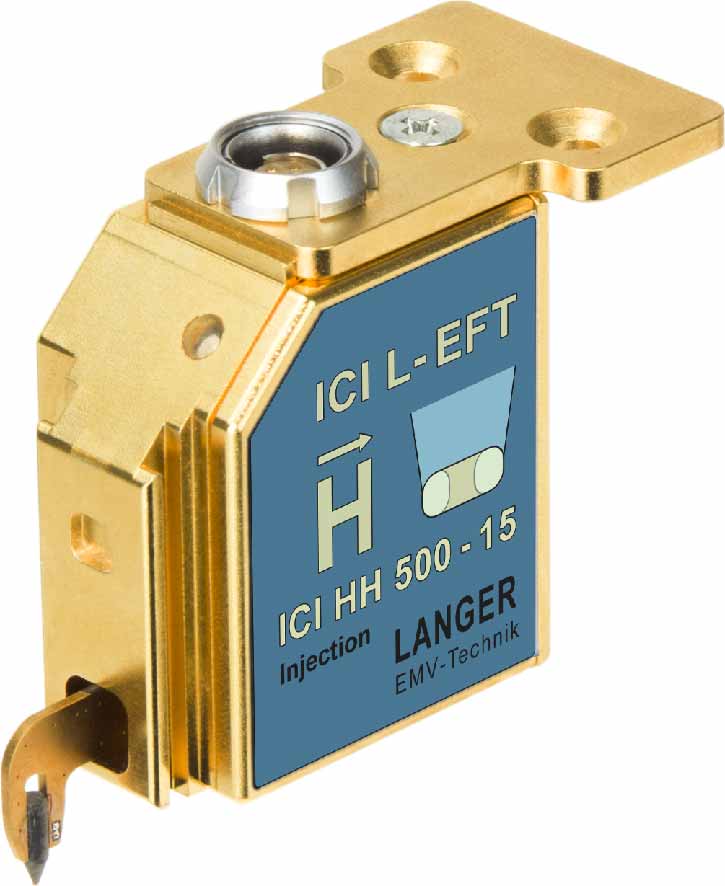

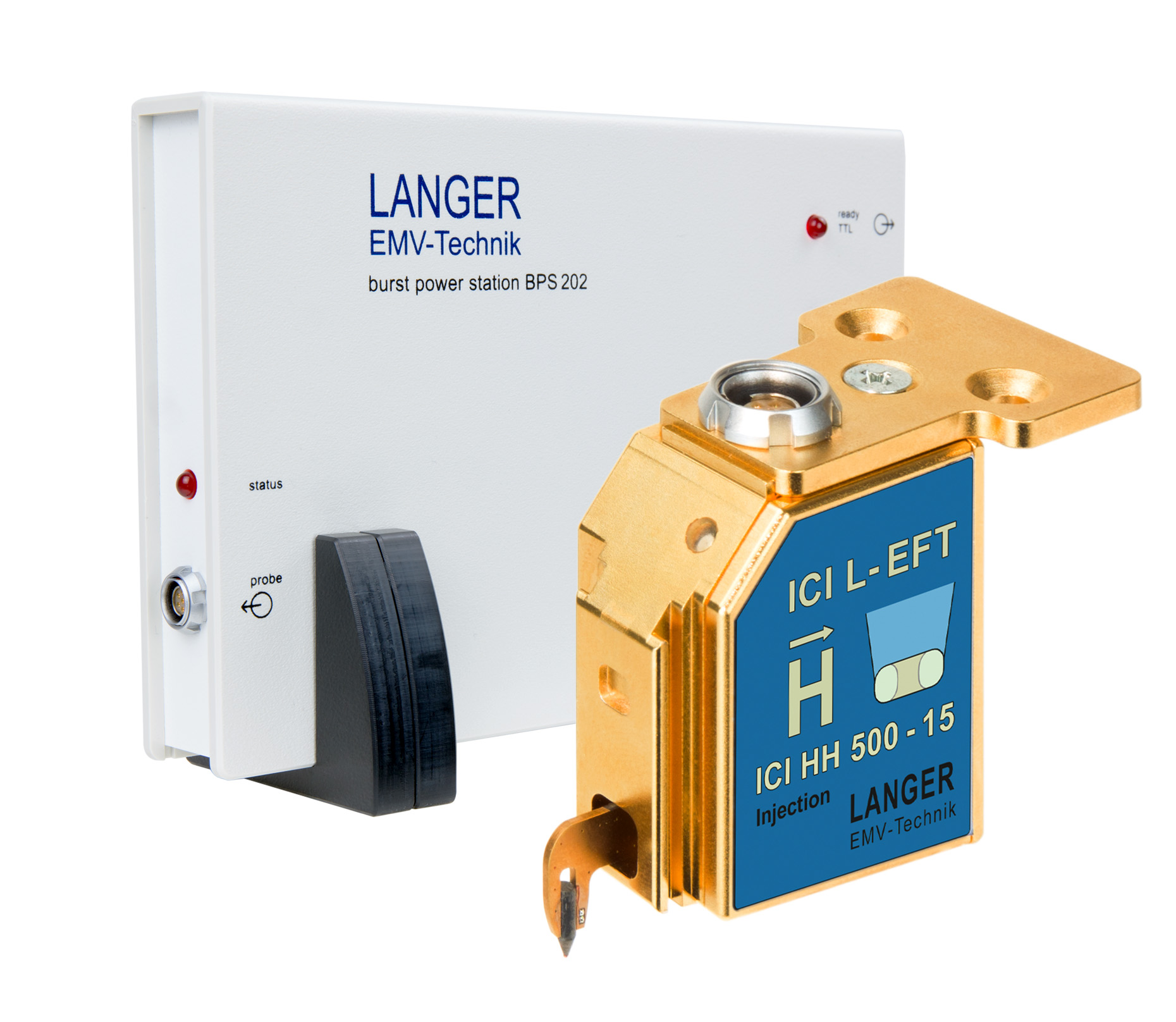

  • ICI HH500-15 L-EFT set, 脉冲磁场源 SMA

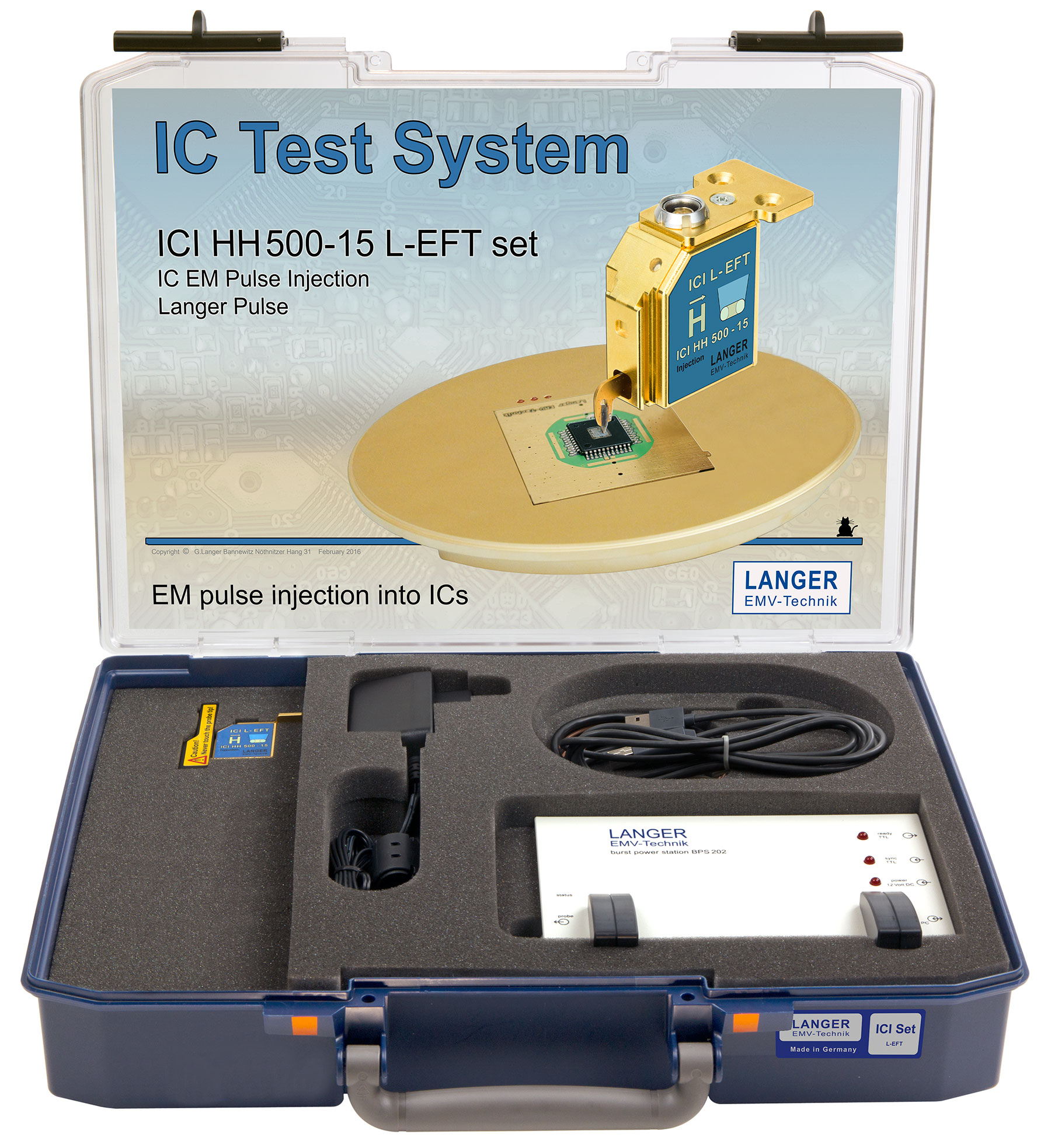

  • Contents of the case ICI HH500-15-L-EFT-set
    Contents of the case ICI HH500-15-L-EFT-set

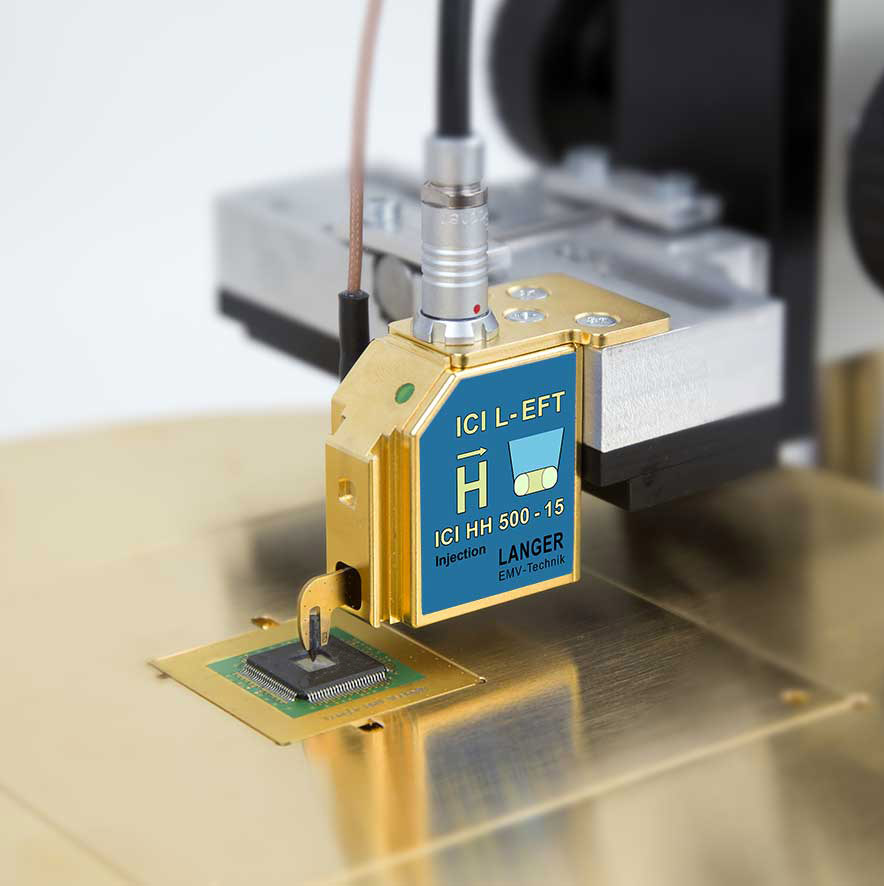

  • Application of ICI HH500-15 L-EFT pulse magnetic field source
    Application of ICI HH500-15 L-EFT pulse magnetic field source

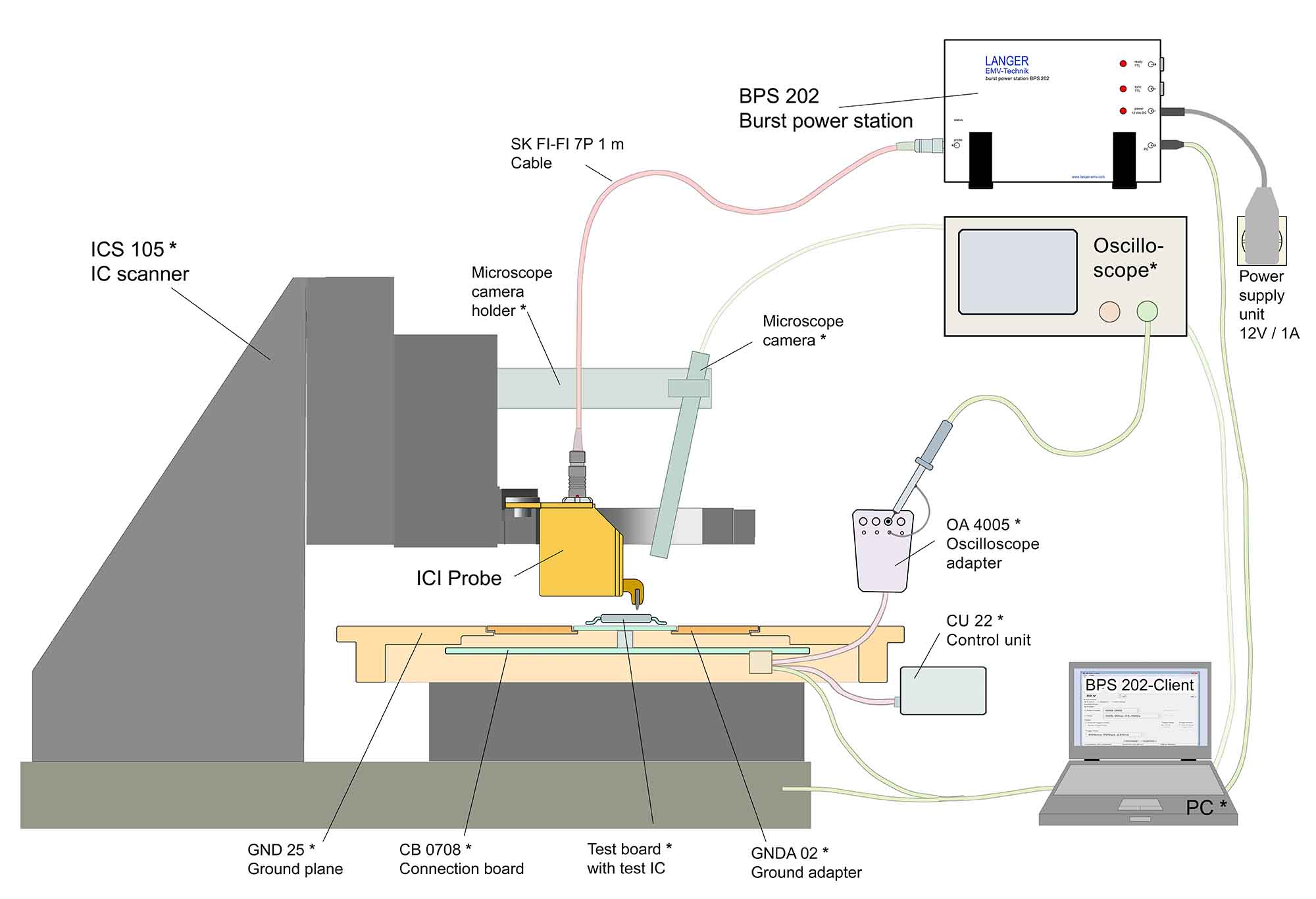

  • Schematic set-up with mover
    Schematic set-up with mover

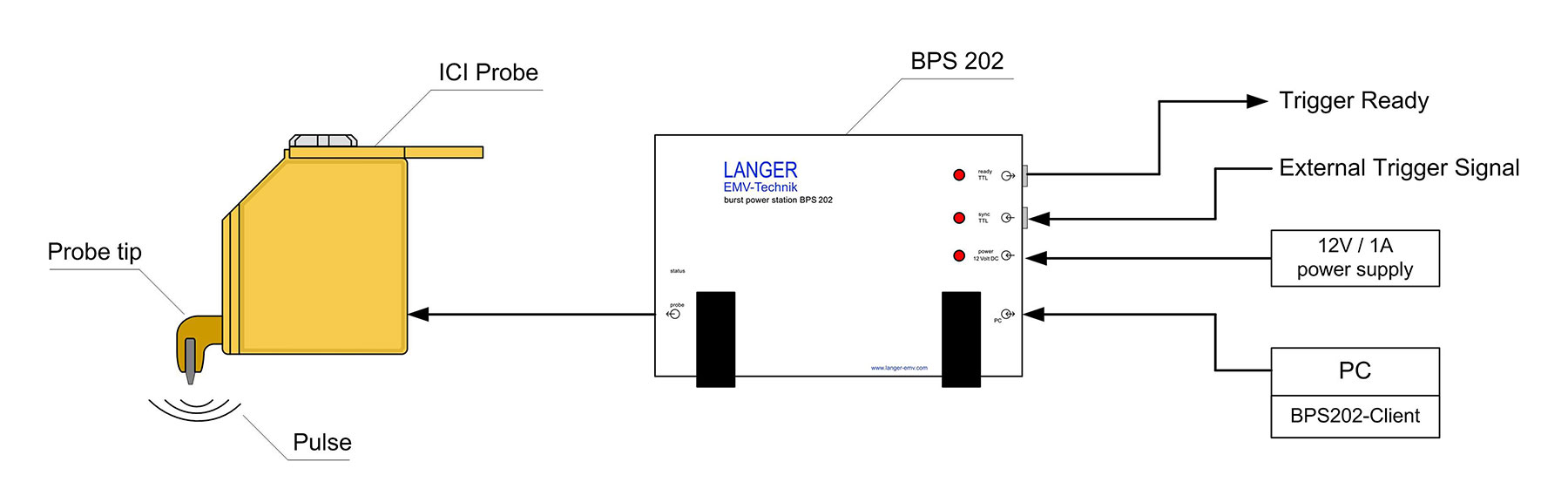

  • Schema of measurement set-up
    Schema of measurement set-up
ICI HH500-15 L-EFT set, 脉冲磁场源 SMA Contents of the case ICI HH500-15-L-EFT-set Application of ICI HH500-15 L-EFT pulse magnetic field source Schematic set-up with mover Schema of measurement set-up
  • ICI HH500-15 L-EFT set, 脉冲磁场源 SMA
  • Contents of the case ICI HH500-15-L-EFT-set
  • Application of ICI HH500-15 L-EFT pulse magnetic field source
  • Schematic set-up with mover
  • Schema of measurement set-up
Short description

ICI HH500-15 L-EFT是一个磁场源，可以布置在受测集成电路（开放式芯片）的上方。它能够产生快速瞬变脉冲（<2ns的上升时间）。通过测量磁场源实现对脉冲的监测。

Delivery content
Technical parameters
脉冲参数
上升时间 < 2 ns
重复频率 0.1 Hz - 20 kHz
极性 (set by software) + / - / alternating
触发器脉冲延迟 (Bypass Modus - Delay Line)
min. 触发器脉冲延迟 (typ.) 100 ns (probe-specific)
max. 触发器脉冲延迟 (typ.) 450 ns
max. Jitter (typ.) ± 1 ns

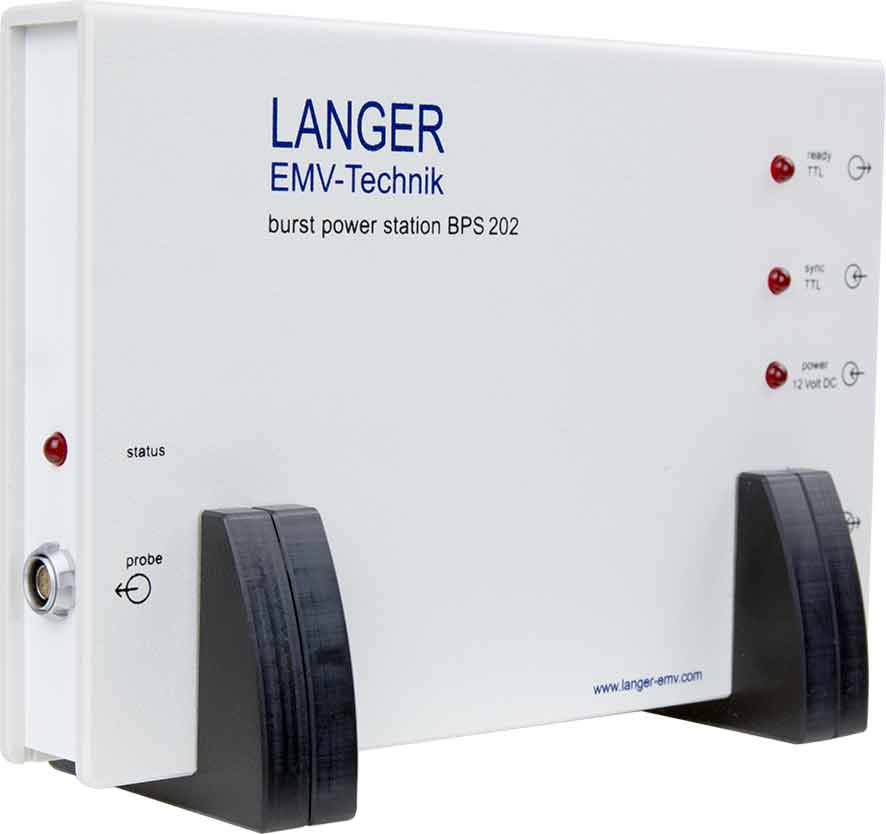

电源电压 BPS 202
软件 BPS 202-Client / DLL (32 Bit / 64 Bit)
Win XP SP3 or higher
