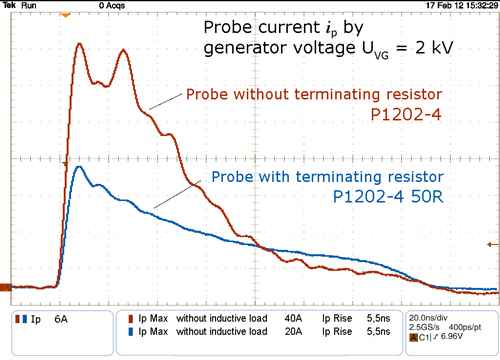

The P1202-4 field source is powered by an EFT/Burst generator (IEC 61000-4-4). It does not synchronize with the EFT/Burst generator. Therefore, reflection processes result in the current flow. Such reflection processes occur during practical device testings according to the standard ICE 61000-4-4 and are reproduced by P1202-4. In the field source conductor without a terminating resistor, the flowing current is twice that of the field source with a terminating resistor (P1202-4 50R).

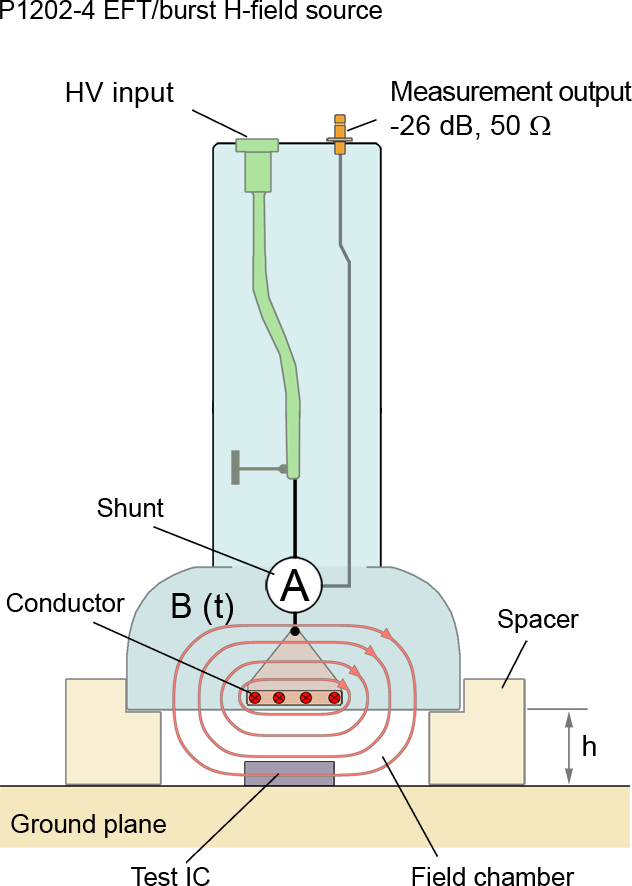

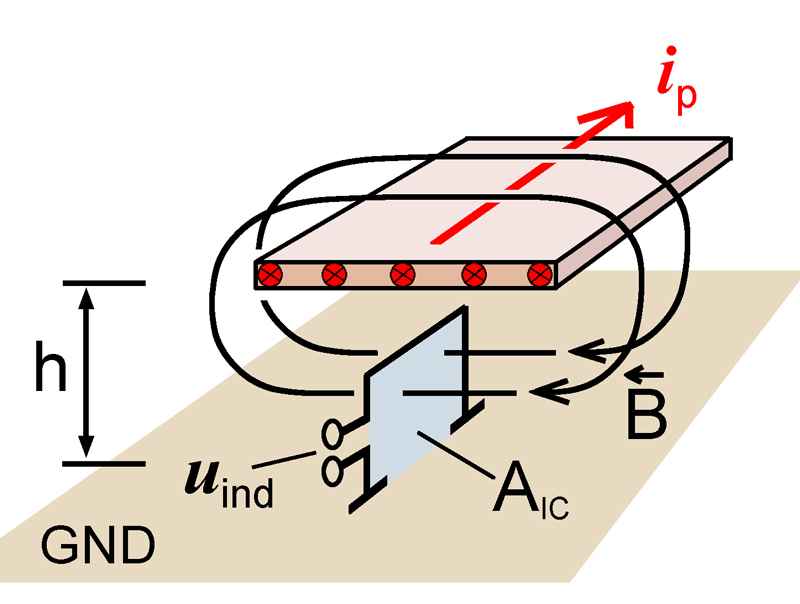

The P1202-4 field source is arranged at a defined distance above the IC with the help of a spacer ring.

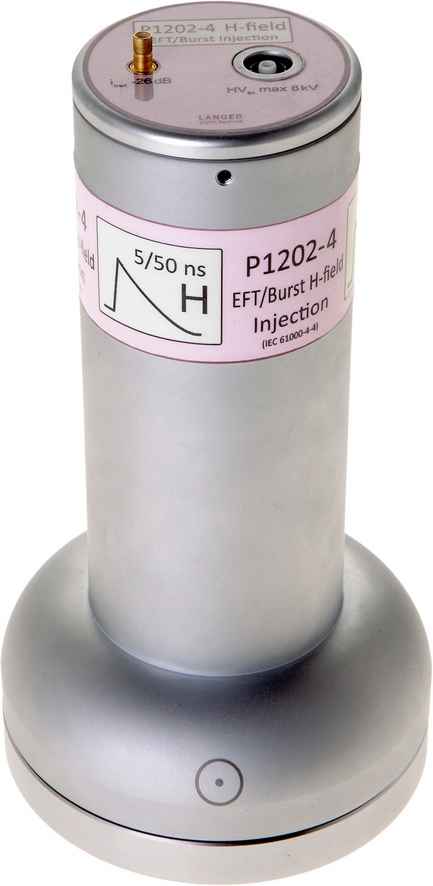

It has two connections. A Fischer socket (D103A023) for the connection to an EFT/Burst generator and a SMB measurement output for the connection of an oscilloscope for monitoring the EFT current. Delivery includes the HV FI-FI 1m RF cable (Fischer connector-Fischer connector). On request, the RF cable with the connection Fischer socket-SHV socket (HV FI-SHV 1m) can be ordered.
