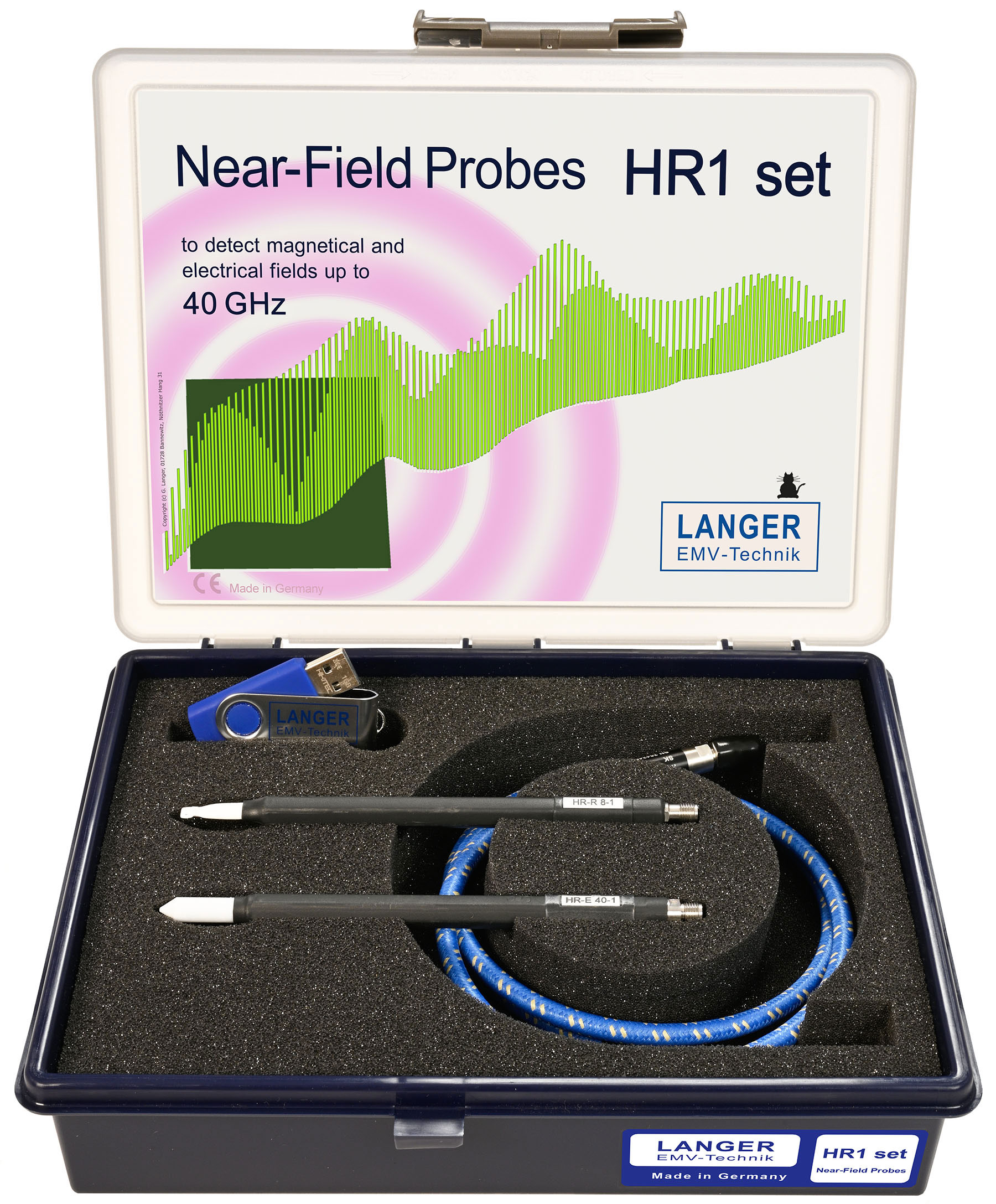

HR1 set

Near-Field Probes up to 40 GHz

The HR1 set contains one E-field probe HR-E 40-1 and one magnetic field probe HR-R 8-1 each for the development-accompanying measurement of magnetic and electric field in the frequency range up to 40 GHz.

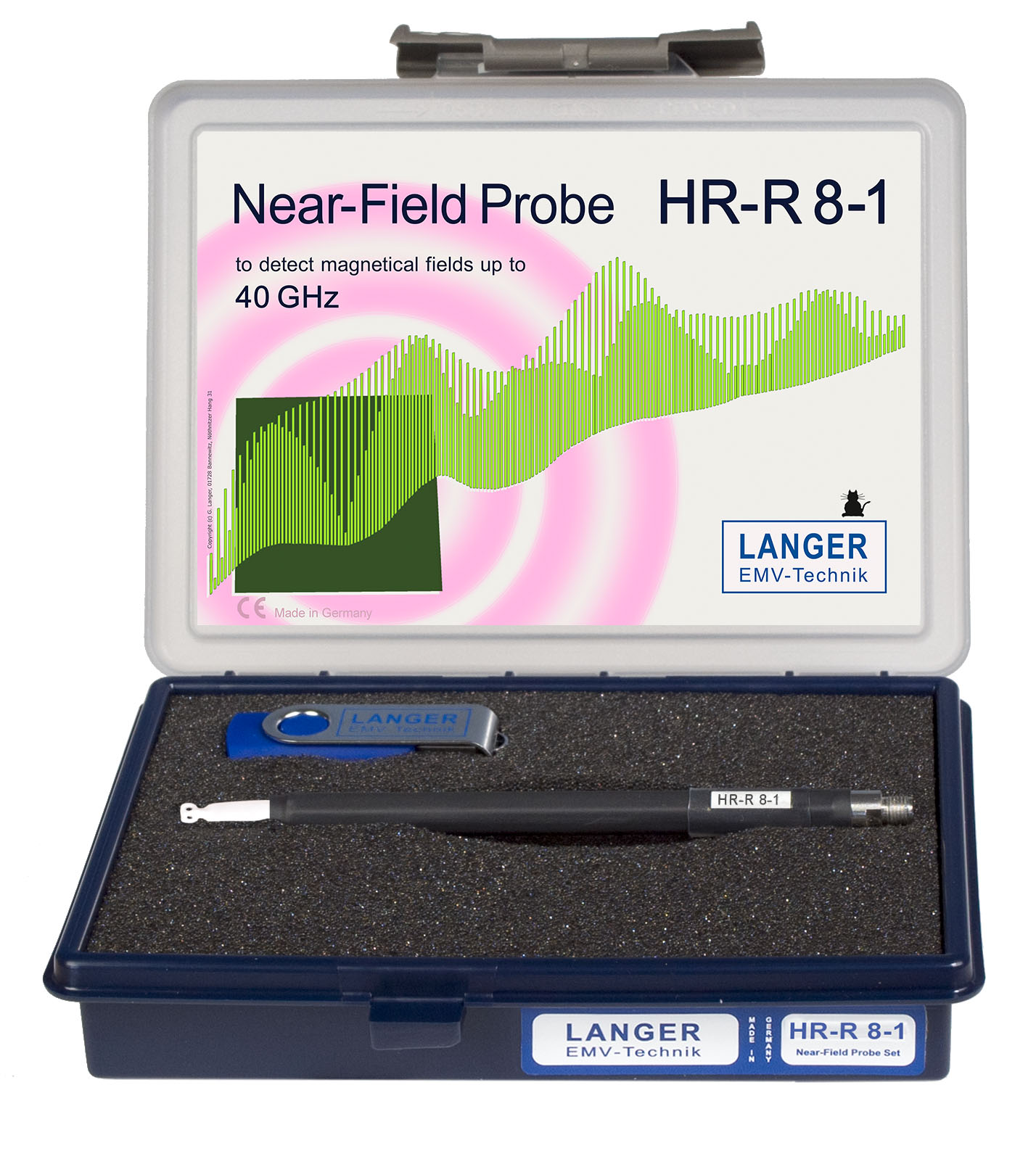

HR-R 8-1 set

Near-Field Probe Set up to 40 GHz B-field

The HR-R 8-1 set contains the HR-R 8-1 B field probe. With this probe magnetic field measurements up to 40 GHz can be performed. The special probe head of the HR-R 8-1 allows measurements on IC's, circuit board structures and components for the localization of high frequency magnetic fields.

HR-R 8-1

Near-field probe up to 40 GHz B-field

The HR-R 8-1 is a passive near-field probe for measuring magnetic fields up to 40 GHz. The measuring tip is decoupled from the cable shield by special damping systems. In addition, the probe contains a current attenuator. The probe has a internal matching network to 50 ohm.

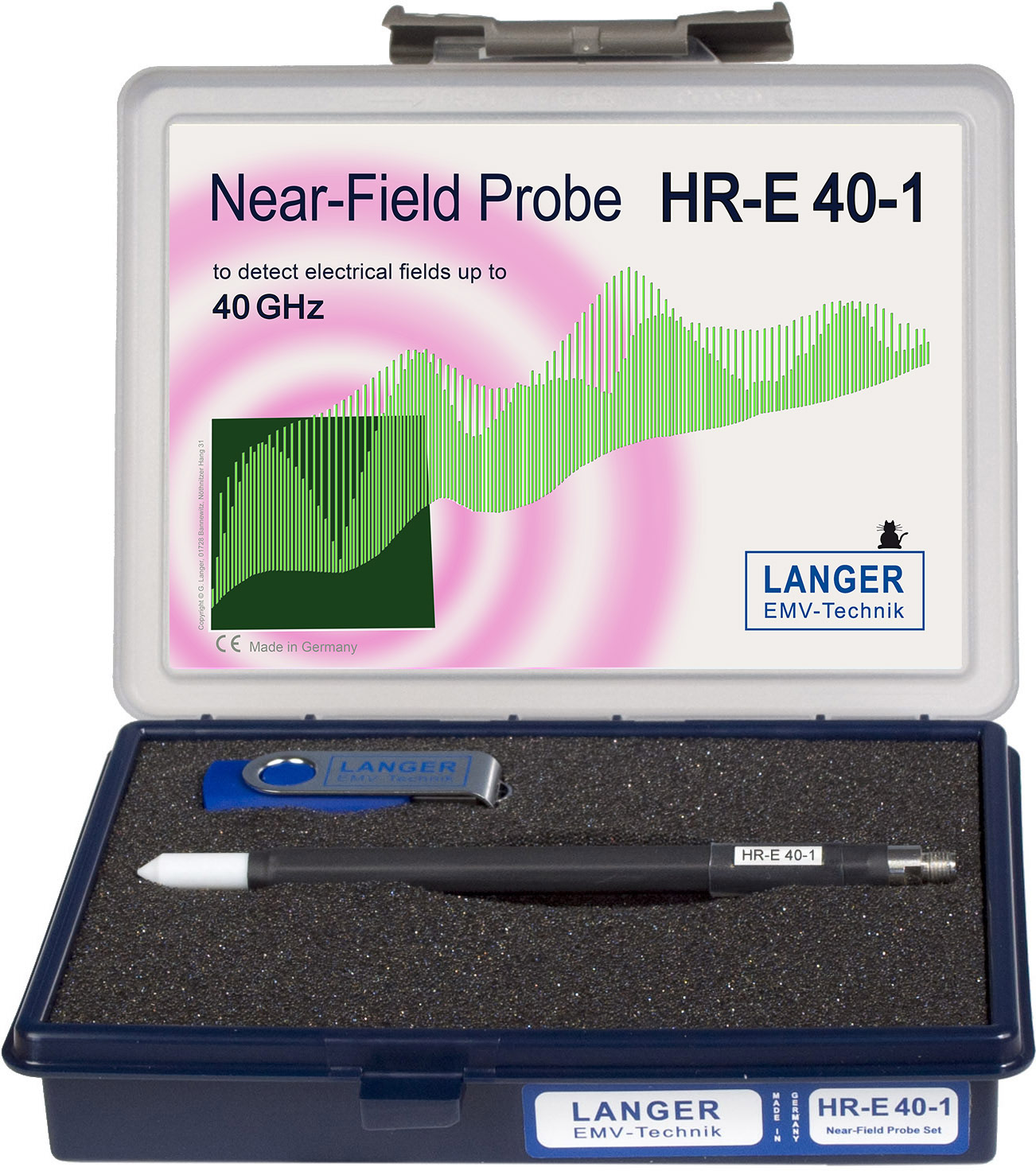

HR-E 40-1 set

Near-Field Probe Set up to 40 GHz E-field

The HR-E 40-1 set contains the HR-E 40-1 E-field probe. With this field probe measurements up to 40 GHz can be performed. The special probe head of the HR near-field probe enables measurements to be taken directly on individual conductor tracks to localize E-field sources.

HR-E 40-1

E-Field Probe up to 40 GHz

The HR-E 40-1 is a passive near-field probe for measuring electric fields up to 40 GHz. The measuring tip is decoupled from the cable shield by special damping systems. In addition, the probe contains a current attenuator.
