Comparison of Measurement Resolution and Frequency Ranges

1. Comparison of ICR HV Probes
with a Vertical Measuring Coil

Type of Probe (HV)	Inner Diameter	Frequency Range	Measurement Resolution
ICR HV100-27	100 µm	1.5 MHz - 6 GHz	60 µm
ICR HV100-6	100 µm	2.5 MHz - 6 GHz	60 µm
ICR HV150-27	150 µm	1.5 MHz - 6 GHz	80 µm
ICR HV150-6	150 µm	2.5 MHz - 6 GHz	80 µm
ICR HV250-75	250 µm	500 kHz - 2 GHz	110 µm
ICR HV250-6	250 µm	2.5 MHz - 6 GHz	110 µm
ICR HV500-75	500 µm	200 kHz - 1 GHz	300 µm
ICR HV500-6	500 µm	2 MHz - 6 GHz	300 µm

Probes named with ICR HVxxx-27/-75 are characterized by a higher gain in the lower frequency range. (See frequency responses of HH near-field microprobes at the bottom.)

2. Comparison of ICR HH Probes
with a Horizontal Measuring Coil

Type of Probe (HH)	Inner Diameter	Frequency range	Measurement Resolution
ICR HH100-27	100 µm	1.5 MHz - 6 GHz	70 µm
ICR HH100-6	100 µm	2.5 MHz - 6 GHz	70 µm
ICR HH150-27	150 µm	1.5 MHz - 6 GHz	100 µm
ICR HH150-6	150 µm	2.5 MHz - 6 GHz	100 µm
ICR HH250-75	250 µm	500 kHz - 2 GHz	150 µm
ICR HH250-6	250 µm	2.5 MHz - 6 GHz	150 µm
ICR HH500-75	500 µm	200 kHz - 1 GHz	300 µm
ICR HH500-6	500 µm	2 MHz - 6 GHz	300 µm

Probes named with ICR HHxxx-27/-75 are characterized by a higher gain in the lower frequency range.

Frequency response HH250-75 up to 2 GHz.

Frequency response HH500-75 up to 1 GHz.

Downloads

ICR Near-Field Microprobes overview

Gewicht	25 g

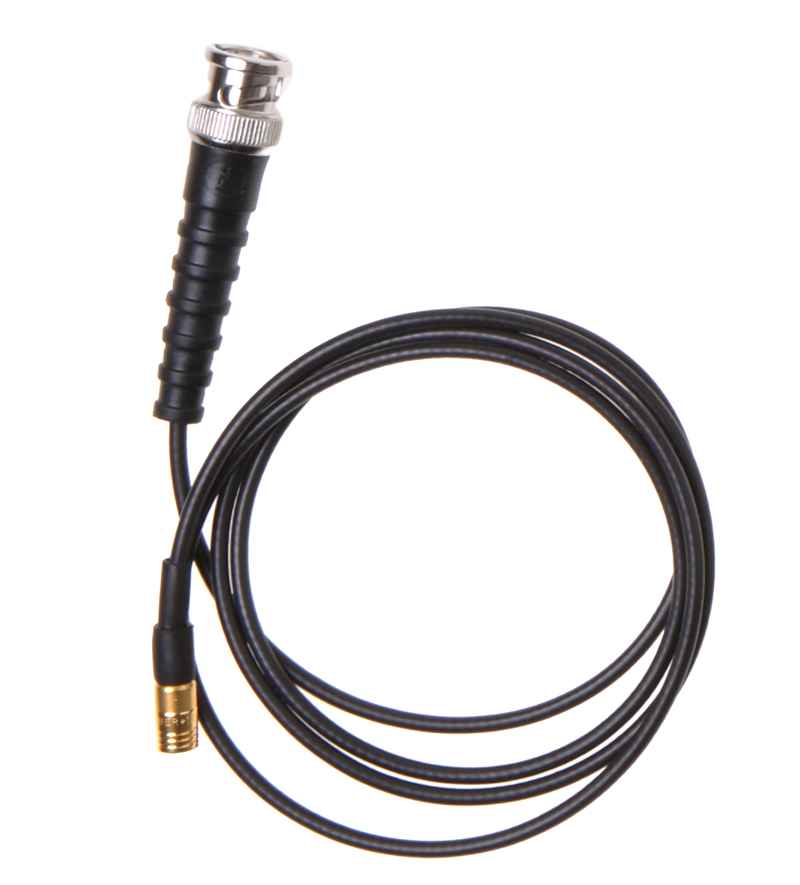

Maße (L x B x H)	1 m

Kurzbeschreibung

Technische Parameter
