P622

RF Current Probe 0.1 Ohm active

Send enquiry Datasheet
  • P622, RF Current Probe 0.1 Ohm active
  • Application with P622

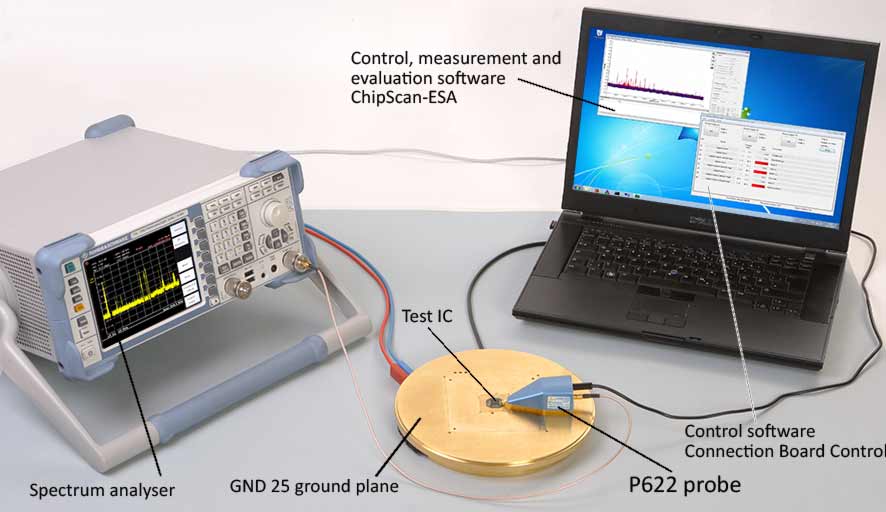

    Application with P622
P622, RF Current Probe 0.1 Ohm active Application with P622
  • P622, RF Current Probe 0.1 Ohm active
  • Application with P622
Short description

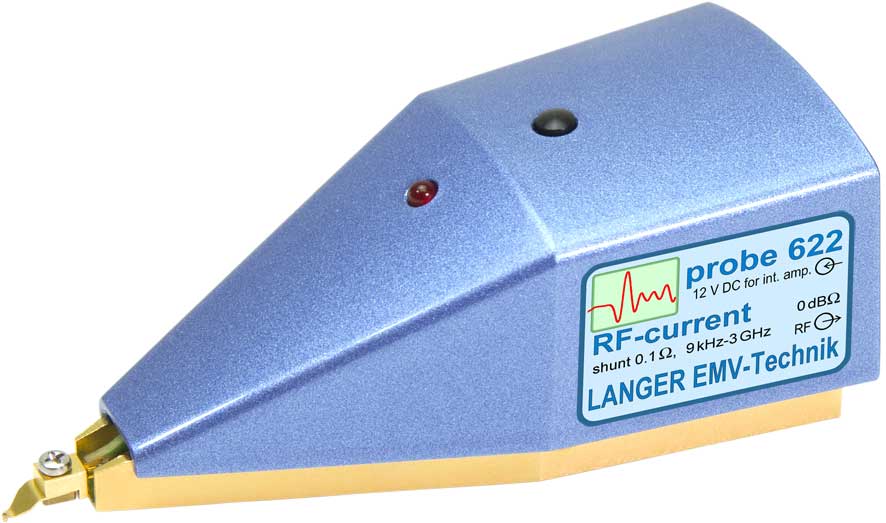

The P622 is a 0.1 ohm probe with an integrated preamplifier for direct measurement of high frequency (RF) current at IC pins. The measurement error, which is due to the very small resistance, is lower compared to P603. It is designed to measure supply pins (Vdd / Vss) and signal pins.

Technical parameters
Frequency range 9 kHz ... 3 GHz
Coupling capacity 8 µF
Transfer factor voltage 20 dB
Ammeter /current probe
-1 dB compression point (output) 120 dBµV
IP3 134 dBµV
Measurement output 50 Ω, SMB
Noise figure 3.7 dB
Shunt 0.1 Ω
Current correction factor R 0 dBΩ
Inductance 1 nH
Supply voltage 12 V / DC
Max. power dissipation 2.5 W

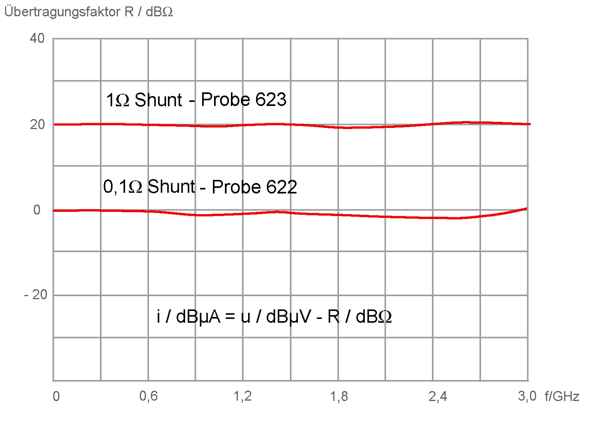

Frequency response Frequency response Frequency response

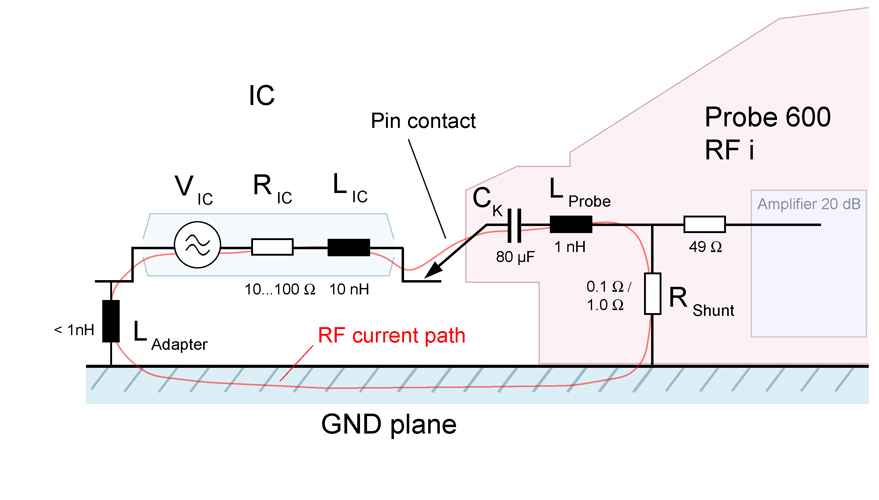

Equivalent circuit Equivalent circuit Equivalent circuit

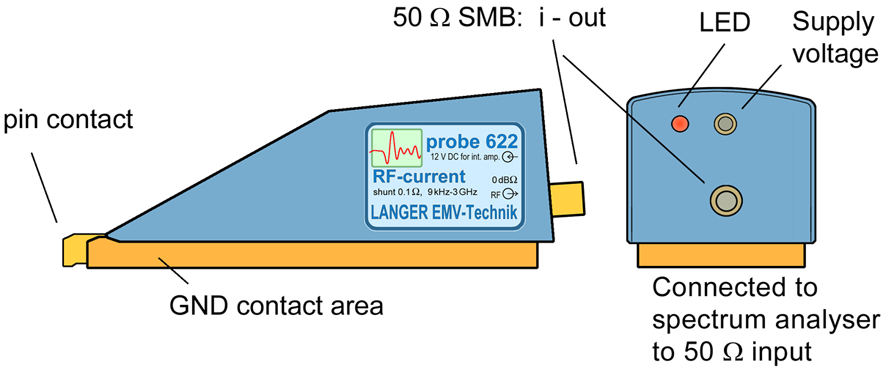

Design, view 1 Design, view 1 Design, view 1
