P501 / P503 set
RF Power Injection IEC 62132-4 up to 3 GHz
-
-

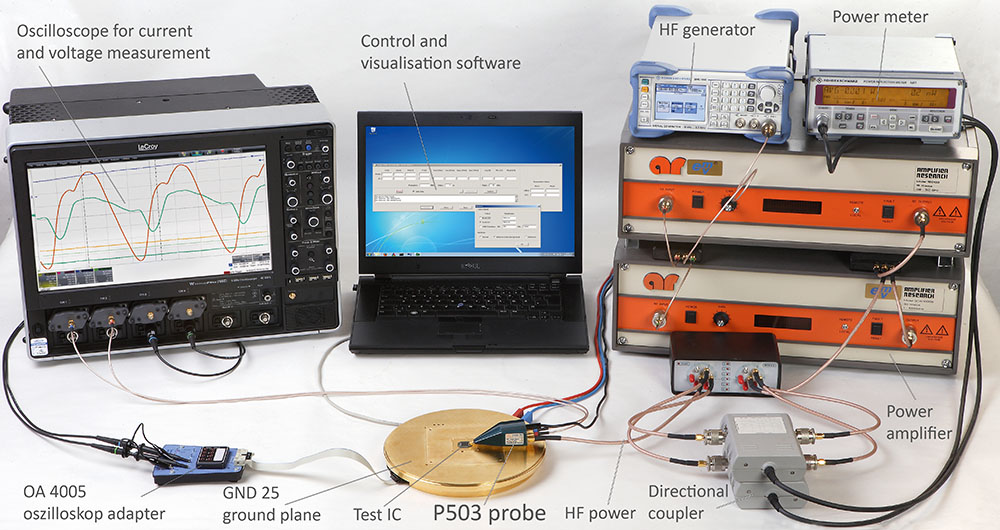

Measurement set-up with P503 probe -

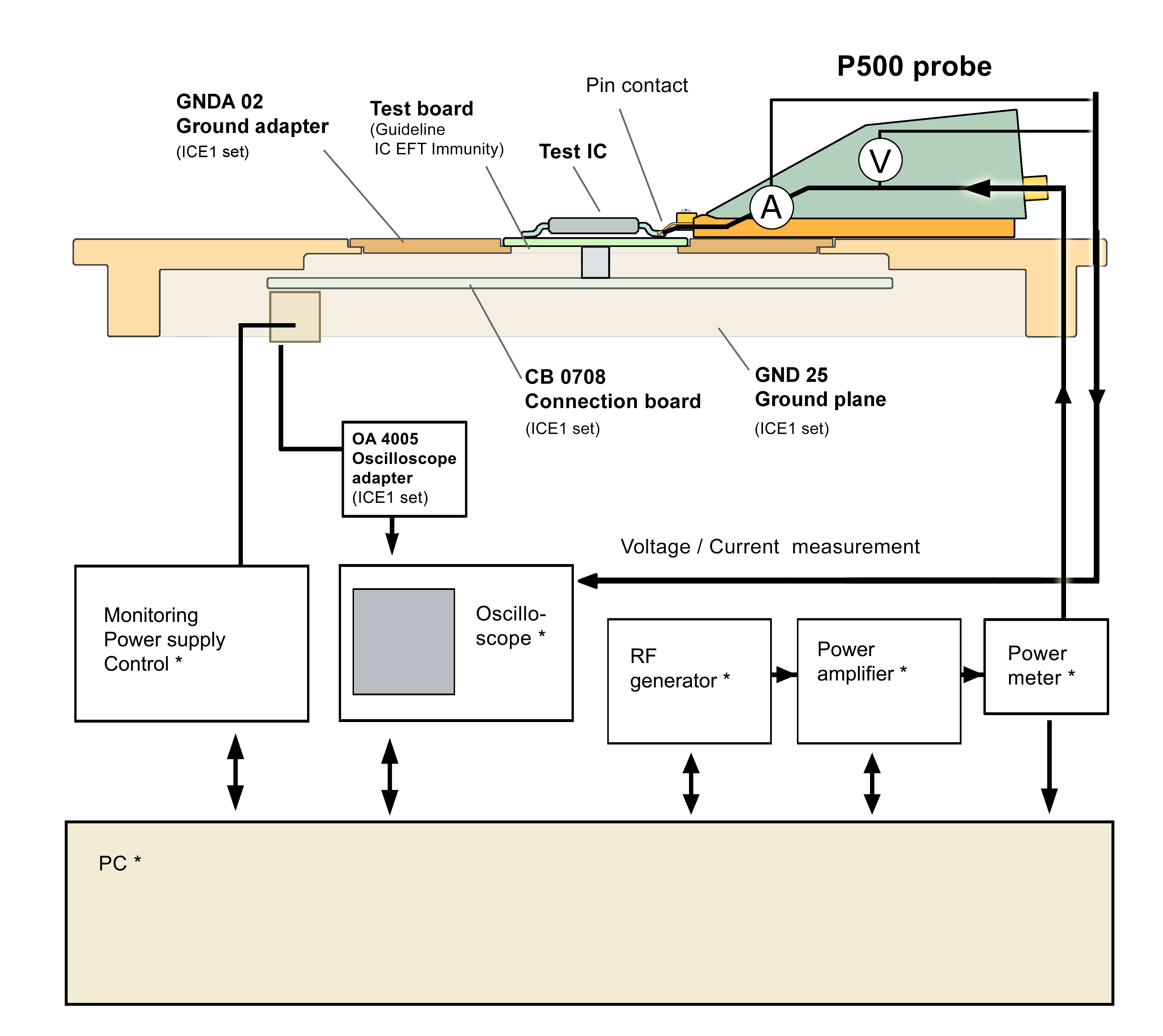

Schematic measurement set up with P500 -

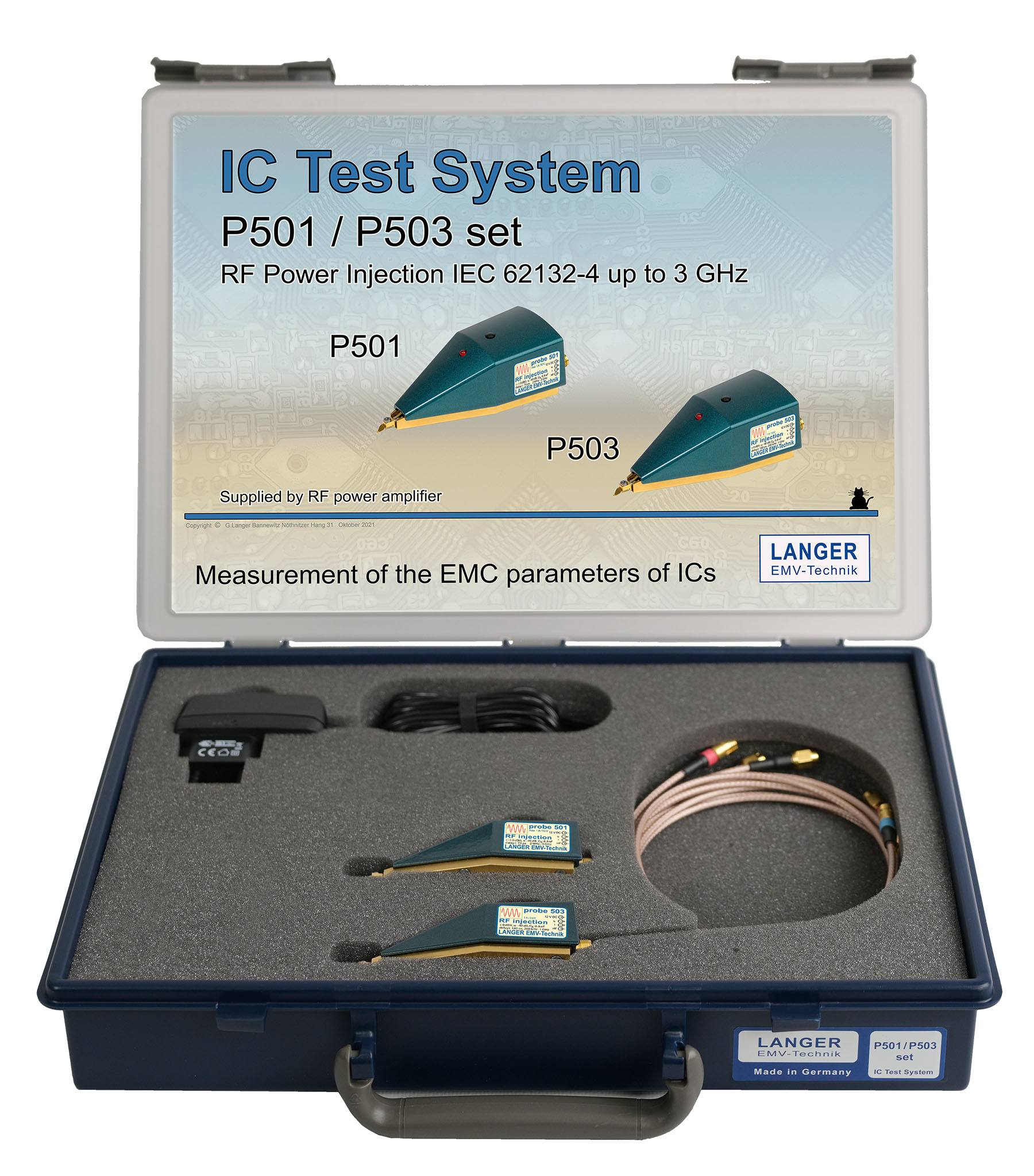

Scope of delivery P501/P503 set
Short description
The P501/P503 probe set is used for conducted measurements of immunity according to IEC 62132-4. The gained knowledge of immunity parameters allows the IC optimization as well as the definition of the application requirements.
Available DPI couple networks (P501, P503) allow the RF coupling with different frequency ranges

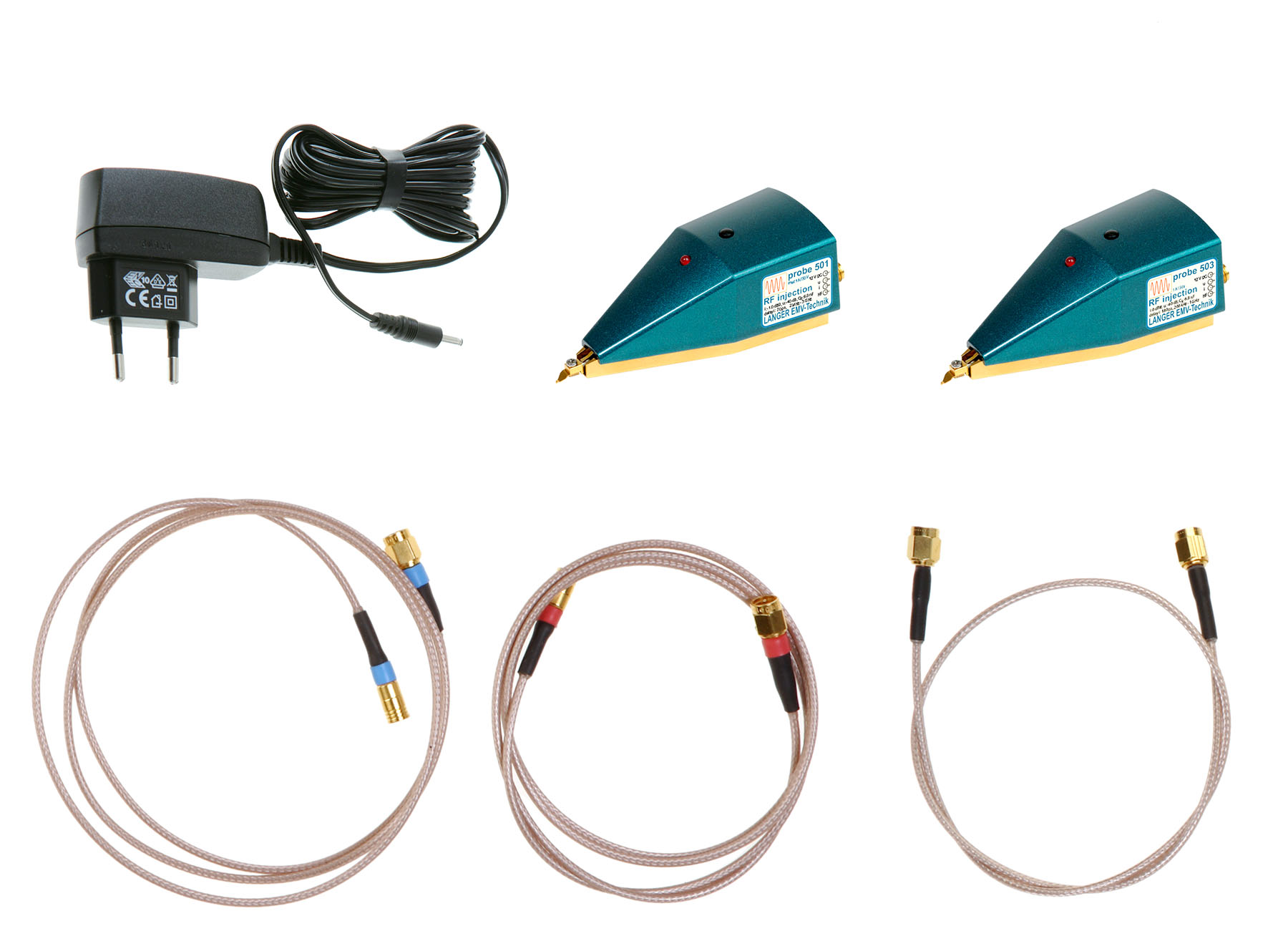

Scope of delivery
- 1x P501, DPI Coupling Network up to 3 GHz, 50 V
- 1x P503, DPI Coupling Network up to 1 GHz, 50 V
- 1x SMA-SMA 1 m ds, SMA-SMA Double-Shielded Measurement Cable
- 2x SMA-SMB 1 m ds, SMA-SMB Double-Shielded Measurement Cable
- 1x NT FRI EU, Power Supply Unit
- 1x P500 case, System Case
- 1x P500 qg, P500 Set Quick Guide
- 1x P500 m, P500 Set User Manual
Scope of delivery details
-

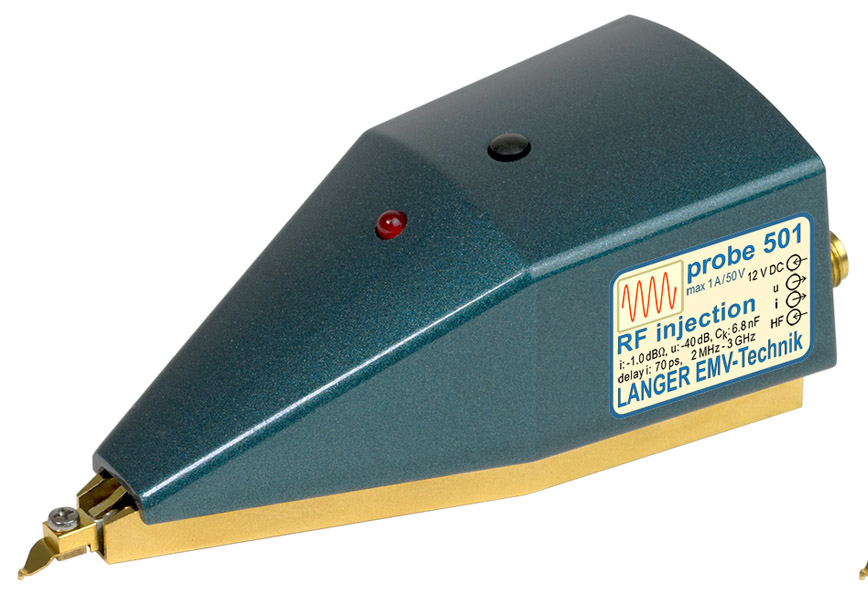

P501
DPI Coupling Network up to 3 GHz, 50 V
The P501 DPI coupling network is designed for RF direct power injection (DPI) in IC pins according to IEC 62132-4. Current and voltage can be measured seperately during the power injection via integrated measuring outputs. The P501 coupling network is connected to a power amplifier.
-

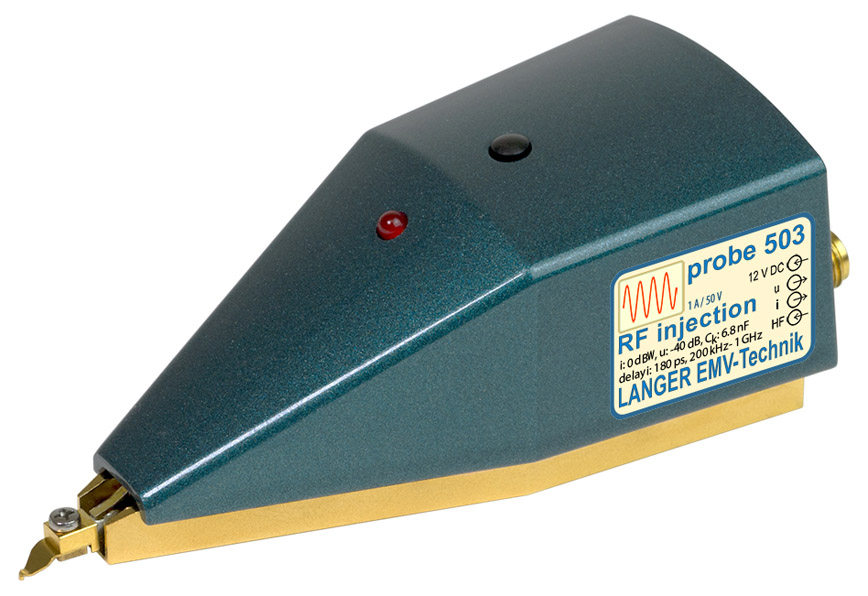

P503
DPI Coupling Network up to 1 GHz, 50 V
The P503 DPI coupling network is designed for RF direct power injection (DPI) in IC pins according to IEC 62132-4. Current and voltage can be measured seperately during the power injection via integrated measuring outputs. The P503 coupling network is connected to a power amplifier.
