XFS-E 10

Scanner Probe 30 MHz up to 6 GHz

Send enquiry Datasheet

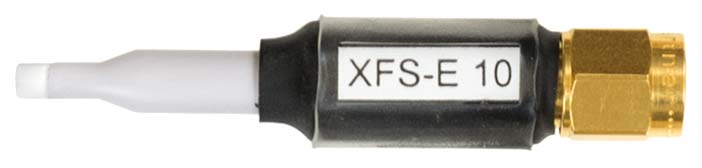

XFS-E 10, Scanner Probe 30 MHz up to 6 GHz
  • XFS-E 10, Scanner Probe 30 MHz up to 6 GHz
Short description

The electrode in the probe head of the XFS-E 10 scanner probe has a width of approx. 0.2 mm. With the probe even smallest E-field sources can be located, e.g. conducting paths with a width of 0.1 mm or single pins on multi pinned ICs. To measure, the E-field probe is positioned onto the object.

The XFS-E 10 probe is a passive near-field probe. Normally the probe head is positioned directly onto the measured object (high electric field strength). It has a current attenuating sheath and, therefore, is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. The H-field scanner probe has an internal terminating resistance.

Technical parameters
Frequency response [dBµV] / [dBµA/m] E- field correction curve [dBµV/mm] / [dBµV] Measuring principles
Frequency range 30 MHz ... 6 GHz
Resolution ≈ 0.2 mm
Probe head dimensions: ≈ (0.5 x 2) mm
Connector - output SMA, male, jack
Frequency response [dBµV] / [dBµA/m] Frequency response [dBµV] / [dBµA/m]
E- field correction curve [dBµV/mm] / [dBµV] E- field correction curve [dBµV/mm] / [dBµV]
Measuring principles Measuring principles
