LF-R 50

H-Field Probe 100 kHz up to 50 MHz

Send enquiry Datasheet
  • LF-R 50, H-Field Probe 100 kHz up to 50 MHz

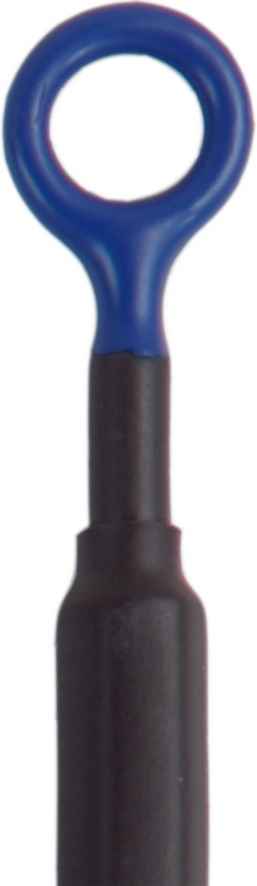

  • Probe head
    Probe head
LF-R 50, H-Field Probe 100 kHz up to 50 MHz Probe head
  • LF-R 50, H-Field Probe 100 kHz up to 50 MHz
  • Probe head
Short description

The H-field probe LF-R 50 is designed to measure assemblies, devices, or cables at a distance up to 3 cm. This allows larger components to be detected as possible sources of interference.

The LF-R 50 is a passive near-field probe.

Due to its diameter, sensitivity, and resolution the LF-R 50 functions between the ranges of the LF-R 400 and LF-R 3 near-field probes.

The near-field probe is small and handy. It has a current attenuating sheath and, therefore, is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. The H-field probe does not have an internal terminating resistance of 50 Ω.

Technical parameters
Frequency response [dBµV] / [dBµA/m] H-field correction curve [dBµA/m] / [dBµV] Current correction curve [dBµA] / [dBµV] Measuring principles
Frequency range 100 kHz ... 50 MHz
Probe head dimensions: Ø ≈ 10 mm
Connector - output SMB, male, jack
Frequency response [dBµV] / [dBµA/m] Frequency response [dBµV] / [dBµA/m]
H-field correction curve [dBµA/m] / [dBµV] H-field correction curve [dBµA/m] / [dBµV]
Current correction curve [dBµA] / [dBµV] Current correction curve [dBµA] / [dBµV]

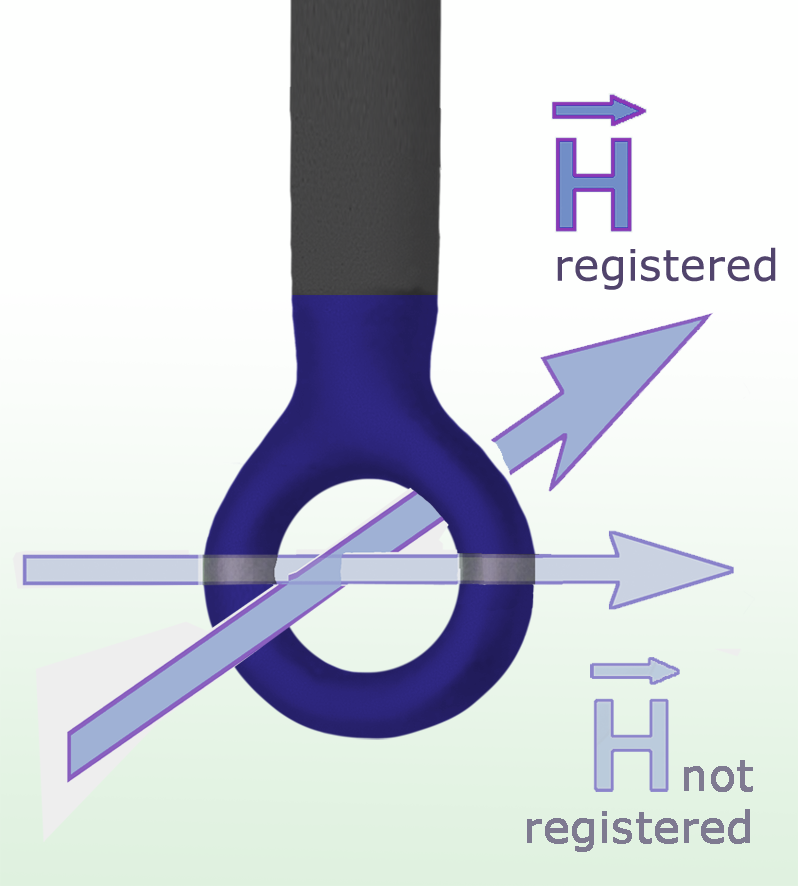

Measuring principles Measuring principles
