ICI-DP HH150-15 set

Double Pulse Magnetic Field Source set

Send enquiry Datasheet

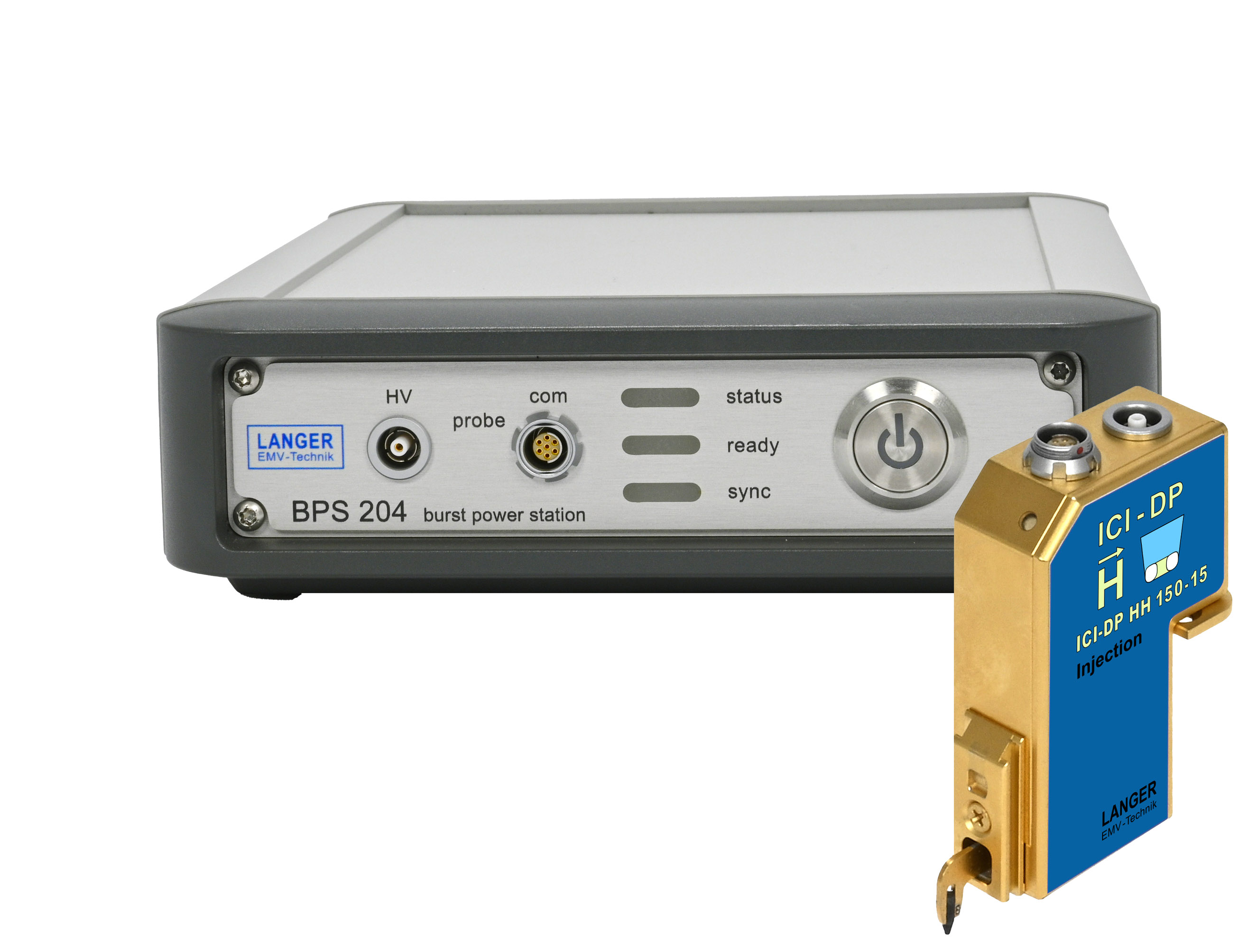

  • ICI-DP HH150-15 set, Double Pulse Magnetic Field Source set
  • Contents of the case ICI-DP HH150-15 set

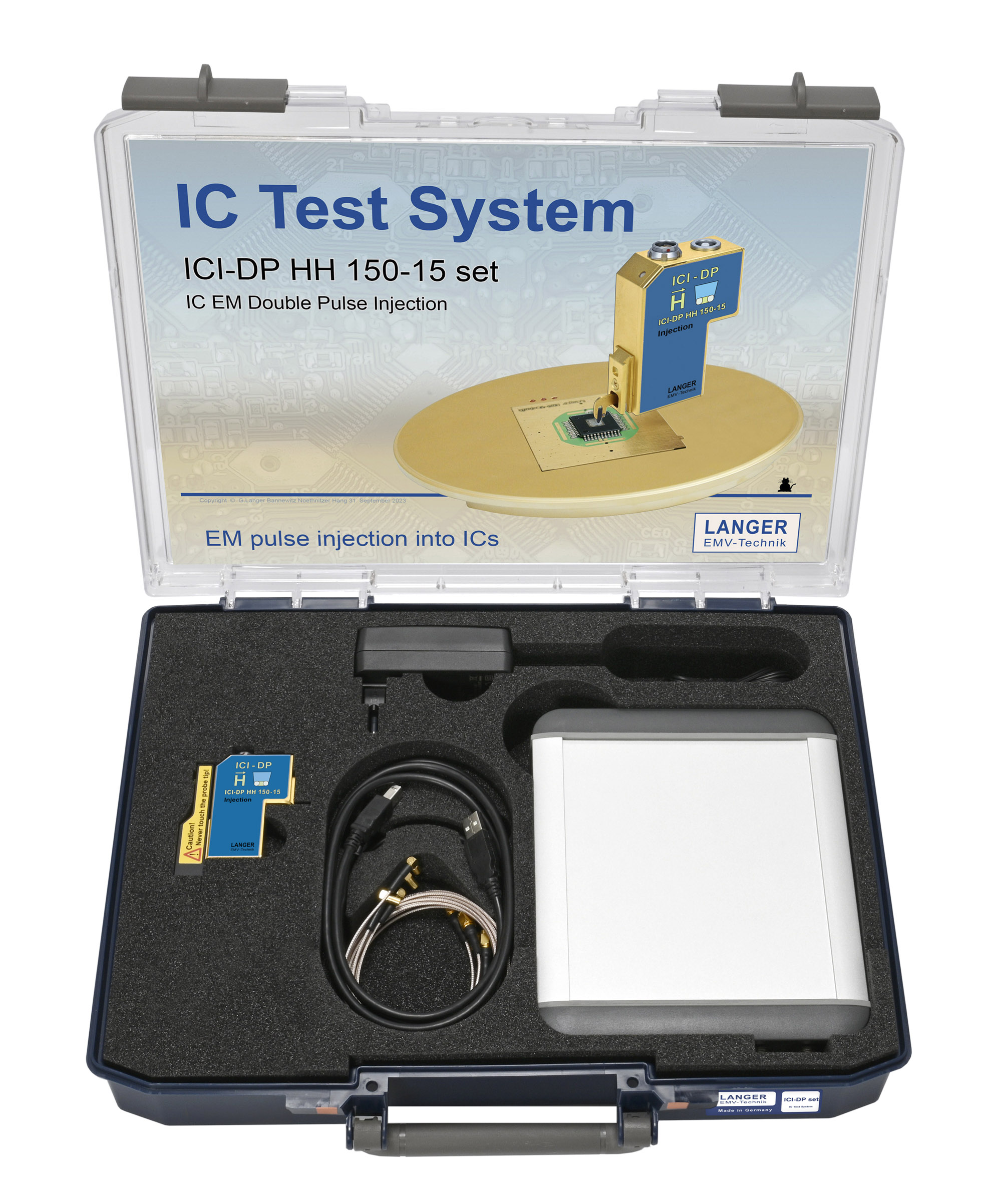

    Contents of the case ICI-DP HH150-15 set
  • Schematic set-up with mover
    Schematic set-up with mover
  • Fault injection measuring station with Langer IC scanner
    Fault injection measuring station with Langer IC scanner
  • Scope of delivery

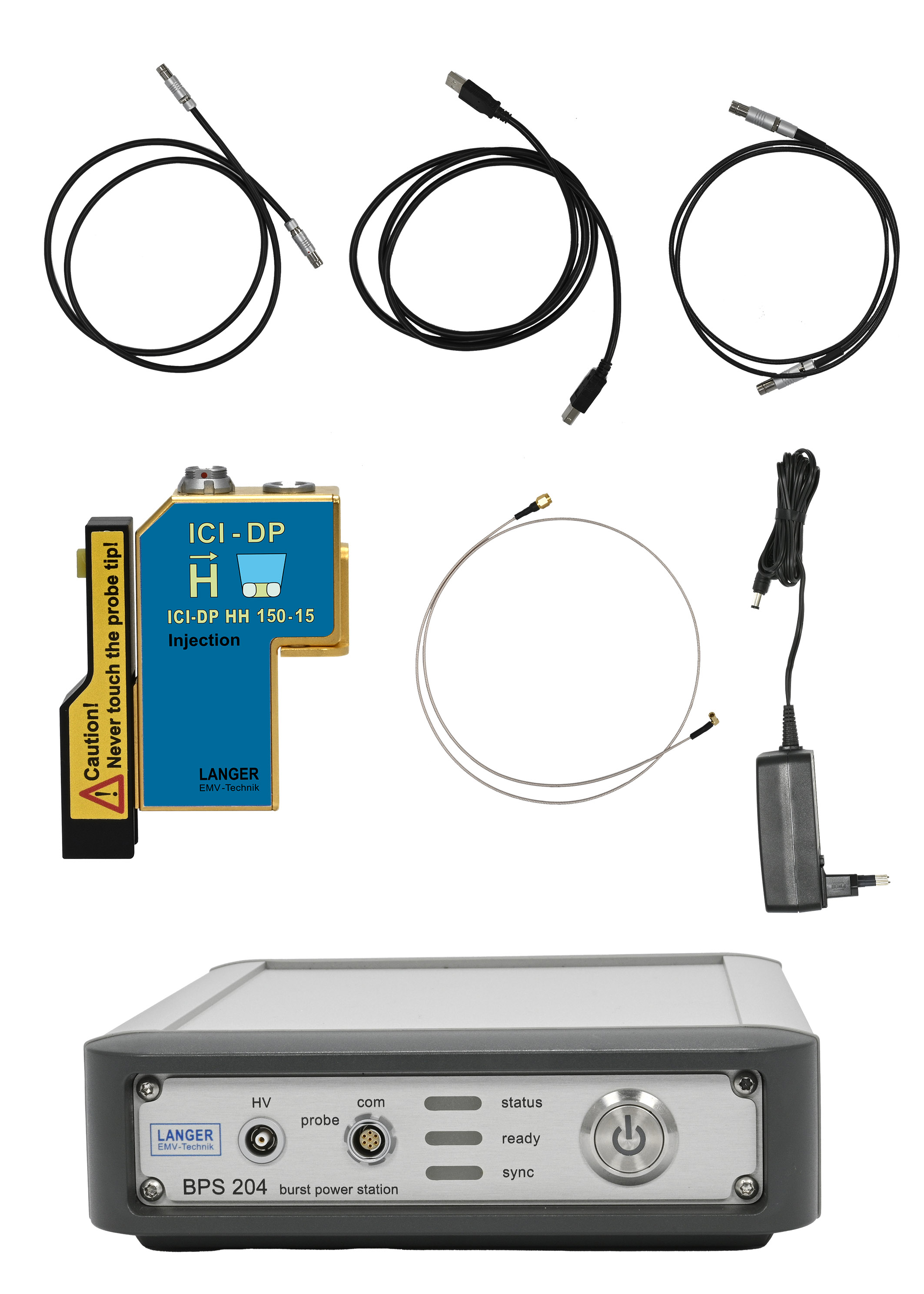

    Scope of delivery
ICI-DP HH150-15 set, Double Pulse Magnetic Field Source set Contents of the case ICI-DP HH150-15 set Schematic set-up with mover Fault injection measuring station with Langer IC scanner Scope of delivery
  • ICI-DP HH150-15 set, Double Pulse Magnetic Field Source set
  • Contents of the case ICI-DP HH150-15 set
  • Schematic set-up with mover
  • Fault injection measuring station with Langer IC scanner
  • Scope of delivery
Short description

The set ICI-DP HH150-15 set is designed to inject electromagnetic pulses with high temporal and spatial resolution into safety critical circuits (electromagnetic fault injection - EMFI). This set can be used to generate single pulses as well as a double pulse sequence with a pulse following time of minimum 25 ns. The set includes the high voltage source BPS 204 as well as the probe ICI-DP HH150-15.

Via the sync inputs of the probe or the BPS, the pulses can be synchronized to an external function sequence.

Parameters such as pulse voltage and polarity can be set via software.

Scope of delivery
Technical parameters
Probe head dimensions: Ø 150 µm
Pulse parameter
Rise time 2 ns
Min. double pulse sequence time 25 ns (200 V)
Polarity (set by software) +/-
Voltage 50 - 1000 V
max. Jitter (typ.) ± 1 ns
Min. trigger pulse delay 35 ns
Scope of delivery details
