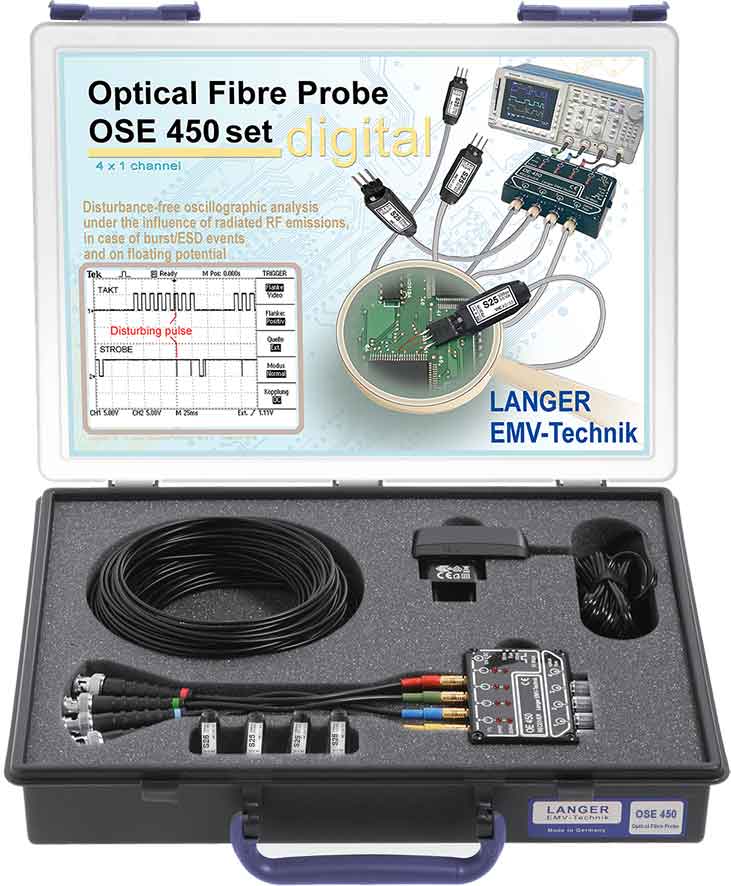

OSE 450 set
Optical Fiber Probe 4-Channel, 50 Mbps
-
-
Application with S25 optical sensor -
Application with OSE 450 set and SGZ 21 -

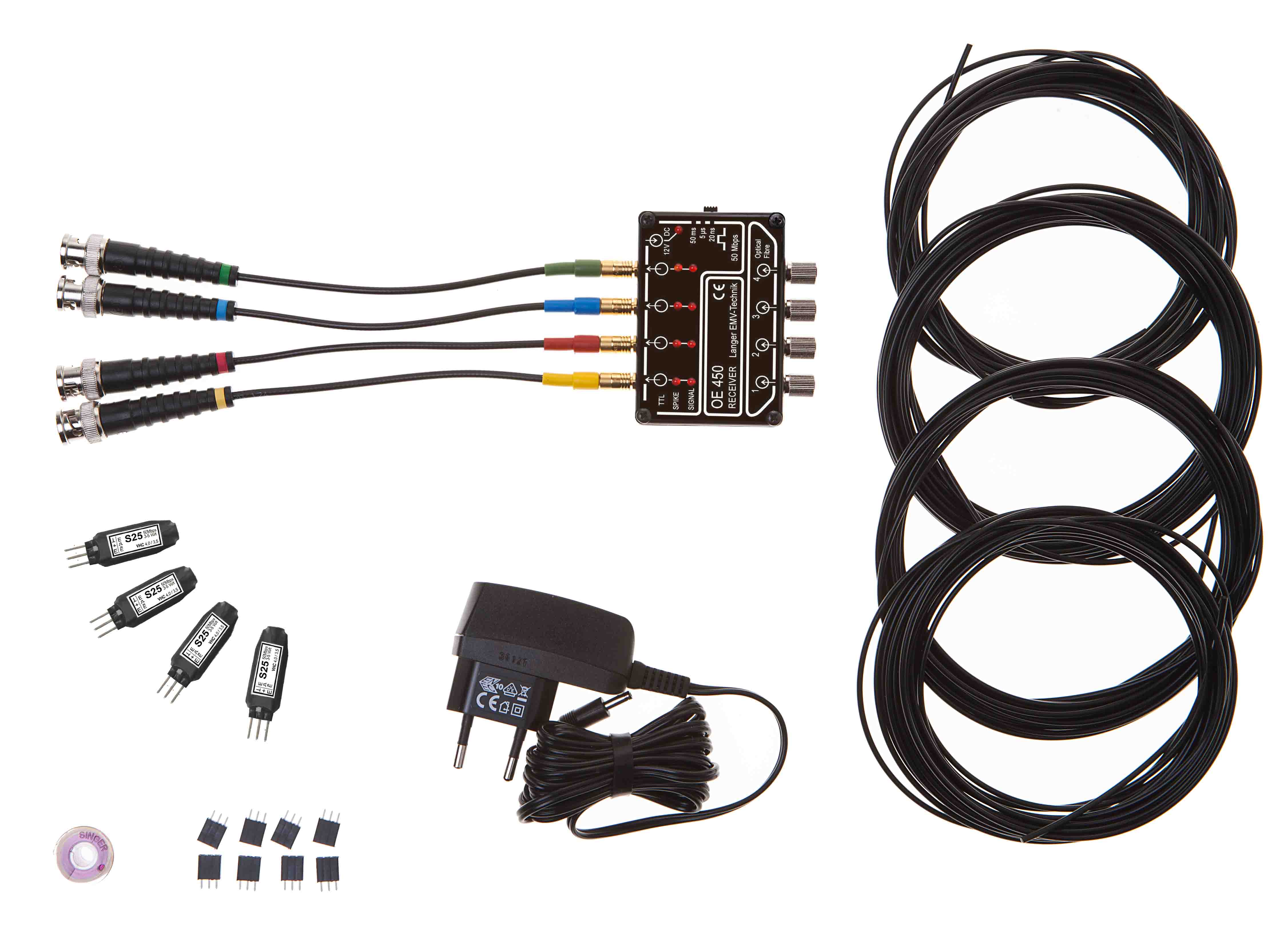

Scope of delivery OSE 450 set
Short description
The OSE 450 set is used to transmit digital signals from a disturbed device under test. It consists of four single sensors which are used to detect four digital signals inside the device under test and is connected to the oscilloscope via four fiber optical cables and one receiver.
Within the device under test, the sensor transforms measured logical signals into optical signals.
The optical signals are transmitted to the optical receiver via a fibre optical cable. These can be visualized with an oscilloscope or can be used for controlling other devices.
The system is suitable for signal monitoring from a anechoic chamber, a shielded RF chamber, or in an EMC test lab. Hard- and software can be EMC-optimized.
Scope of delivery
- 1x OE 450, Optical Receiver
- 4x S25, Optical Sensor (50 Mbps)
- 4x LWL Ø 2.2 mm 6 m, Optical Fiber, Single 6 m
- 1x NT FRI EU, Power Supply Unit
- 1x OSE 450 case, System Case
- 1x OSE 450 qg, Quick Guide
- 1x OSE 450 acc, Accessories
- 1x Digital m, OSE User Manual
Technical parameters
| OE 450 Optical Receiver | |
| Transmission range | DC ... 50 Mbps |
| Optical Input: Optical fibre | 4 x 2.2 mm Ø |
| Optical fibre connector | Ø 2.2 mm |
| Supply voltage | 12 V / 100 mA |
| Connector - input | 4 x BNC-Stecker, 5 V HCMOS |
| S25 Optical Sensor | |
| Transmission range | DC ... 50 Mbps |
| Optical fibre connector | Ø 2.2 mm |
| Supply voltage | 3 V ... 5 V |
| Current input | 30 mA |
Scope of delivery details
-
OE 450
Optical Receiver
The OE 450 optical receiver receives optical signals from maximal 4 sensors and transmits them as electrical signals via BNC connector to an oscilloscope or scaler. The receiver is suitable for the sensor types S25 (50 Mbps) or 21 (10 Mbps) and for burst detector types BD 01B, BD 01E and BD 06B. It…
-
S25
Optical Sensor (50 Mbps)
The sensor S25 is a digital probe for reactionless transmitting of digital signals from the device under test during burst testing. It is positioned directly onto the PC board and is powered by the device under test. The digital signal in the sensor is transformed into an optical signal and transmit…
-
LWL Ø 2.2 mm 6 m
Optical Fiber, Single 6 m
The LWL Ø 2.2 mm 6 m is a single channel flexible fiber cable for optical signal transmission.
