The system is suitable for signal monitoring from an anechoic chamber or an EMC test space. Hard- and software can be EMC-optimized via the optical transmission system because disturbed signals can be easily detected.
Analog
The optical fiber cable probes are used to transmit analog signals from the device under test under the influence of EFT/burst disturbance.
-

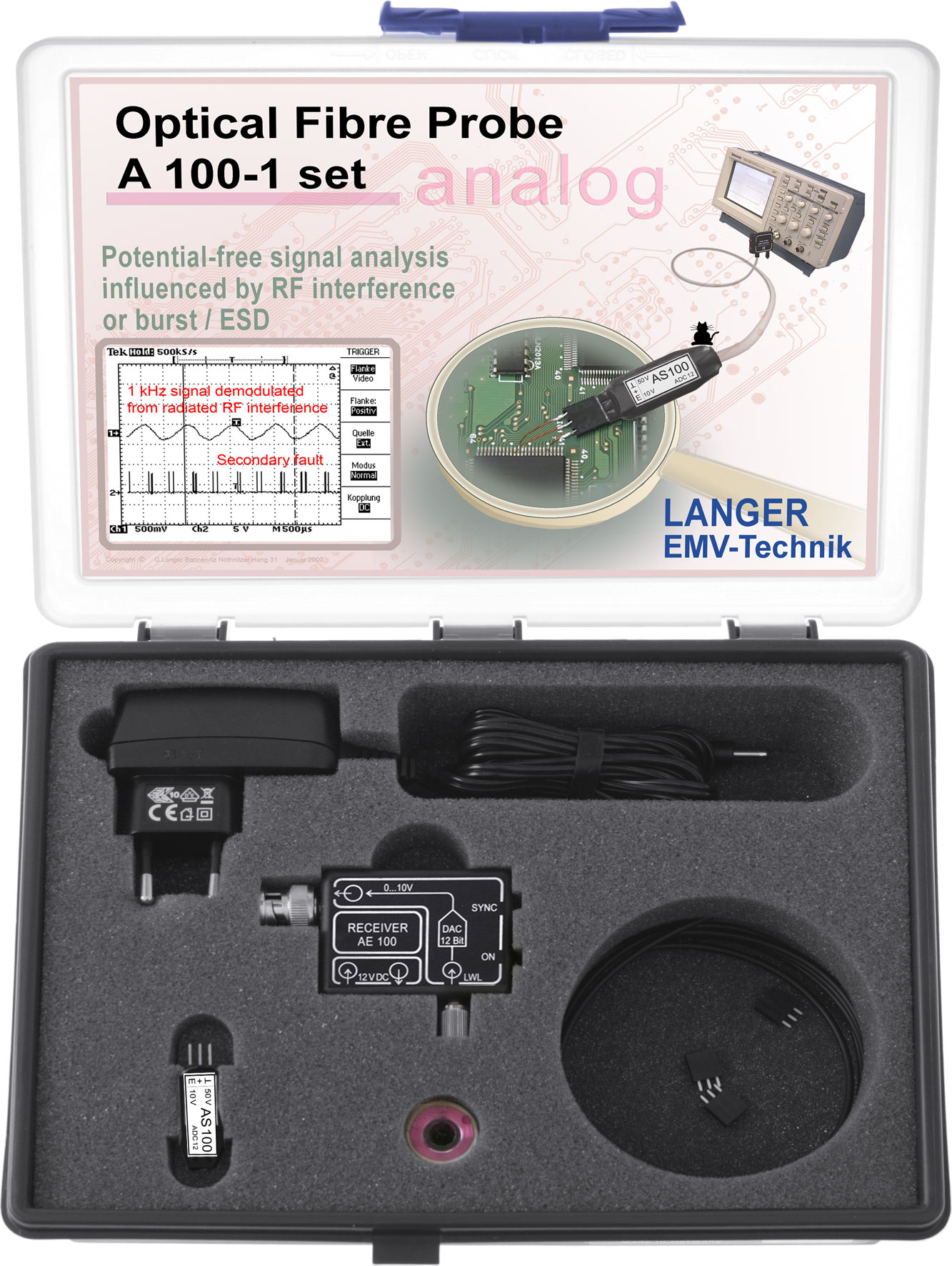

A100-1 set
Optical Fiber Probe 1-channel, 25 kHz
The A100-1 set is used for oscillating analog signals under EFT/ESD/RF interference. The set is particularly suitable for the measurement of analog signals when testing the immunity of electrical or electronical devices (equipment) against high-frequency electromagnetic fields (IEC 61000-4-3 to IEC …
-
A100-2 set
Optical Fiber Probe 2-Channel, 25 kHz
The A100-2 set is used for oscillographing analog signals under EFT/ESD/RF interference. The set is particularly suitable for the measurement of analog signals when testing the immunity of electrical or electronical devices (equipment) against high frequency electromagnetic fields (IEC 61000-4-3 to …
-
A200-1 set
Optical Fiber Probe 1-channel, 500 kHz
The A200-1 set consits of a sensor, which allows for oscilloscopically displaying analog signals under EFT/ESD/RF interference potential free. Disturbed signals can be easily detected. In the device under test the sensor transforms the measured analog signals into optical signals. The optical signal…
-

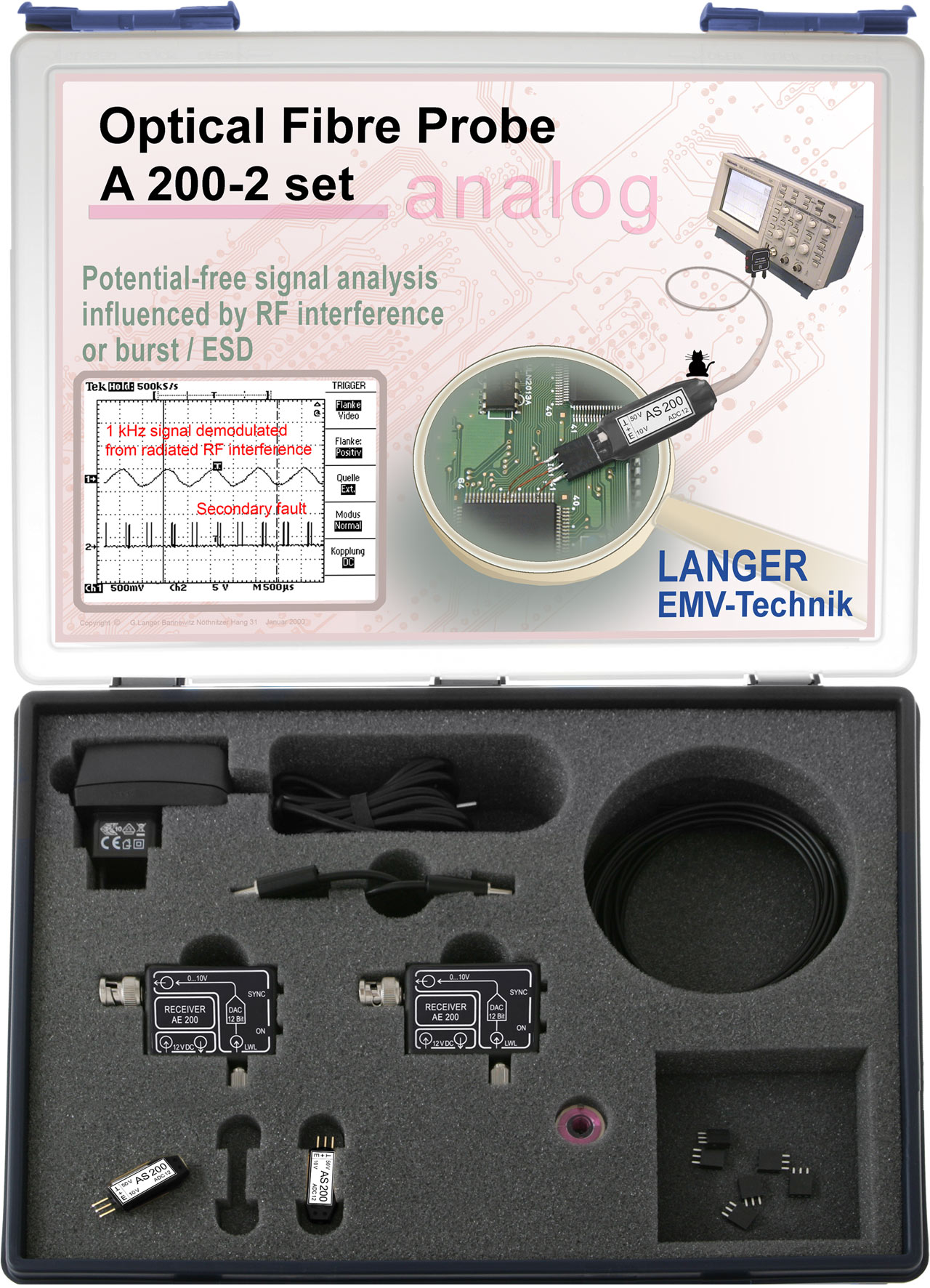

A200-2 set
Optical Fiber Probe 2-Channel, 500 kHz
The A200-2 set consists of two sensors which allow for potential free transmission of analog signals under EFT/ESD/RF interference. The signals are displayed on an oscilloscope. Disturbed signals can be easily detected. In the device under test the sensor transforms the measured logic signals into o…
-
A300-1 set
Optical Fiber Probe 1-channel, 5 MHz
The A300-1 set consists of a sensor, which allows for oscilloscopically displaying analog signals under EFT/ESD/RF interference potential free. Disturbed signals can be easily detected. In the device under test the sensor transforms the measured analog signals into optical signals. The optical signa…
-

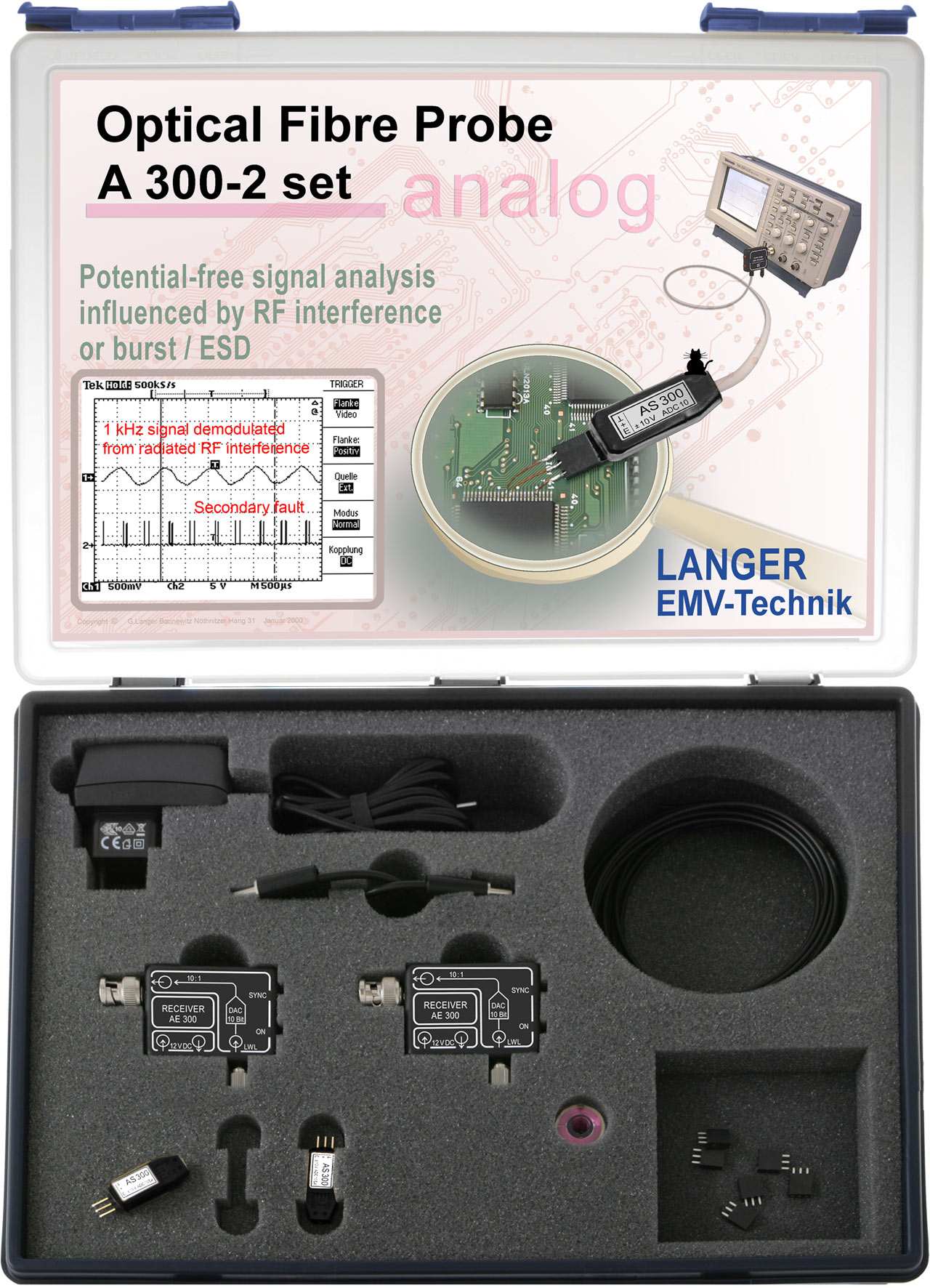

A300-2 set
Optical Fiber Probe 2-Channel, 5 MHz
The A300-2 set consits of two sensors, which allow for displaying oscilloscopically analog signals under EFT/ESD/RF interference potential free. Disturbed signals can be easily detected. In the device under test the sensor transforms the measured logic signals into optical signals. The optical signa…
