RFS-E 10

Scanner Probe 30 MHz up to 3 GHz

Send enquiry Datasheet

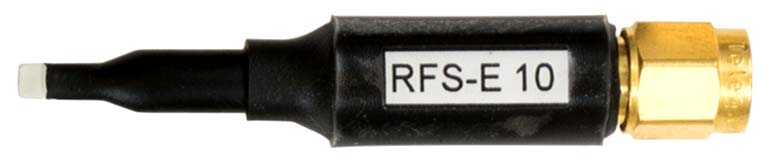

RFS-E 10, Scanner Probe 30 MHz up to 3 GHz
  • RFS-E 10, Scanner Probe 30 MHz up to 3 GHz
Short description

The electrode underneath the RF-E 10 scanner probe head has a width of approx. 0.2 mm, which can locate even the smallest E-field sources, e.g. conducting paths with a width of 0.1 mm or, single IC pins at high pin ICs.

The RFS-E 10 is a passive near-field scanner probe. For measurements the E-field probe is positioned above the components or areas of the PC board. The near-field probe has a sheath current attenuation and is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. The E-field probe does not have a 50 Ω terminating resistor internally.

Technical parameters
Frequency response [dBµV] / [dBµA/m] E- field correction curve [dBµV/mm] / [dBµV] Measuring principles
Frequency range 30 MHz ... 3 GHz
Resolution ≈ 0.2 mm
Probe head dimensions: ≈ (0.5 x 2) mm
Connector - output SMA, male, jack
Frequency response [dBµV] / [dBµA/m] Frequency response [dBµV] / [dBµA/m]
E- field correction curve [dBµV/mm] / [dBµV] E- field correction curve [dBµV/mm] / [dBµV]

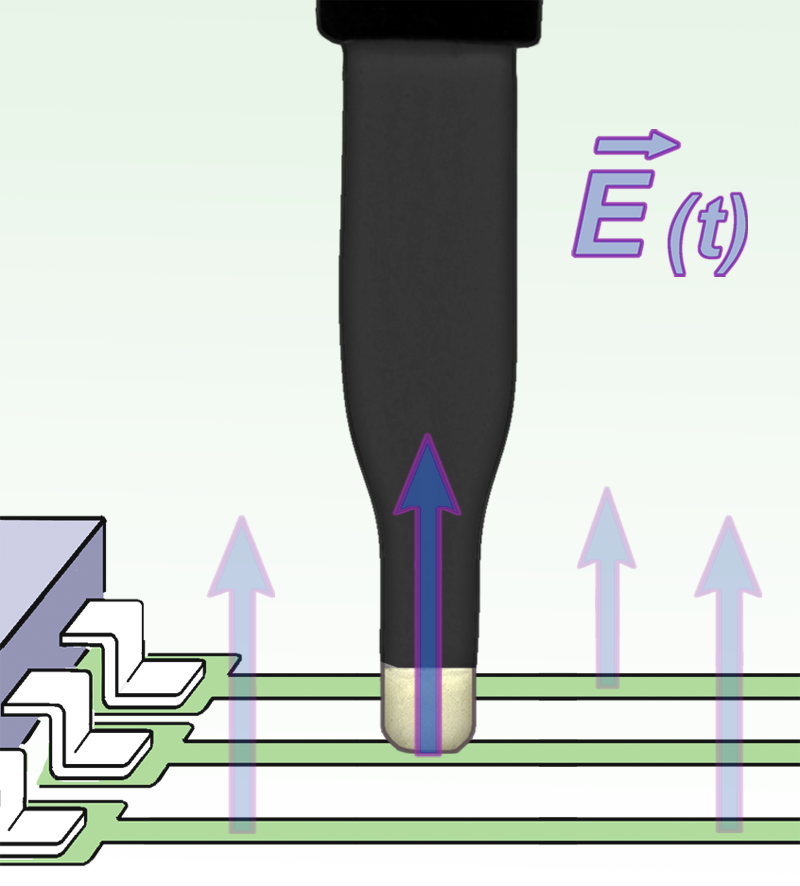

Measuring principles Measuring principles
