P503
DPI Coupling Network up to 1 GHz, 50 V

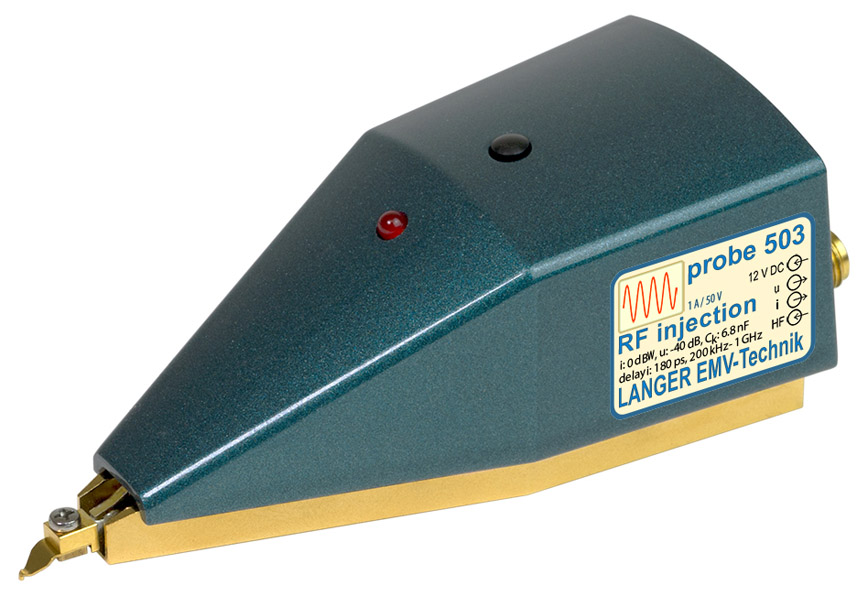

![P503, DPI Coupling Network up to 1 GHz, 50 V](/fileadmin/Bilder300/IC disturbance immunity_DPI coupling network_P503_eng_wPZ.jpg?v=1725087604442)
Short description

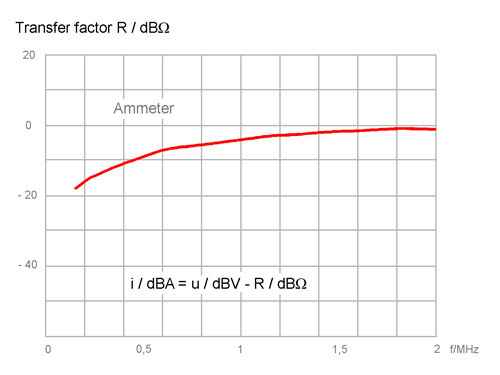

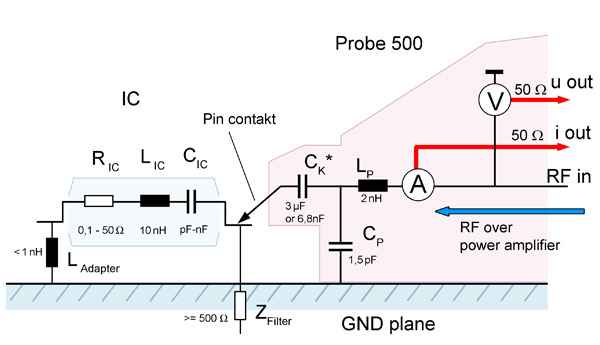

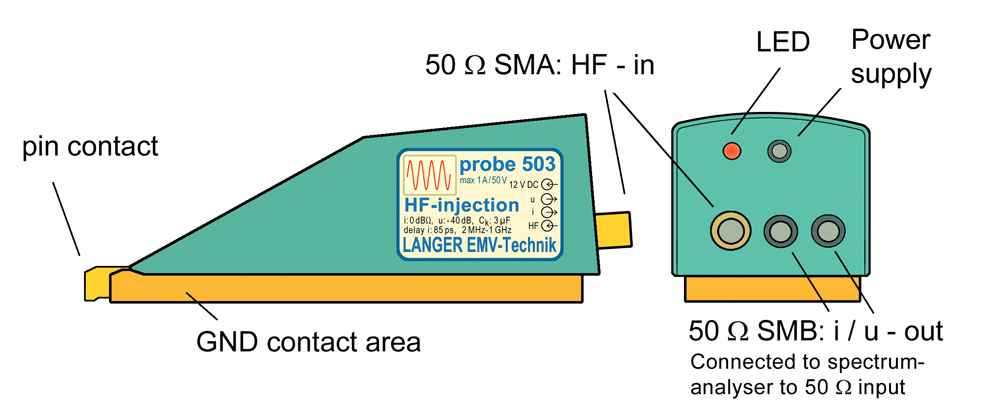

The P503 DPI coupling network is designed for RF direct power injection (DPI) in IC pins according to IEC 62132-4. Current and voltage can be measured seperately during the power injection via integrated measuring outputs. The P503 coupling network is connected to a power amplifier.
