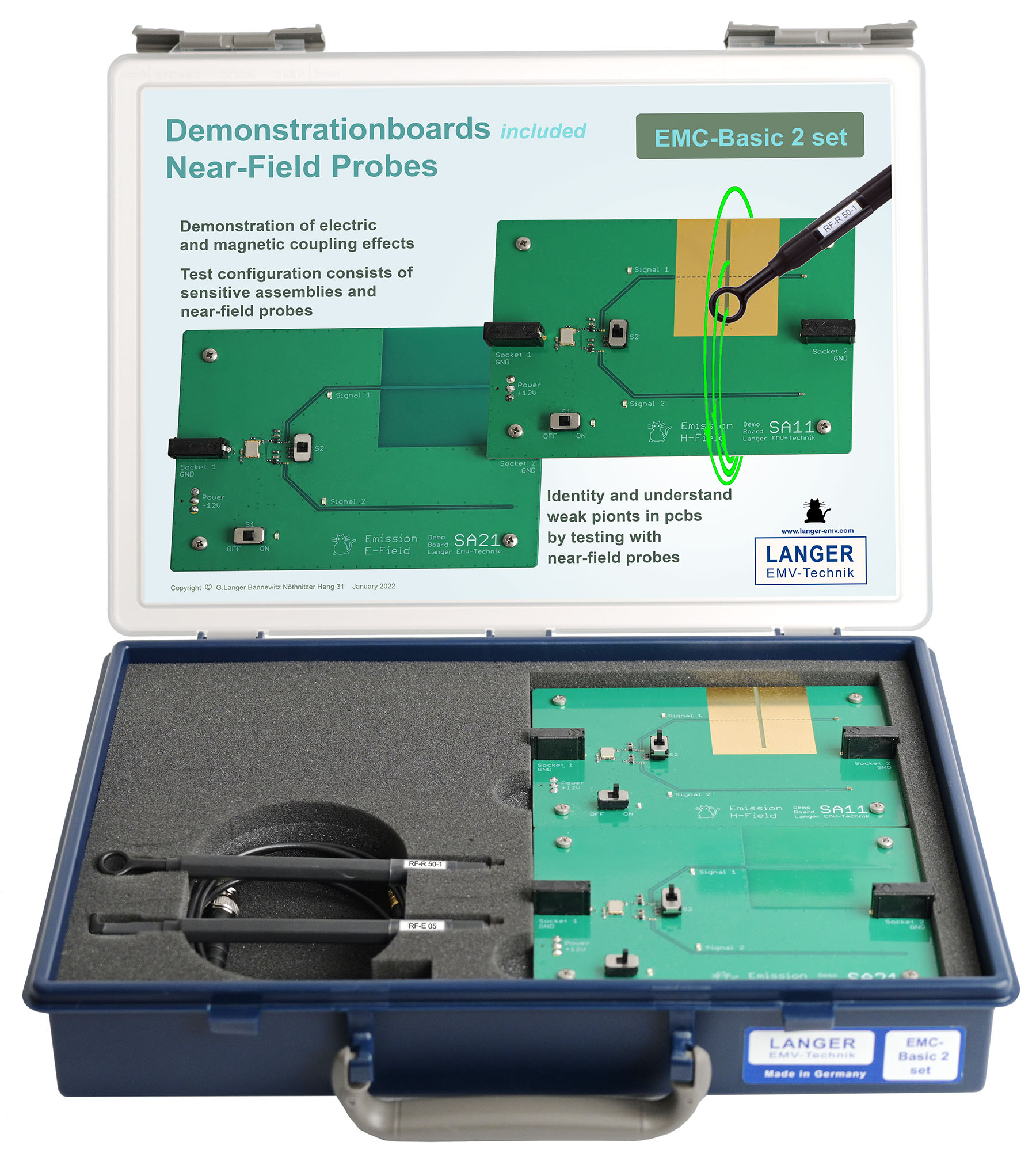

EMC-Basic 2 set

Demonstration Boards Near-Field Probes

The SA 11 and SA 21 demonstration boards are assemblies for displaying emission phenomena. These boards allow demonstrations of various EMC measurement devices such as spectrum analyzers and near-field probes from all manufacturers. Similarly, emission measurements with antennas are possible. With …

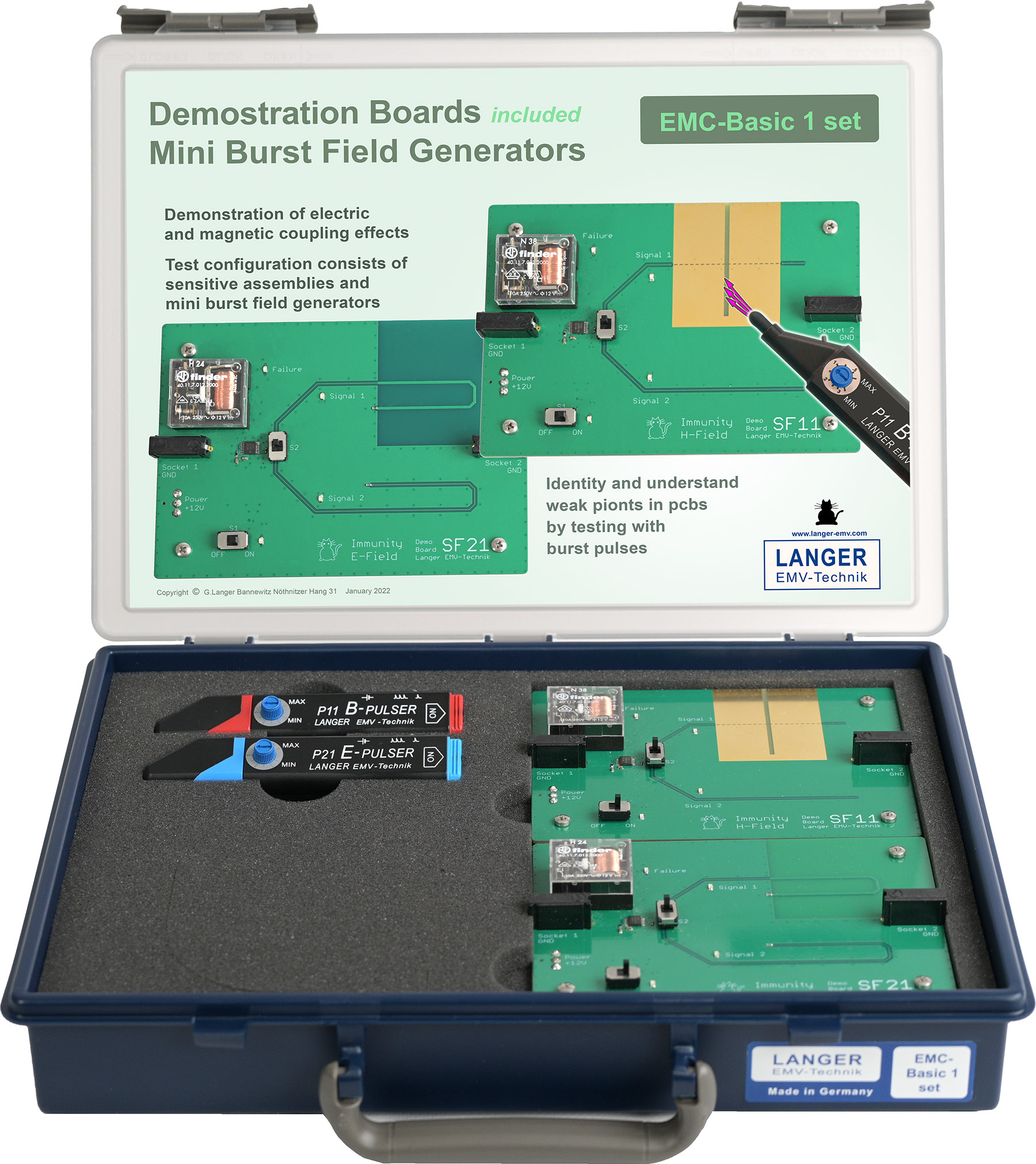

EMC-Basic 1 set

Demonstration Boards Mini Burst Field Generators

The SF 11 and SF 21 demonstration boards are assemblies for demonstrating immunity phenomena. The boards are developed for demonstrations with ESD and burst generators of all manufacturers. With these demonstration boards, magnetic (SF 11) and electric (SF 21) coupling mechanisms of immunity can be…

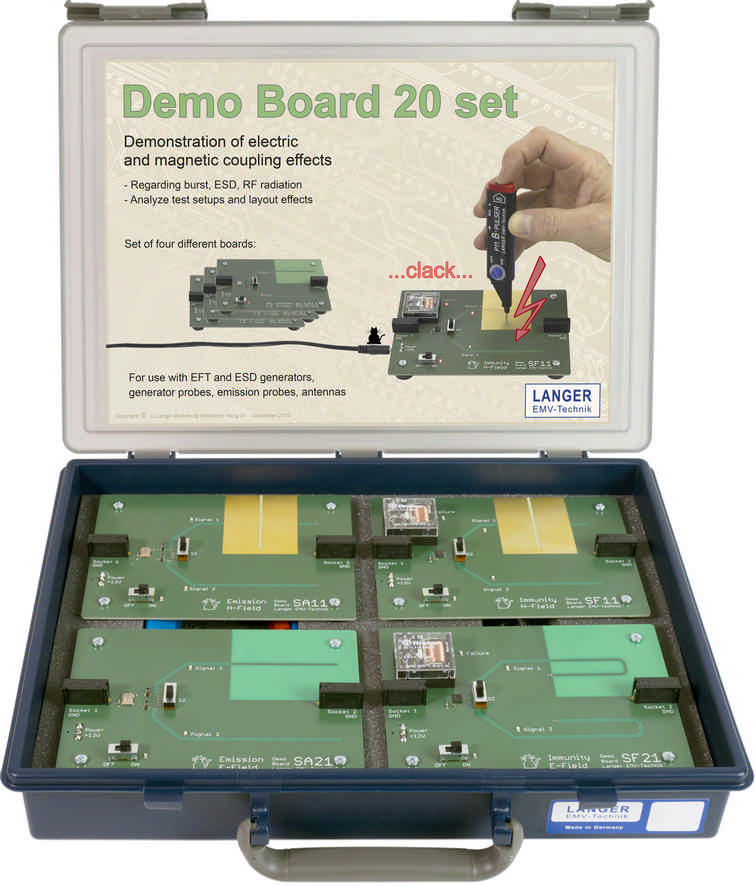

DB 20 set

Demo Board 20

The Demo Boards of the DB 20 set are for the demonstration of immunity and interference emission phenomena. The Demo Boards are designed for demonstrations of various EMC measurement devices such as spectrum analyzers and near-field probes, but also ESD and burst generators of all manufacturers. Int…

D10 set

EMC Demonstration Board

The D10 set is designed for demonstrations of products developed by Langer EMV-Technik GmbH. It is used for further training of distributors. The demonstration board is a PC board with different components. These generate high frequent fields which can be used to demonstrate the function of near fie…
