P1602
RF Magnetic Field Probe

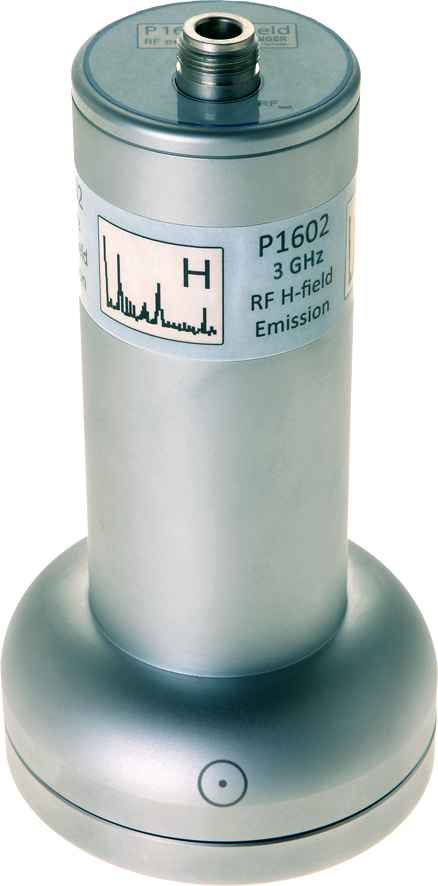

![P1602, RF Magnetic Field Probe](/fileadmin/Bilder300/IC-Messtechnik_SA_P1602_HF-Magnetfeldsonde_wPZ.jpg?v=1721113204126)

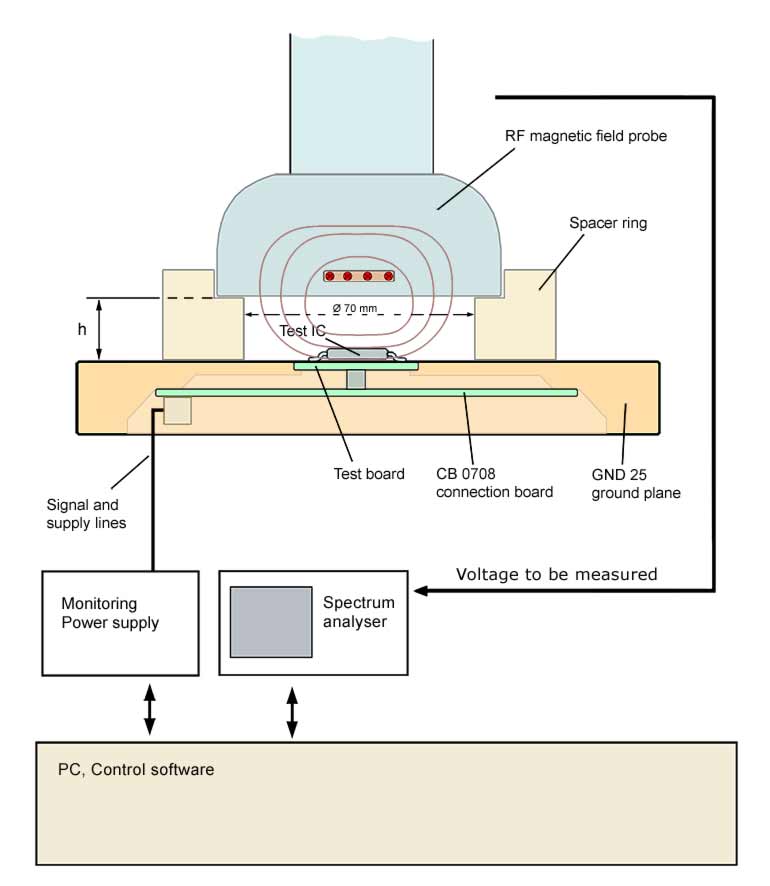

![Scheme measurement set-up P1602 magnetic field](/fileadmin/Bilder300/2012.12.05 P1602 RF measurement set-up magnetic field wen.jpg?v=1721113206638)
Short description

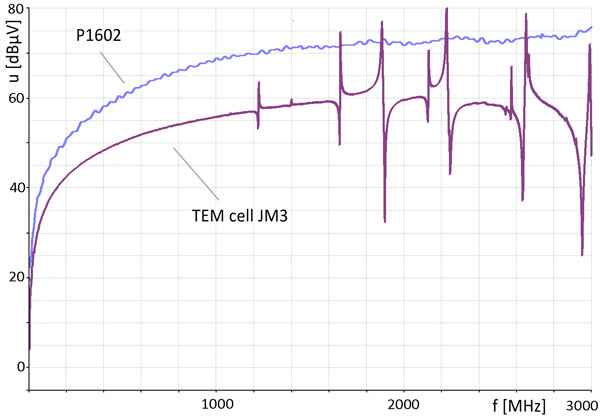

The P1602 RF magnetic field probe is used to measure magnetic near fields up to 3 GHz, which are coupled out from an IC. These fields induce a voltage inside the field probe’s conductor. The induced voltage is measured by a connected spectrum analyzer.

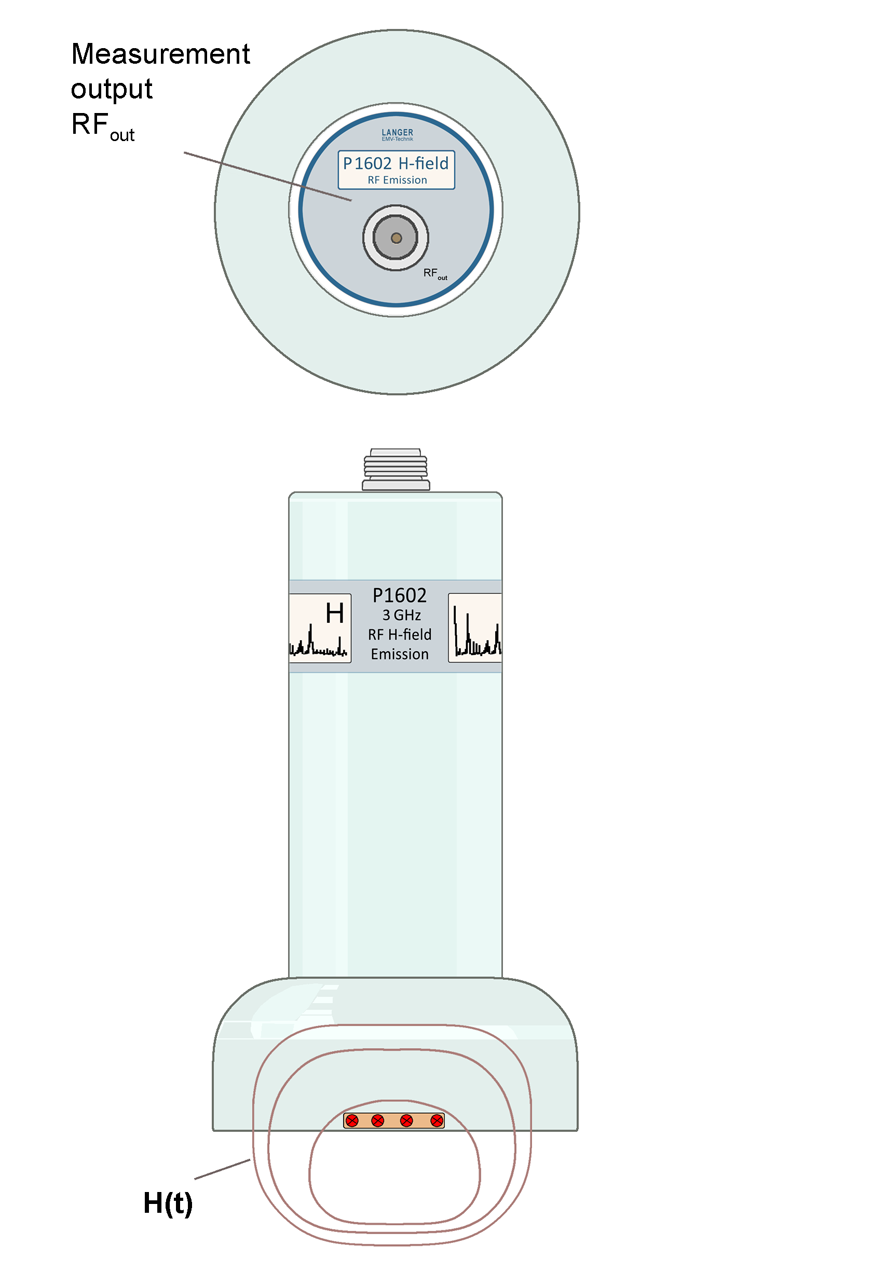

The RF magnetic field probe has a 50 ohm RF measuring output. In order to locate the magnetic field current in different orientations the RF magnetic field probe is 360° rotatable above the IC. With the help of a distance ring (3 or 10 mm) the RF magnetic field probe is positioned in a defined distance above the IC.
