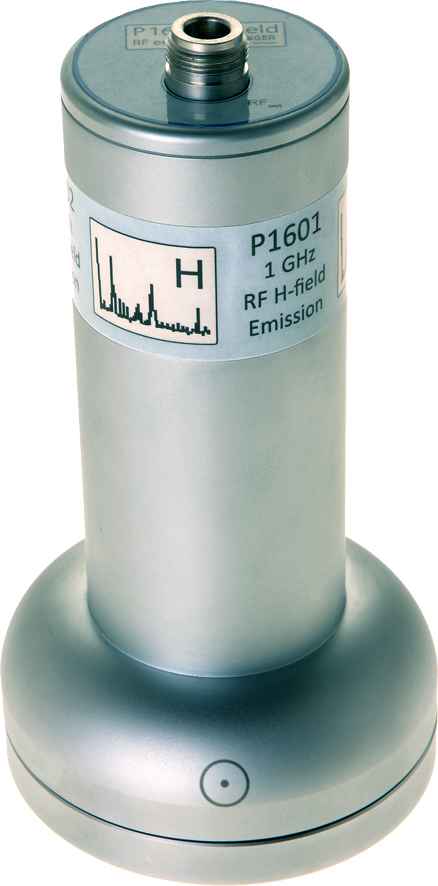

P1601
RF Magnetic Field Probe
Short description
The P1601 RF magnetic field probe is used to measure magnetic near fields up to 1 GHz, which are coupled out from an IC. These fields induce a voltage inside a field probe conducter. The induced voltage is measured by a connected spectrum analyzer.

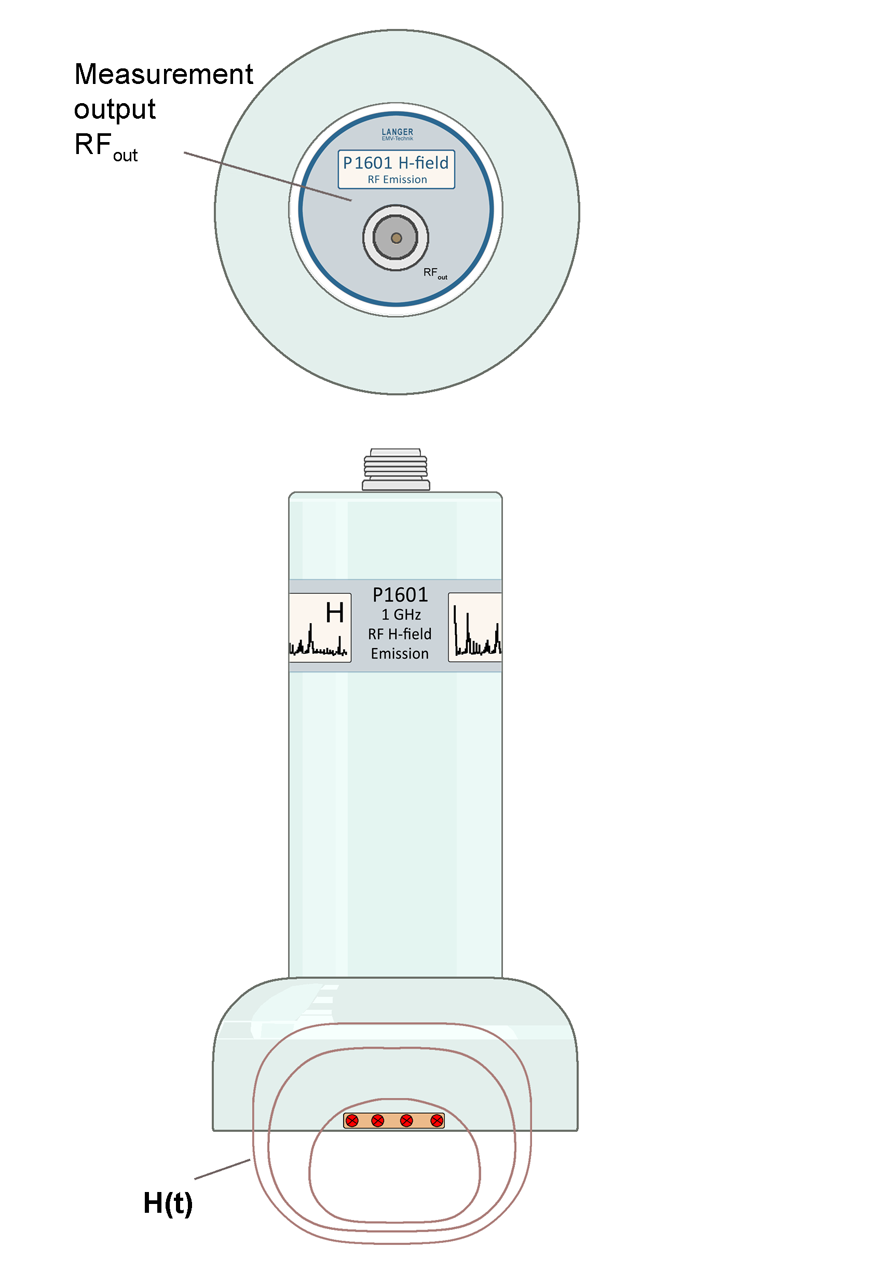

The RF magnetic field probe has a 50 Ω RF measuring output. In order to locate the magnetic field current at different orientations the RF magnetic field probe is 360° rotatable above the IC. With the help of a distance ring (3 or 10) mm the RF magnetic field probe is positioned in a defined distance above the IC.
