OA 4005
Oscilloscope Adapter
Short description

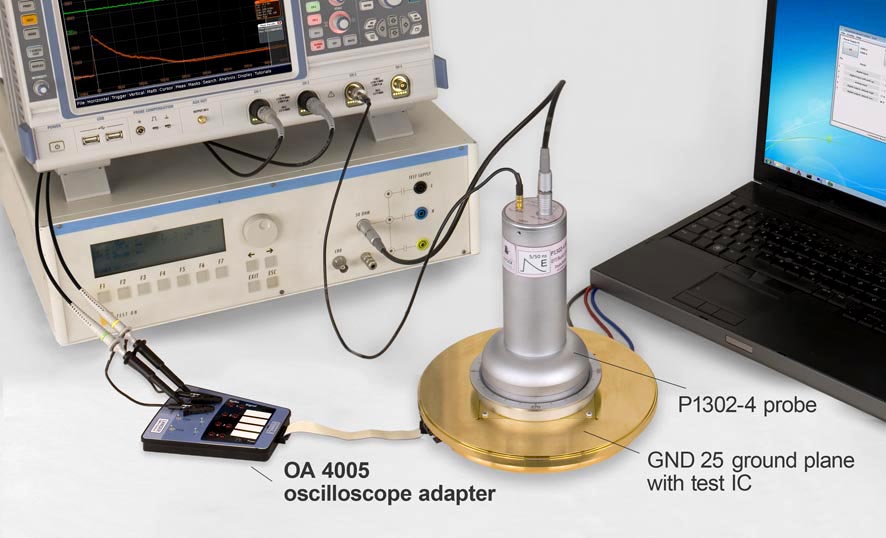

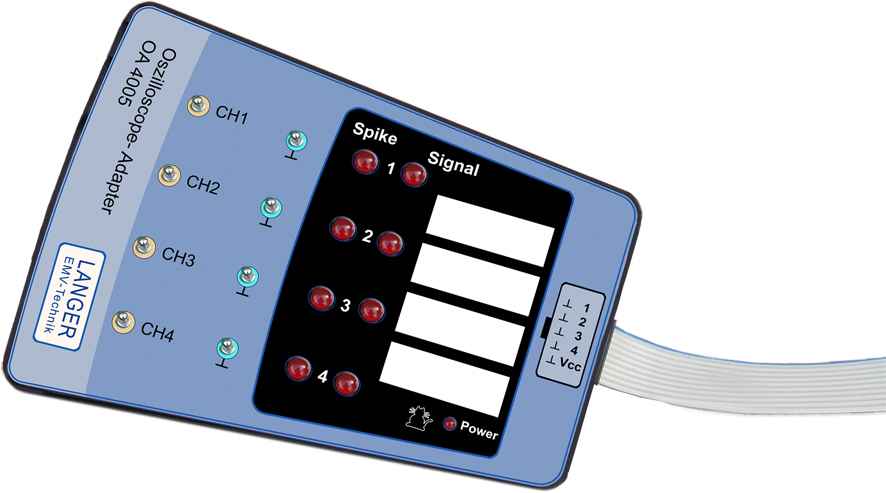

The OA 4005 is used to monitor the test IC and to visualize its signals. It is connected with the CB 0708 connection board via a flat ribbon cable. The LED signals 1-4 and spikes 1-4 show the signals of the test IC. Furthermore, there are four connections for oscilloscope probes (CH1-CH4).
The flat ribbon cable from the connection board ensures the power supply to the OA 4005.
Technical parameters
Cut-off frequency | 45 MHz sine wave |
Cut-off frequency | 1 MHz rectangle wave |
Max. input voltage RF | 50 V |
