RFS-R 50

Scanner Probe 30 MHz up to 3 GHz

Send enquiry Datasheet

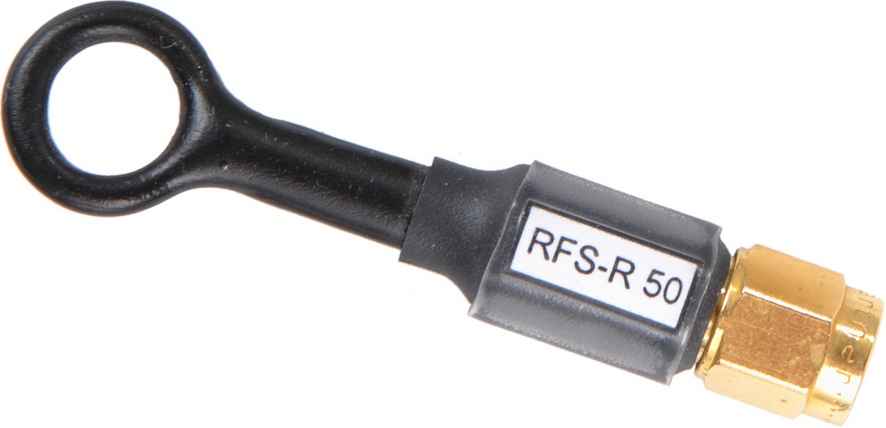

RFS-R 50, Scanner Probe 30 MHz up to 3 GHz
  • RFS-R 50, Scanner Probe 30 MHz up to 3 GHz
Short description

The RFS-R 50 H-field probe is designed for taking field measurements on assemblies, devices or cables at a distance of up to approx. 3 cm. The H-field probe can be used to identify larger components as sources of interference.

The RFS-R 50 is a passive near-field probe. It has a sheath current attenuation and is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. It does not have an internal terminating resistance.

Technical parameters
Frequency response H-field correction curve [dBµA/m] / [dBµV] Current correction curve [dBµA] / [dBµV] Measuring principles
Frequency range 30 MHz ... 3 GHz
Probe head dimensions: Ø 10 mm
Connector - output SMA, male, plug
Length ≈ 55 mm
Frequency response Frequency response
H-field correction curve [dBµA/m] / [dBµV] H-field correction curve [dBµA/m] / [dBµV]
Current correction curve [dBµA] / [dBµV] Current correction curve [dBµA] / [dBµV]

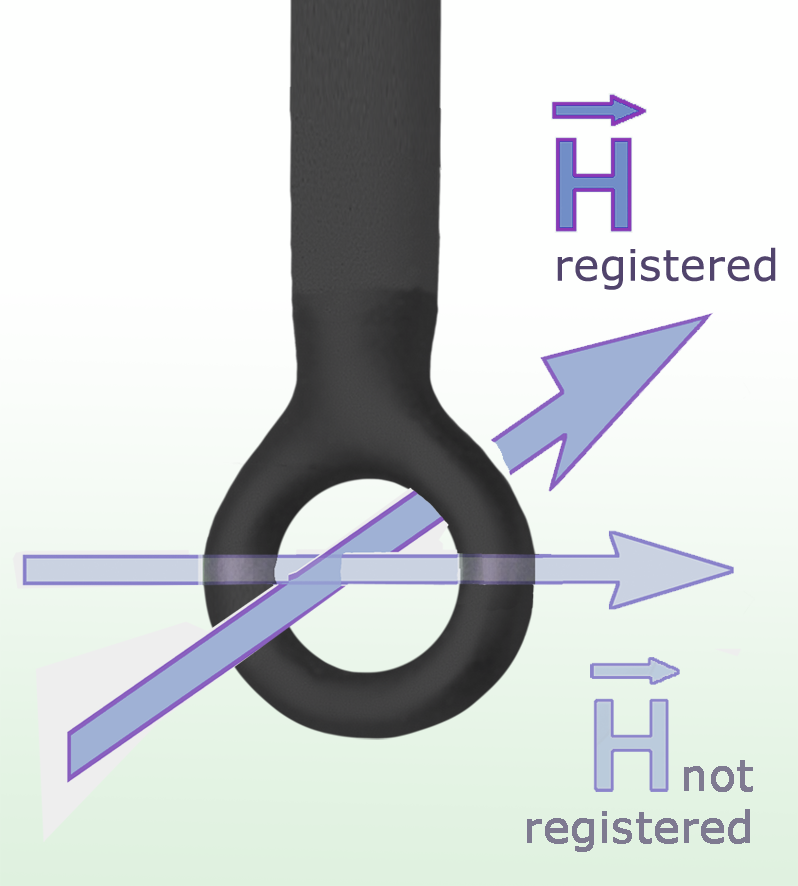

Measuring principles Measuring principles
