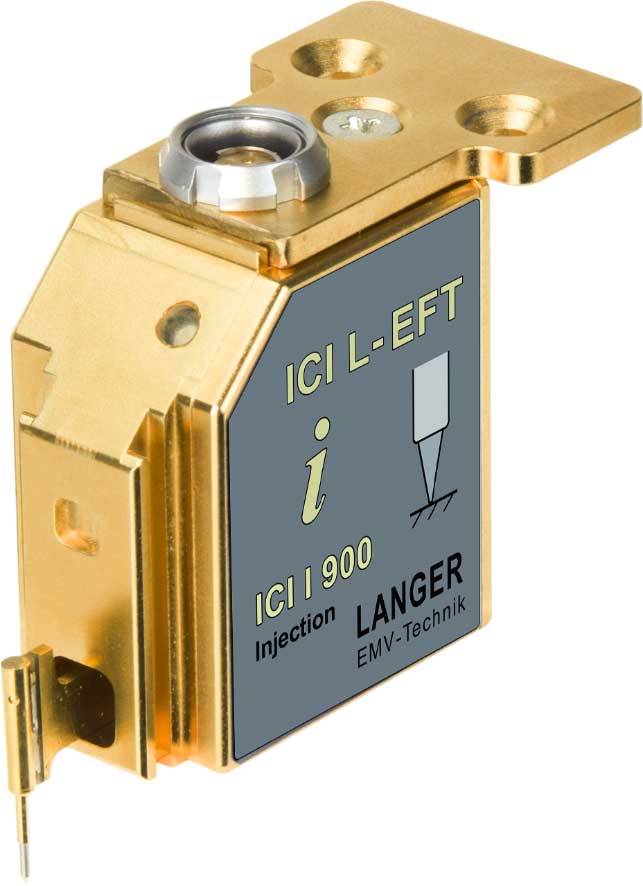

  • ICI I900 L-EFT, Pulse Current Source (FBBI)
  • Application of ICI I900 L-EFT Pulse Current Source

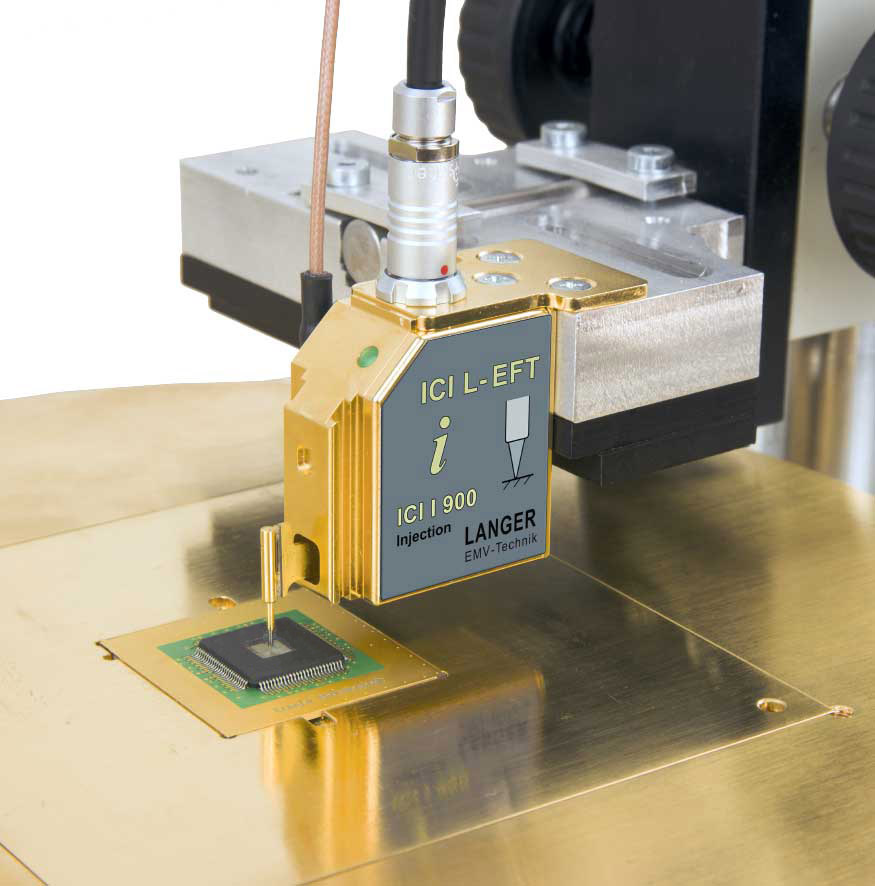

    Application of ICI I900 L-EFT Pulse Current Source
ICI I900 L-EFT, Pulse Current Source (FBBI) Application of ICI I900 L-EFT Pulse Current Source
  • ICI I900 L-EFT, Pulse Current Source (FBBI)
  • Application of ICI I900 L-EFT Pulse Current Source
Short description

The ICI I900 L-EFT pulse current source couples fast transient pulses into a test IC (Forward body biased injection). This source allows for side channel analysis or testing the immunity of individual areas of the IC.

typ. - Refer to parameter sheet

Technical parameters
Pulse shape (maximum intensity) Pulse shape (minimum intensity)
Probe head Spring Pin
Max. current (1 Ω load) 4 A
Pulse parameter
Rise time < 2 ns
Repetition frequency 0.1 Hz - 20 kHz
Polarity (set by software) + / - / alternating
Measuring output 50 Ω
Trigger-pulse delay (Bypass Mode - Delay Line)
min. Trigger-pulse delay (typ.) 70 ns
max. Trigger-pulse delay (typ.) 420 ns
max. Jitter (typ.) ± 1 ns
Supply voltage BPS 202
Weight 70 g
Sizes (L x W x H) (26 x 43 x 53) mm

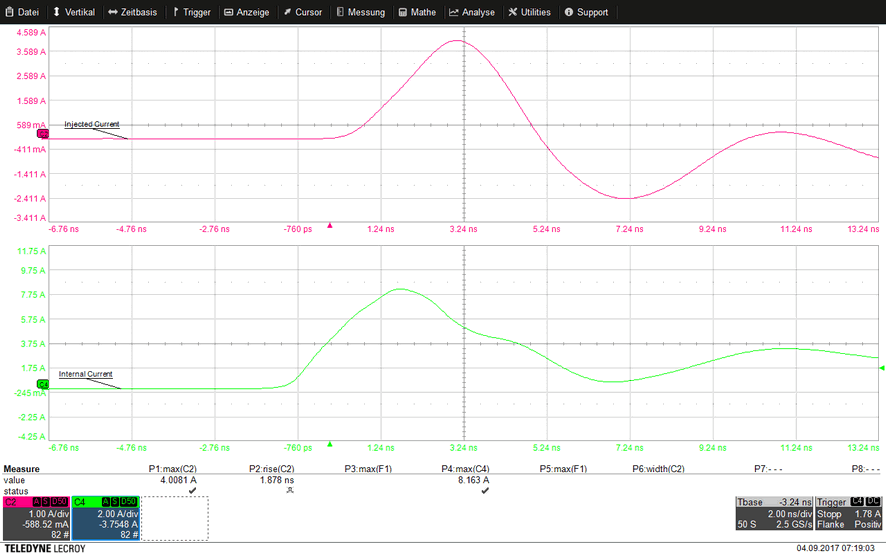

Pulse shape (maximum intensity) Pulse shape (maximum intensity)

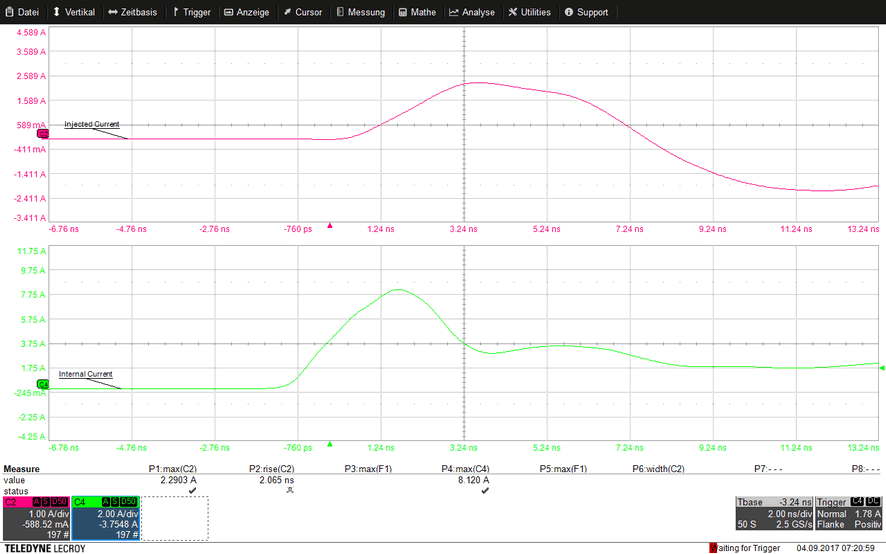

Pulse shape (minimum intensity) Pulse shape (minimum intensity)

typ. - Refer to parameter sheet
