PA 306 SMA
Preamplifier 100 kHz up to 6 GHz
Short description

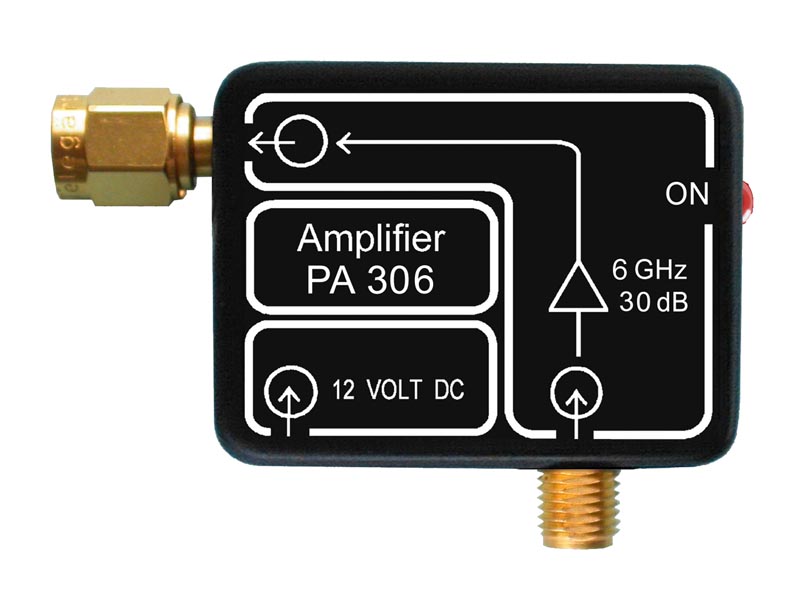

The PA 306 serves for amplifying weak measurement signals, for example from near-field probes or antennas. It is distinguished by its low noise output and high dynamic scope over a wide frequency range.
The PA 306 is to be used with the 50 Ω input of a spectrum analyzer or oscilloscope. The power is supplied to the PA 306 via the plug-in power supply unit. A near-field probe is connected to the input of the preamplifier with the corresponding cable.
Technical parameters
| Frequency range | 100 kHz - 6 GHz |
| Gain | 30 dB |
| -1dB compression point (output) | 10 dBm |
| Noise figure | 3 dB |
| Supply voltage | 12 V DC |
| Current input | 100 mA |
| Max. input power | +13 dBm |
| Weight | 50 g |
| Sizes (L x W x H) | (50 x 38 x 13) mm |
| Frequency response |
|
