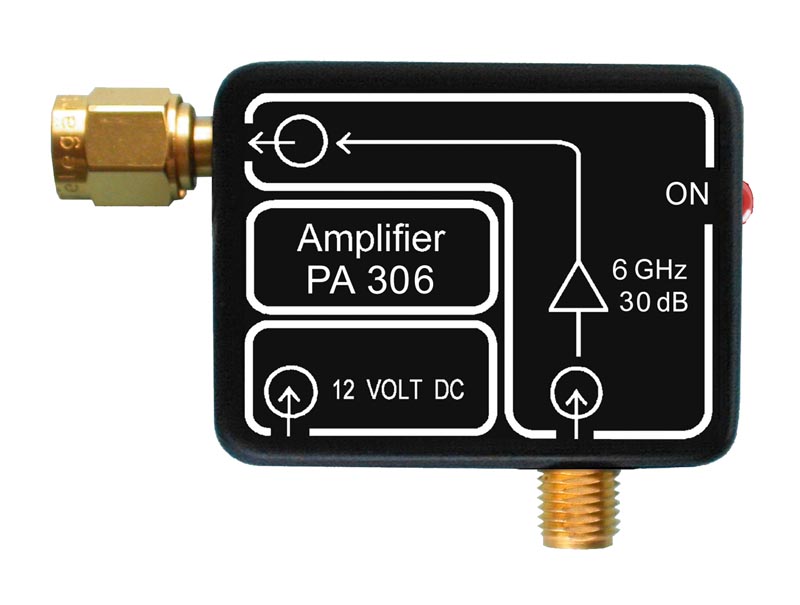

PA 306 SMA
Preamplifier 100 kHz up to 6 GHz
Short description
The PA 306 serves for amplifying weak measurement signals, for example from near-field probes or antennas. It is distinguished by its low noise output and high dynamic scope over a wide frequency range.
The PA 306 is to be used with the 50 Ω input of a spectrum analyzer or oscilloscope. The power is supplied to the PA 306 via the plug-in power supply unit. A near-field probe is connected to the input of the preamplifier with the corresponding cable.
