TH 22
Probe Head Holder
![TH 22, Probe Head Holder](/fileadmin/Bilder300/IC measurement_probe head holder_TH 22_en_wPZ.jpg?v=1721148690730)

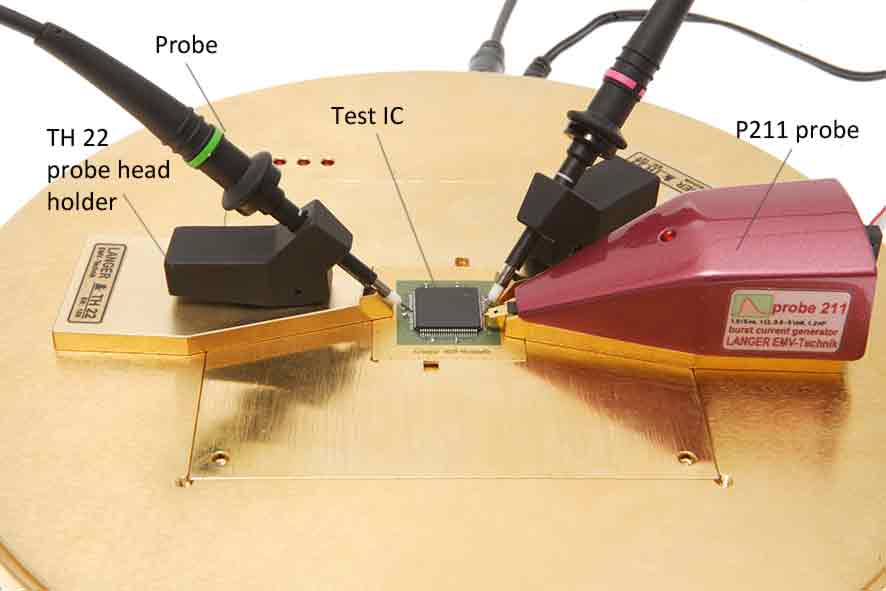

![Application with TH 22](/fileadmin/Bilder300/2014.07.29 TH 22 application wen.jpg?v=1721148690730)
Short description
The TH 22 probe head holder can hold oscilloscope probe heads. It allows for a safe contacting of the oscilloscope probe tip to the test IC. Magnets, that allow for adhesion and fixation on the GND 25 ground plane, are embedded into the bottom of the TH 22.
Technical parameters
Max probe head diameter | Ø 4.1 mm |
Weight | 83 g |
Sizes (L x W x H) | (70 x 35 x 26) mm |
