HFW 21 set
RF Current Transformer 100 kHz up to 1 GHz
-
-
Application HFW 21 -
Scope of delivery Set HFW 21
Short description

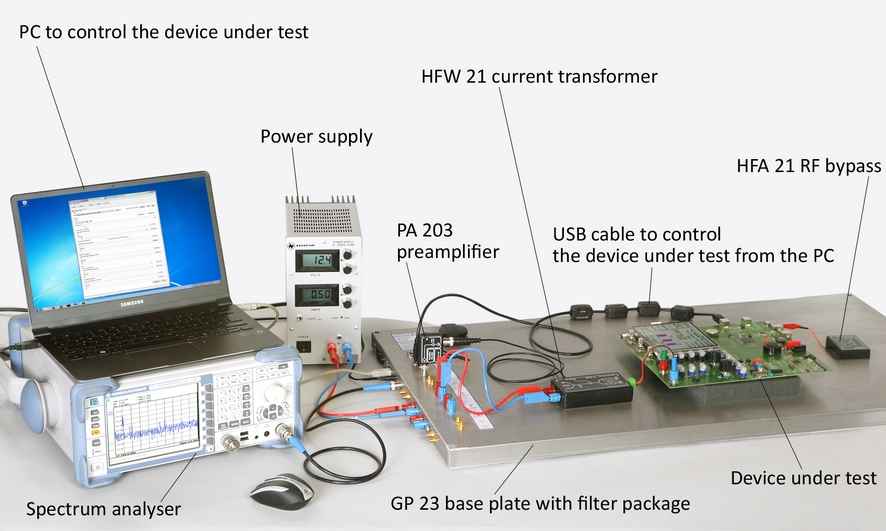

The RF-current transformer measures high-frequency currents at the DUT’s lines. For reproducible measurements a metallic ground plane is needed as a reference plane. The small-scale measurement set-up at the developer’s workspace allows for fast analysis of EMC measuring effects.
The HFW 21 allows for the separate measurement of common-mode currents and differential-mode currents.
Scope of delivery

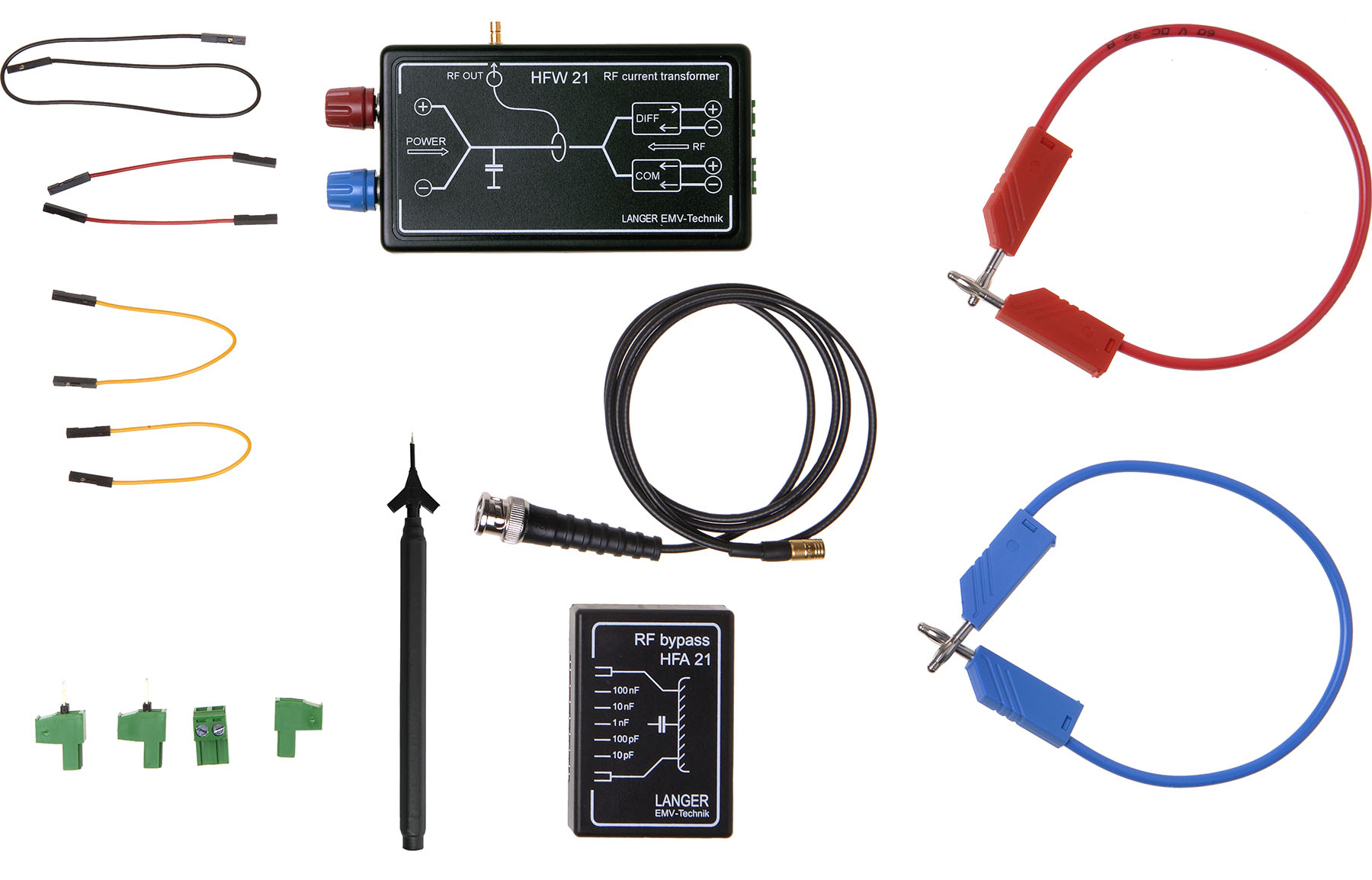

- 1x HFW 21, RF Current Transformer
- 1x HFA 21, RF Bypass
- 1x SMB-BNC 1 m, SMB-BNC Measurement Cable
- 1x HFW 21 acc, Accessories
- 1x ESA1 m, User Manual

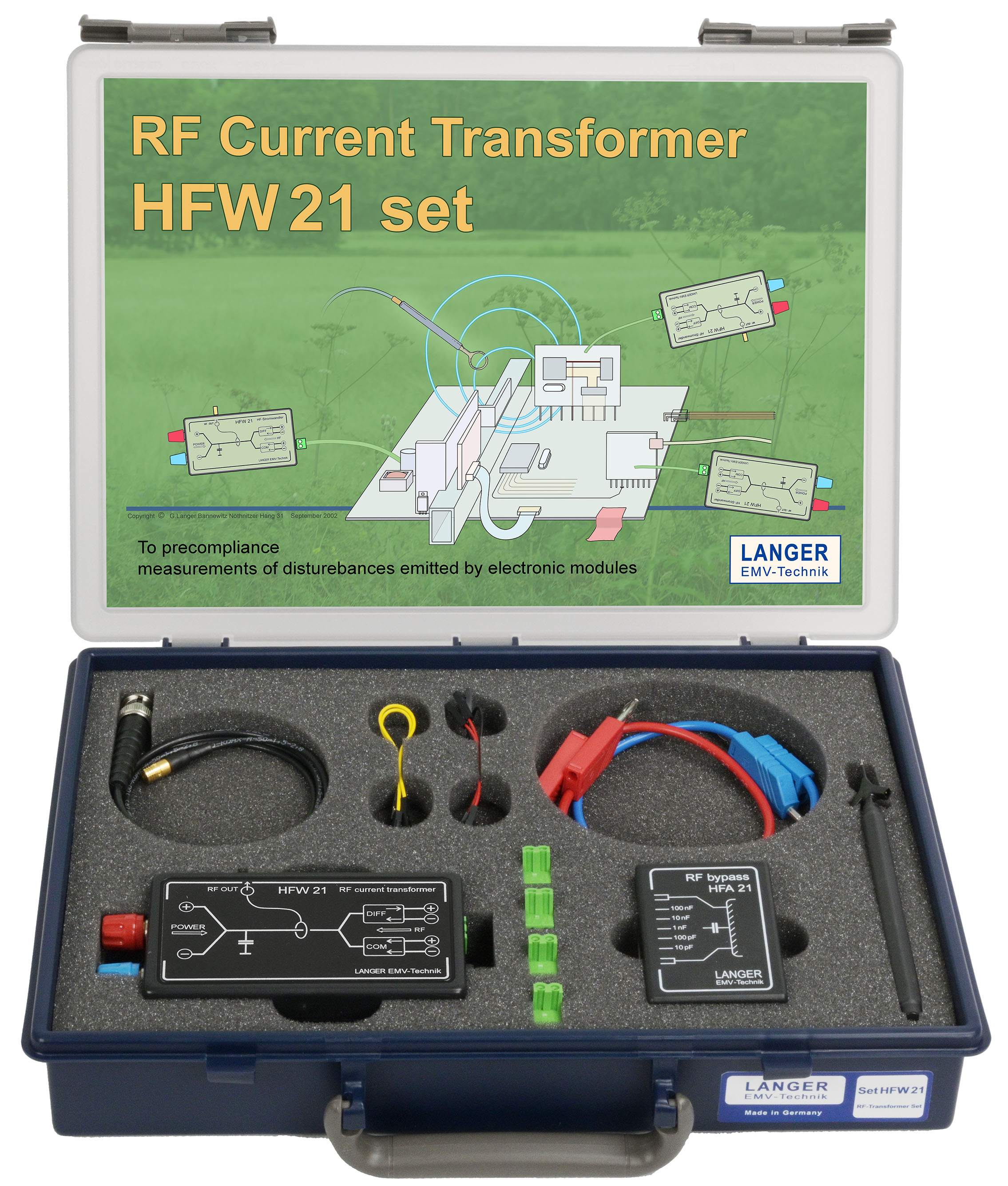

- 1x HFW 21 case, System Case
Technical parameters
| Frequency range | 100 kHz - 1 GHz |
| Weight | 400 g |
Scope of delivery details
-
HFW 21
RF Current Transformer
The RF current transformer measures high-frequency currents within the device under test. It discharges the currents on the ground plane and allows for the separate measurements of common-mode current and differential-mode current. This can be helpful for the improvement of switching-power supplies.…
-
HFA 21
RF Bypass
