Transfer probe

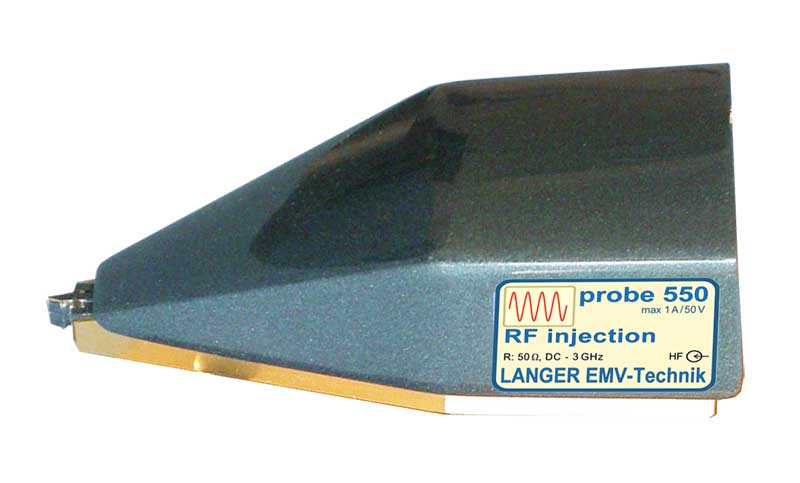

P550
Power Injection Probe

Short description
The wheeling probe P550 is a component of the coupling inductance measurement setup. The probe contains a RF-compliant 50 Ohm series resistance in the frequency range of 0-3 Ghz. The current runs through the probe into the DUT. This ensures a 50 Ohm termination from the RF-generator to the interface of the DUT.
Technical parameters
Frequency range | 0 ... 3 GHz |
Internal resistance | 50 Ω |
Max. forward power | 1 W |
Max. input current RF | 142 mA |
Sizes (L x W x H) | (70 x 35 x 30) mm |
