ES 01-h

E-Field Source

Send enquiry Datasheet
  • ES 01-h, E-Field Source
  • Application with ES 01

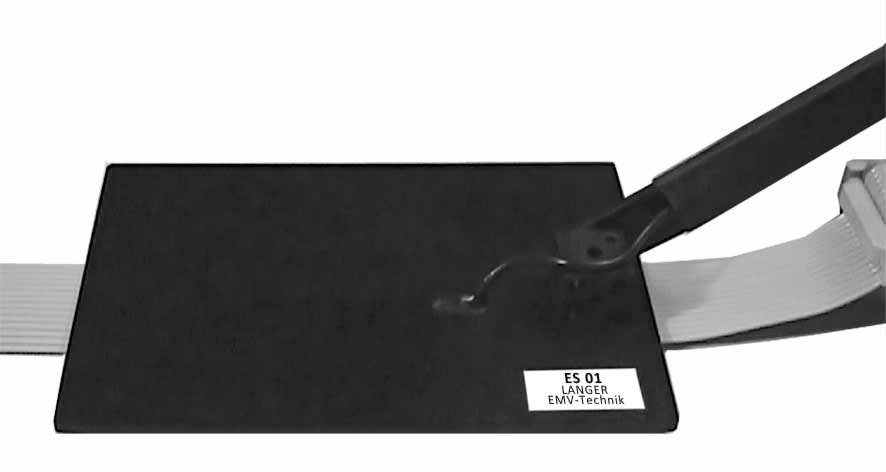

    Application with ES 01
ES 01-h, E-Field Source Application with ES 01
  • ES 01-h, E-Field Source
  • Application with ES 01
Short description

With the ES 01-h E field source extensive electrical couplings are possible. The field source is suitable for pulsing weak spots from a range of 5 to 10 cm. Its radius of function is between that of the ES 02-h and ES 00-h field sources.

The field source is powered by an EFT/ burst generator. The generator is connected to the 4.4 kV, high voltage resistant SMB plug of the field source via a high-voltage cable ( HV SMB 1 m or SMB-BNC 1 m).

Technical parameters

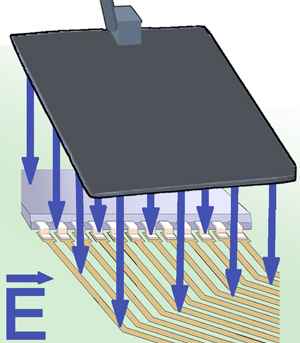

Measuring principles
Measuring principles Measuring principles
