ES 05D-h

E-Field Source

Send enquiry Datasheet
  • ES 05D-h, E-Field Source
  • Application with ES 05D
    Application with ES 05D
ES 05D-h, E-Field Source Application with ES 05D
  • ES 05D-h, E-Field Source
  • Application with ES 05D
Short description

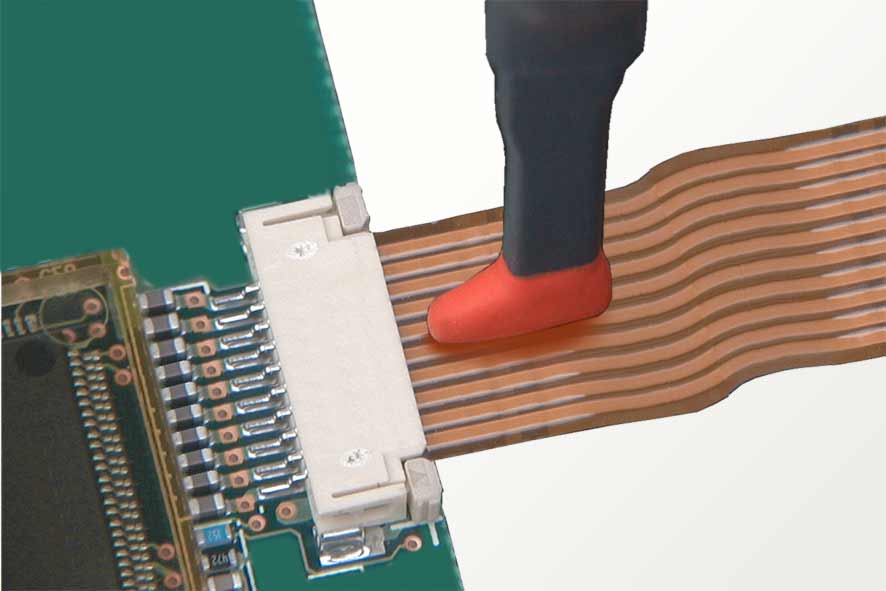

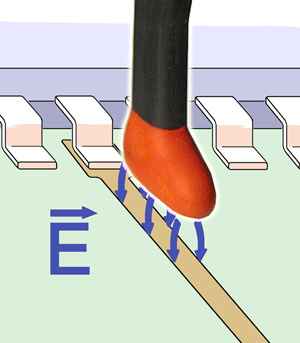

The ES 05D-h E-field source has a small decoupling electrode in its head. It can, therefore, be positioned onto conducting paths, small components and their connections, wires and single components. Single plugs or cable cores of flat cables can be tested.

The field source is powered by an EFT/ burst generator. The generator is connected to the 4.4 kV, high-voltage resistant SMB plug of the field source via a high-voltage cable (HV SMB 1 m or SMB-BNC 1 m).
