GNDA 03
Ground Adapter 22.9 mm x 68.3 mm
-
-
Receptacle sizes
Short description
The GNDA ground adapter is designed for the adaption of the test board to the (100 x 100) mm recess of the GND 25 ground plane. The test board is placed into the recess of the ground adapter. According to the size of the test board there are four ground adapters to choose from (GNDA 01-04).
Depending on the size of the recess, different pins are available to connect the connection board with the test board. Instead of the ground adapter, a (100 x 100) mm test board can be placed into the GND 25 ground plane.
Technical parameters
| Opening | (22.9 x 68.3) mm |
| Weight | 170 g |
| Sizes (L x W x H) | (103 x 103 x 3) mm |

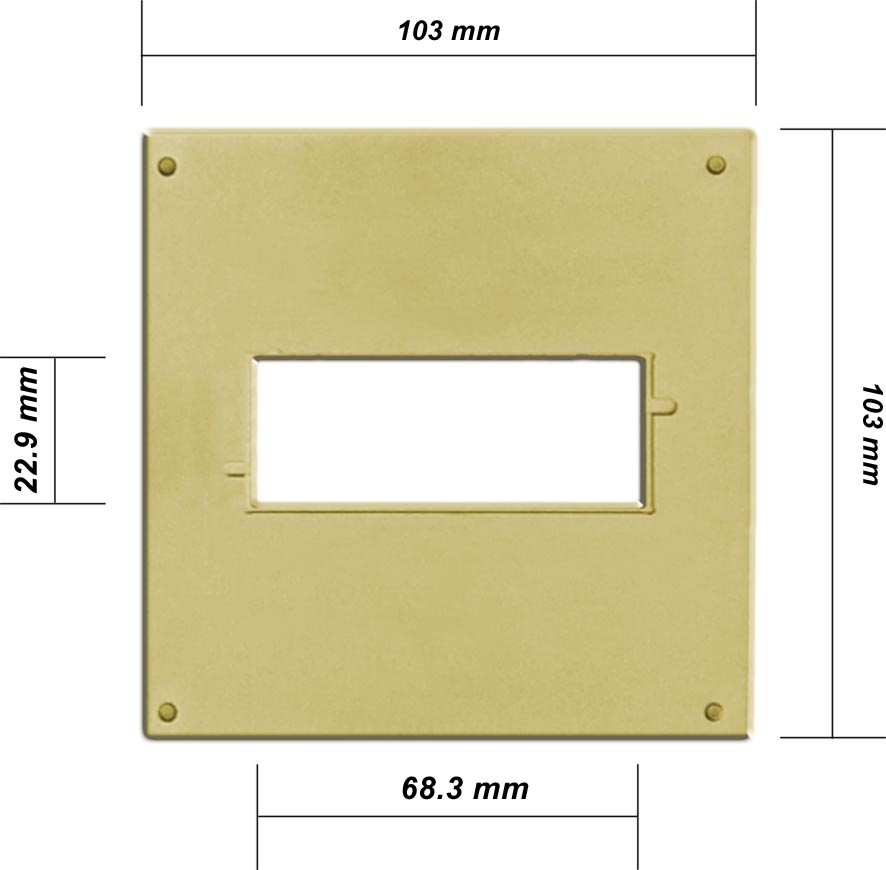

| Design, view 1 |
|
