RF Current Probe 1 Ohm

Send enquiry Datasheet
  • P603-1, RF Current Probe 1 Ohm
  • Application
    Application
P603-1, RF Current Probe 1 Ohm Application
  • P603-1, RF Current Probe 1 Ohm
  • Application
Short description

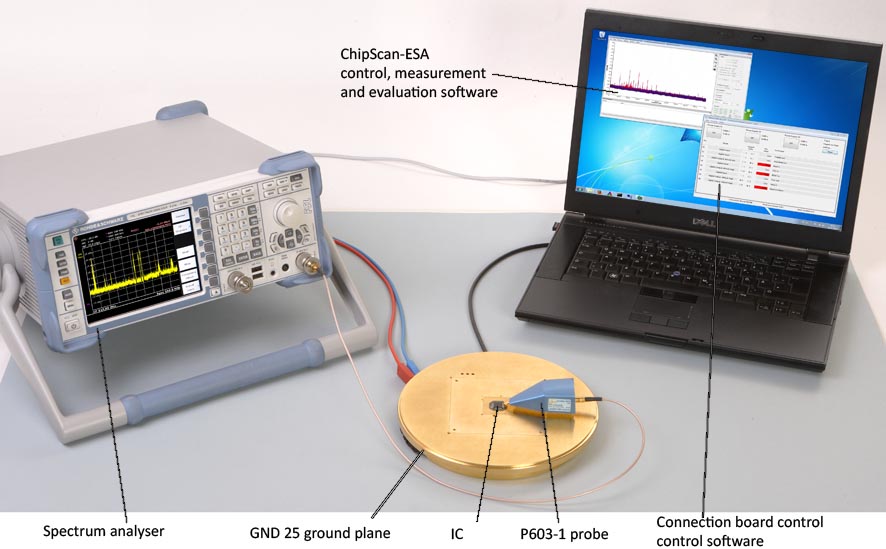

The P603-1 probe is a 1-Ω-probe for direct measurement of high frequency (RF) current at IC pins. It is used to measure at ground pins (Vss) and signal pins. The RF current probe 1 Ohm has a pin contact with which every IC pin can be separately contacted and measured.

Technical parameters
Design, view 1
Frequency range DC ... 3 GHz
Measuring output 50 Ω, SMB
Transfer factor voltage -6 dB
Ammeter /current probe
Shunt 1 Ω
Current correction factor R -6 dBΩ
Inductance 1 nH
Max. power dissipation 2.5 W

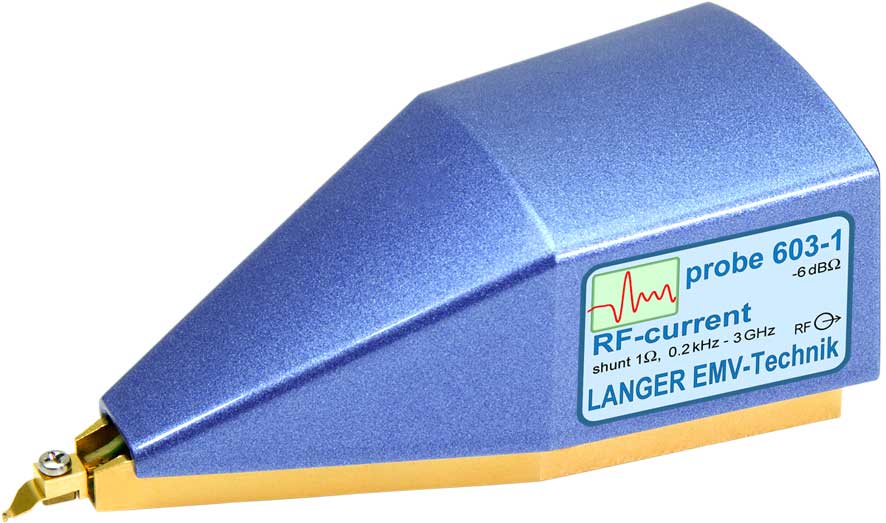

Design, view 1 Design, view 1
