LF-R 50
磁场探头(100KHz-50MHz)
Short description
LF-R 50型磁场探头适用于检测约3cm范围内的组装件、设备或电缆。这种磁场探头会把较大的元件识别为干扰源。

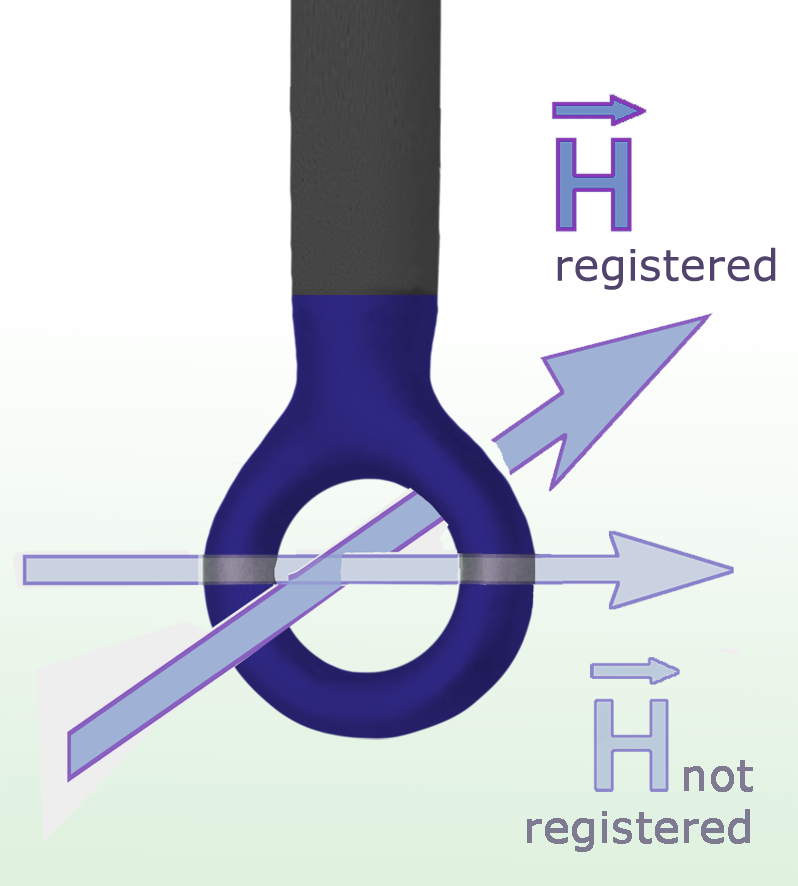

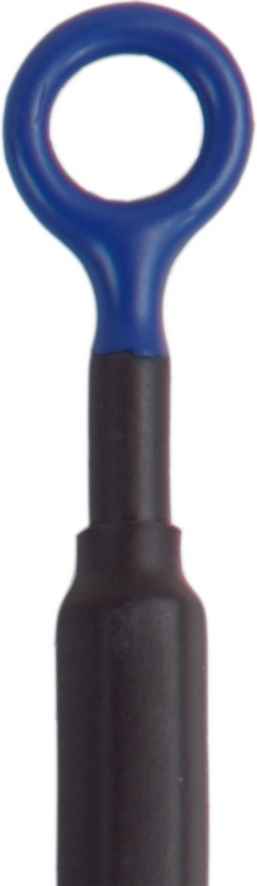

The LF-R 50 is a passive near-field probe.
Due to its diameter, sensitivity, and resolution the LF-R 50 functions between the ranges of the LF-R 400 and LF-R 3 near-field probes.
The near-field probe is small and handy. It has a current attenuating sheath and, therefore, is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. The H-field probe does not have an internal terminating resistance of 50 Ω.
