LF-R 400
磁场探头(100 KHz - 50 MHz)

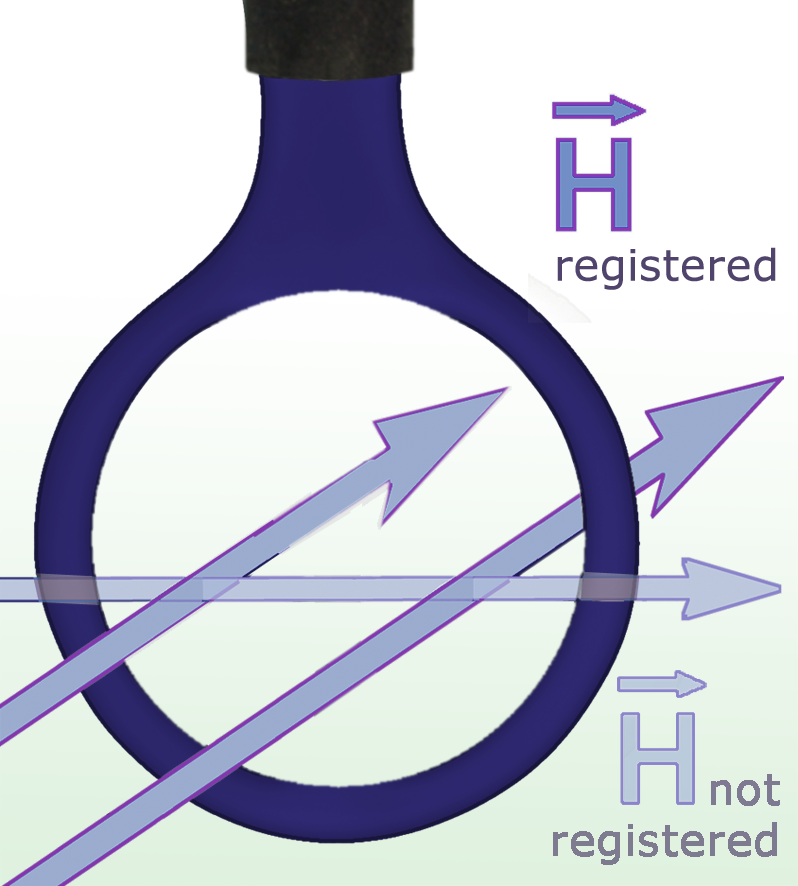

![LF-R 400, 磁场探头(100 KHz - 50 MHz)](/fileadmin/Bilder300/Disturbance emission_near field probe_LF-R 400_function_en_wPZ.png?v=1723643593082)

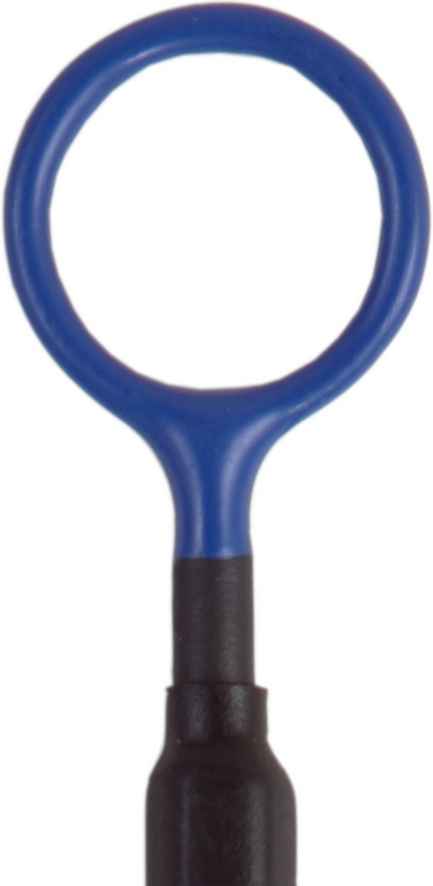

![Probe head](/fileadmin/Bilder300/2014.11.14 Sondenkopf LF-R 400 frei_wPZ.jpg?v=1723643593082)
Short description
LF-R 400型磁场探头,因其直径(25mm)较大而具有很高的灵敏度,适合测量10cm范围以内的集成电路板和设备。
The LF-R 400 is a passive near-field probe. With its large tip diameter (25 mm), it is more sensitive and thus is able to detect a greater area of the magnetic field than the LF-R 50 (10 mm) or LF-R 3 (3 mm) near-field probes, which both have higher resolutions than the LF-R 400. This probe is small and handy. It has a current attenuating sheath and, therefore, is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. The H-field probe does not have an internal terminating resistance of 50 Ω.
