H4-IC set
电快速瞬变脉冲群磁场源组
-
-
Application with BS 06DB-s -
Fischer connector and SHV connector -
Scope of delivery with BS 06DB-s and HV SHV-SMB 1 m cable -
Scope of delivery with BS 06DB-s and HV FI-SMB 1 m cable
![H4-IC set, 电快速瞬变脉冲群磁场源组](/fileadmin/Bilder300/2019.10.07. H4-IC set FI Koffer 999_3 wGM.jpg?v=1725087604442)
![Application with BS 06DB-s](/fileadmin/Bilder300/2015.11.17 BS06DB-s_A Anwendung 0999_4_wPZ.jpg?v=1725087606944)

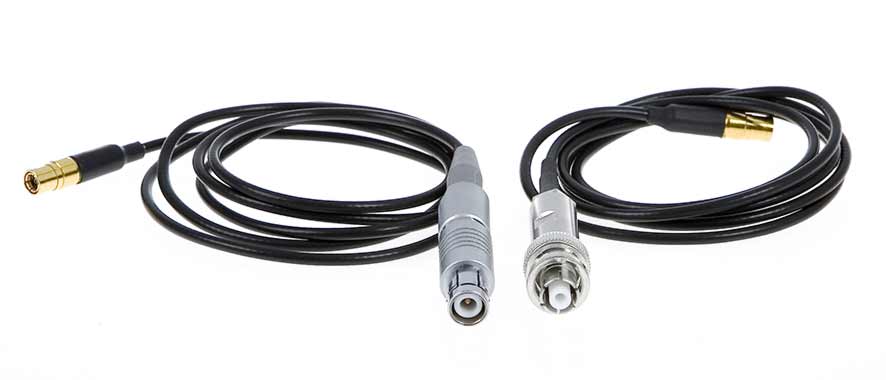

![Fischer connector and SHV connector](/fileadmin/Bilder300/2015.01.20 Fischer connector and SHV connector web.jpg?v=1725087606944)

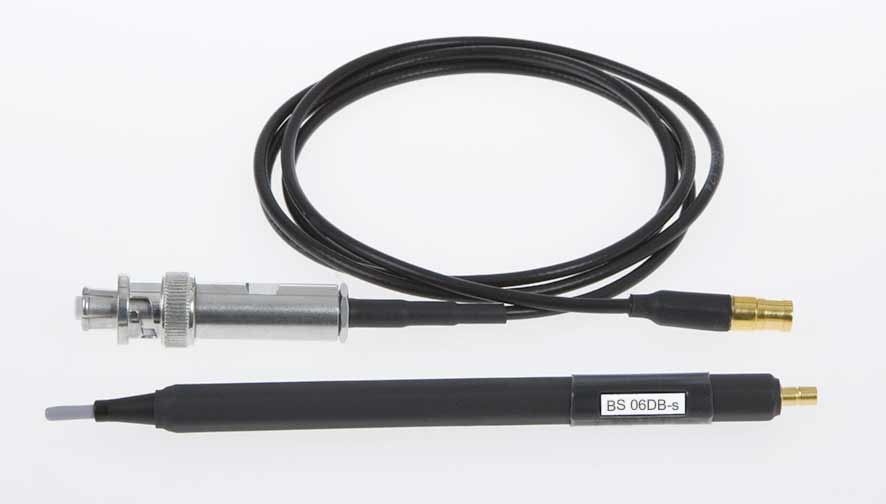

![Scope of delivery with BS 06DB-s and HV SHV-SMB 1 m cable](/fileadmin/Bilder300/2015.01.20 BS 06DB-s set scope of delivery with HV SHV-SMB cable web.jpg?v=1725087606944)

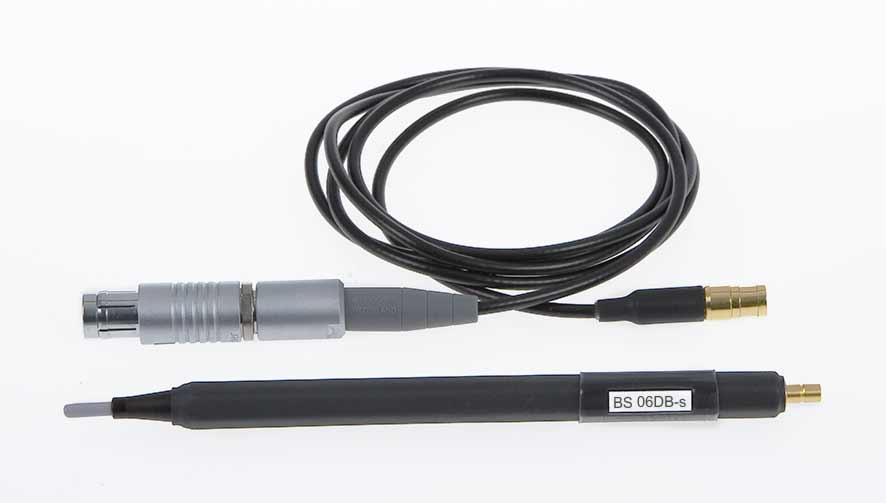

![Scope of delivery with BS 06DB-s and HV FI-SMB 1 m cable](/fileadmin/Bilder300/2015.01.20 BS 06DB-s set scope of delivery with HV FI-SMB web.jpg?v=1725087606944)
Short description
BS 06DB-s型磁场源用于生成电快速瞬变脉冲群磁场。通过一根高压电缆和电快速瞬变脉冲群发生器(IEC 61000-4-4),将电快速瞬变脉冲群电流信号注入到该场源,能够产生极小面积(2.54 mm²)的高强磁场(约 200mT),因此特别适合向IC进行场耦合。该场源既可用于扫描仪,也可用于手持操作。标准配置中还包括一根连接电缆,两端分别为 SMB(SMB 场源输出端)和 Fischer插头 S103A023。
Delivery content
- 1x BS 06DB-s, 电快速瞬变脉冲群IC-磁场源
- 1x HV SHV-SMB 1 m
- 1x H4-IC case
- 1x H4-IC m
Recommended products
Technical parameters
BS 06DB-s 电快速瞬变脉冲群磁场源 | |
频率范围 | 0...66 MHz |
分辨率 | 2.54 mm² |
生成的磁场磁感应强度 | 2.37 mT/A |
探头尺寸 | Ø 1.8 mm |
生成的最大磁感应强度 | 200 mT |
输出接口 | SMB, female, jack |
4 kV |
