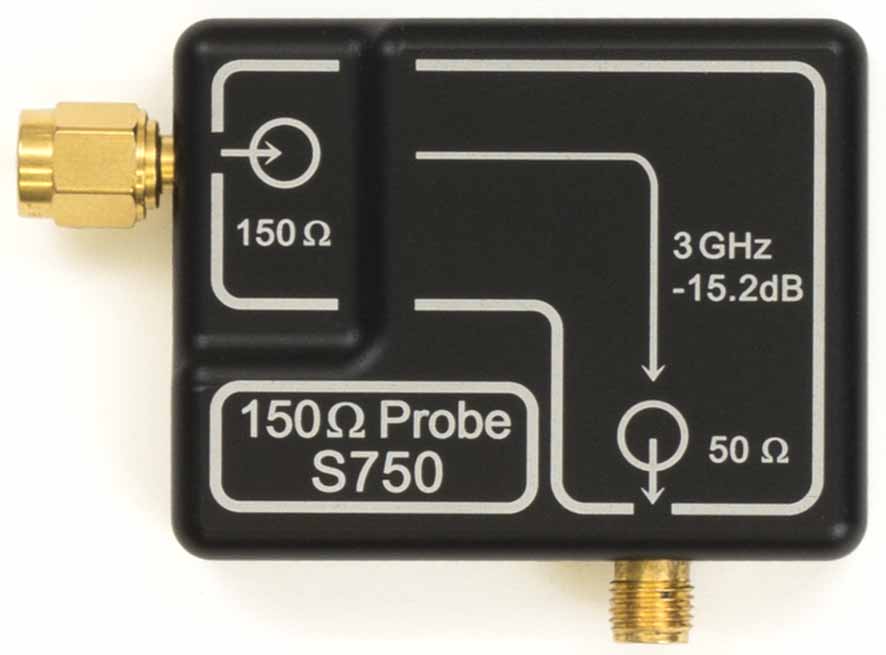

S750
150Ω高频电压表 SMA
Short description
P750 高频电压表带有150Ω的耦合电路，它根据IEC 61967-4测量集成电路引脚的高频电压。P750探头具备高阻抗的电容耦合输入，因此能够测量受测物上不同引脚的射频电压。
By means of a SMA connection, the S750 probe can be easily connected to the IC test board.
The S750 probe is designed for measuring on signal lines.
Technical parameters
| 频率范围 | 100 kHz ... 3 GHz |
| 输入电阻 | 145 Ω |
| Adjustment Resistance | 51 Ω |
| Transfer factor voltage Uout / Uin | -15.2 dB |
| 最大直流输入电压 | 50 V |
| 最大射频输入电压 | 3.5 V |
| Connectors | 50 Ω, SMA |
| 重量 | 39 g |
| 尺寸 (L x W x H) | (60 x 45 x 14) mm |
